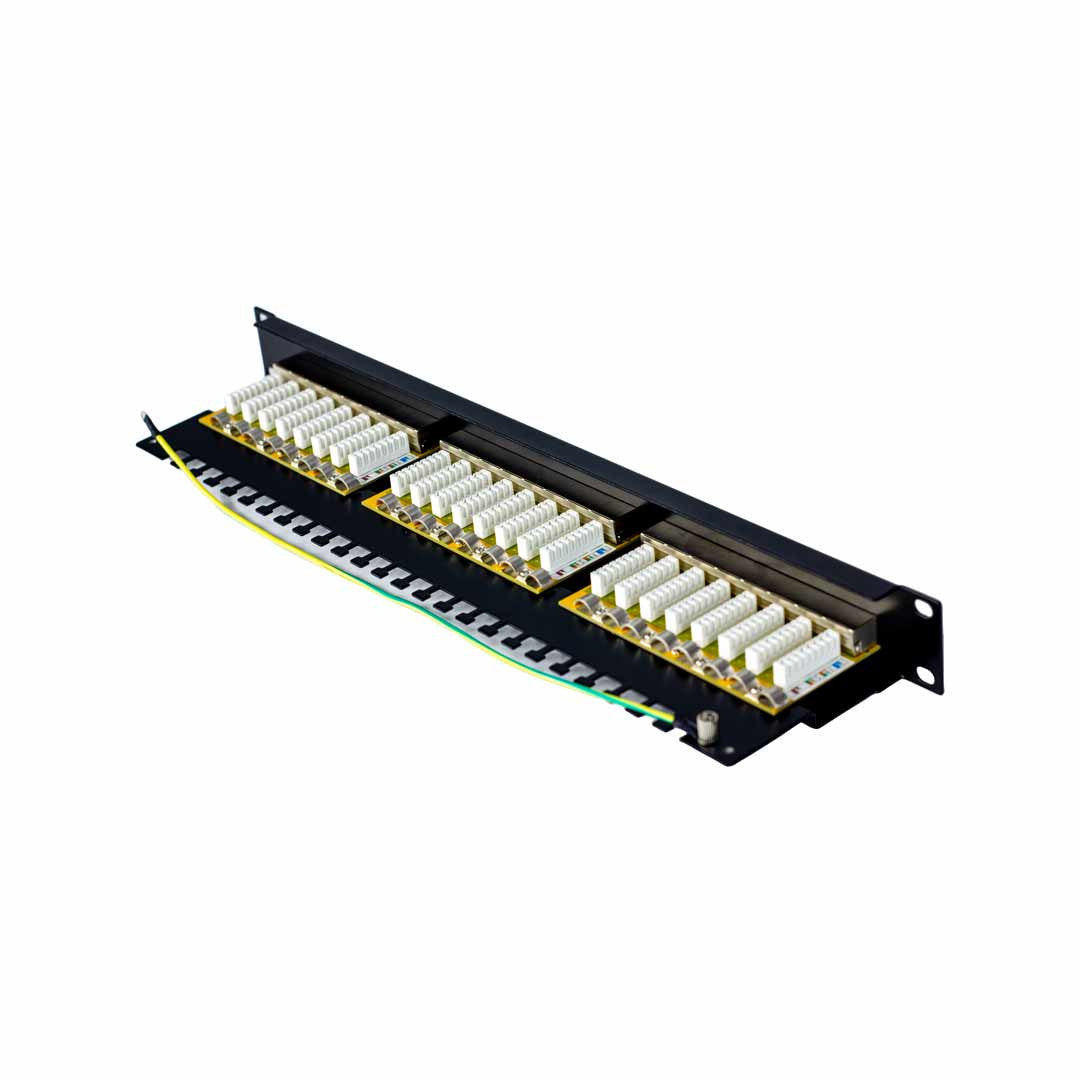

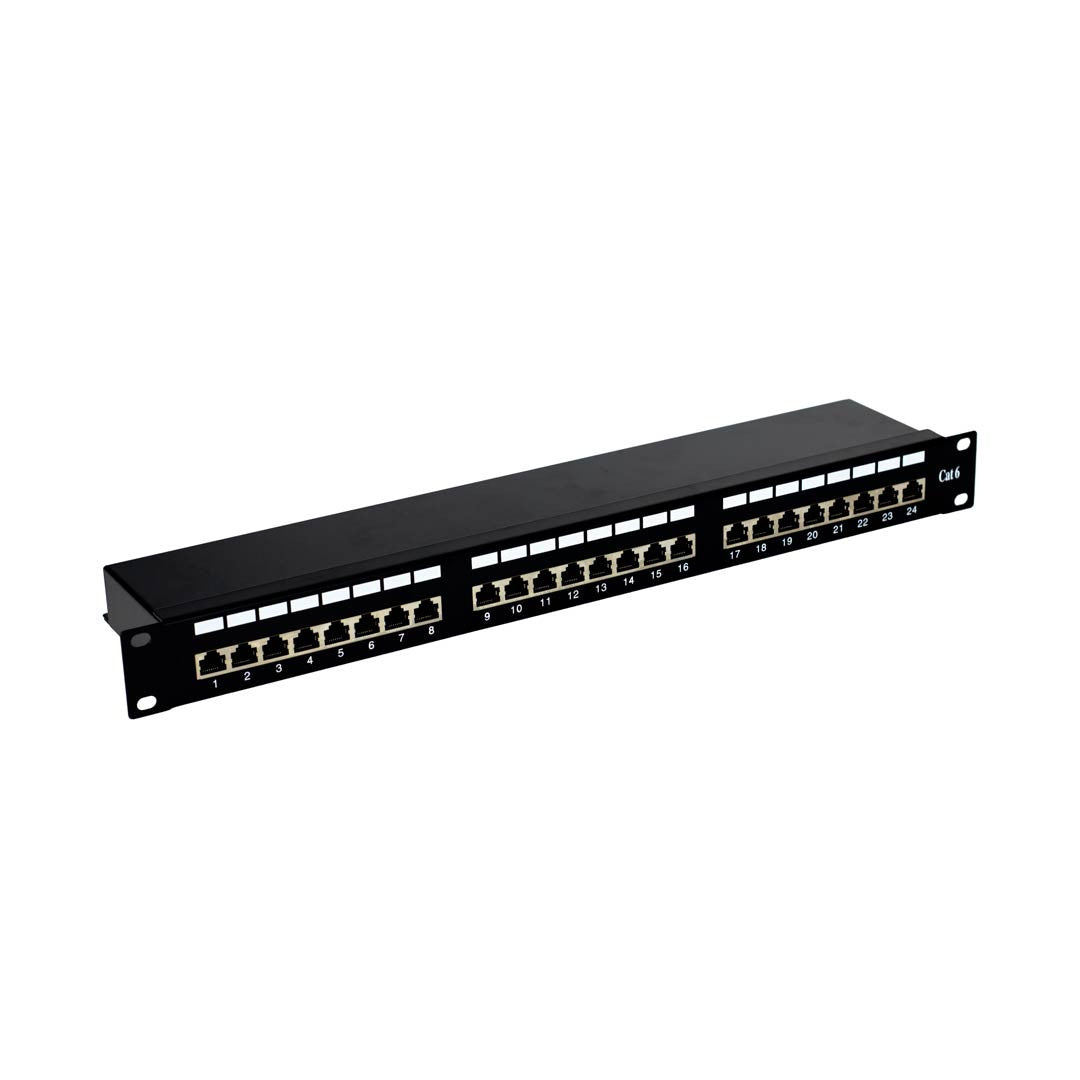

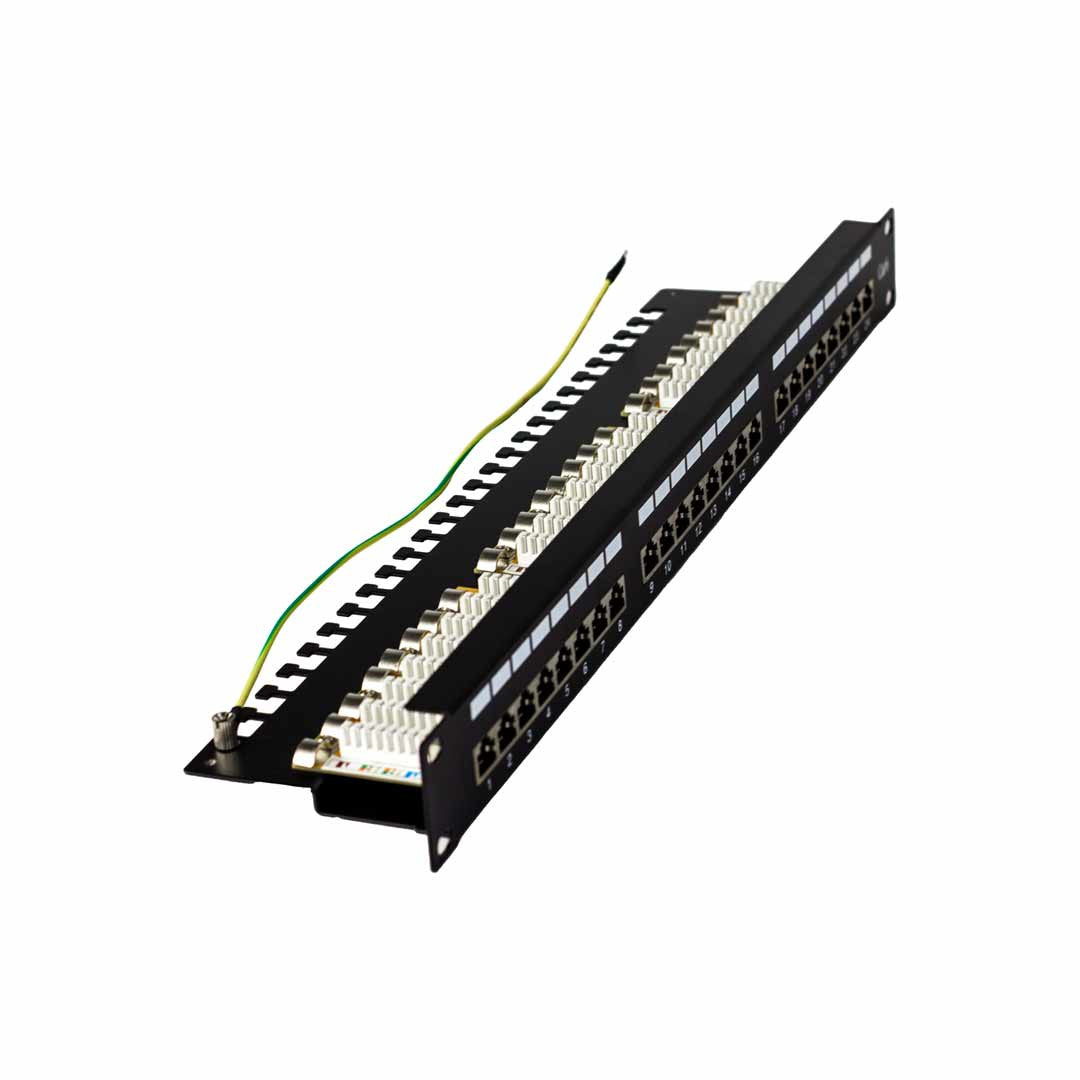

Iuron 24 Port Cat6e FTP Patch Panel

PRODUCT TITLE

Iuron 24 Port Cat6e FTP Patch Panel

PRODUCT OVERVIEW

The IU-PP-24-6e-F is a high-performance 24-port Cat6e FTP patch panel, designed to meet the rigorous demands of modern network environments. Certified for 550MHz Cat6, it is ideal for Ethernet, Fast Ethernet, and Copper Gigabit Ethernet (1000Base-T) applications. This patch panel ensures reliable connections with gold-plated contacts and is compliant with ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 standards. The color-coded labeling for T568A and T568B wiring schemes and numbered ports facilitate quick and easy installation.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Cable

KEY FEATURES

• High Certification: Certified for 550MHz Cat6, perfect for Copper 10-Gigabit Ethernet connections.
• Wide Compatibility: Ideal for Ethernet, Fast Ethernet, and Copper Gigabit Ethernet (1000Base-T) network applications.
• Standards Compliance: Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 standards.
• Gold-Plated Contacts: Ensure a solid and reliable connection.
• Color-Coded Labeling: Facilitates quick and easy installation with T568A and T568B wiring schemes.
• Versatile Termination: New version 110D IDC type terminal blocks, compatible with 110 or Krone type tools.
• Robust Construction: Heavy-duty metal construction suitable for 19” cabinets, racks, and wall-mount brackets with a standard 2U size (3.5”).
• Data Centers: Suitable for high-density data center environments.
• Telecommunications Rooms: Ideal for organizing and managing network cables in telecom rooms.
• Enterprise Networks: Perfect for enterprise network applications requiring high-speed data transfer.
• Home Networks: Ensures reliable network connections in home networking setups.
• Standards Compliance: Meets TIA/EIA-568-A, TIA/EIA-568-B, TIA/EIA TSB-40, ISO/IEC 11801 requirements.
• Angle: 180-degree angle type (horizontal).
• Termination Types: 110, KRONE, DUAL types (compatible with 3 types).
• Electrical Standards: Compliant with UL 1863.
• Current Rating: 1.5 Amp Max.
• Voltage Rating: 150 Volts.
• Contact Resistance: 20 mΩ.

TECHNICAL SPECIFICATIONS

• Brand: Iuron
• Model: IU-PP-24-6e-F
• Product Type: Networking Cable
• High Certification: Certified for 550MHz Cat6, perfect for Copper 10-Gigabit Ethernet connections.
• Wide Compatibility: Ideal for Ethernet, Fast Ethernet, and Copper Gigabit Ethernet (1000Base-T) network applications.
• Standards Compliance: Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 standards.
• Gold-Plated Contacts: Ensure a solid and reliable connection.
• Color-Coded Labeling: Facilitates quick and easy installation with T568A and T568B wiring schemes.
• Versatile Termination: New version 110D IDC type terminal blocks, compatible with 110 or Krone type tools.
• Robust Construction: Heavy-duty metal construction suitable for 19” cabinets, racks, and wall-mount brackets with a standard 2U size (3.5”).
• Data Centers: Suitable for high-density data center environments.
• Telecommunications Rooms: Ideal for organizing and managing network cables in telecom rooms.
• Enterprise Networks: Perfect for enterprise network applications requiring high-speed data transfer.
• Home Networks: Ensures reliable network connections in home networking setups.
• Standards Compliance: Meets TIA/EIA-568-A, TIA/EIA-568-B, TIA/EIA TSB-40, ISO/IEC 11801 requirements.
• Angle: 180-degree angle type (horizontal).
• Termination Types: 110, KRONE, DUAL types (compatible with 3 types).
• Electrical Standards: Compliant with UL 1863.
• Current Rating: 1.5 Amp Max.
• Voltage Rating: 150 Volts.
• Contact Resistance: 20 mΩ.
• Insulation Resistance: 500MΩ.
• Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz for 1 minute.
• Materials: Housing: PC UL94V-0.
• IDC: PC UL94V-0, accepts 22-26 AWG solid wire.
• PCB: FR4 1.6mm (0.04') thickness, 2 layers.
• Contacts: PC UL94V-0, 0.45mm (0.018') diameter phosphor bronze with 3 μ' to 50 μ' gold plating on contact area.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
