IURON IU-TL-140086 Longitudinal Cable Sheath Slitter, 6 to 25 mm Cables

Part number / SKU
IU-TL-140086

$64.58

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

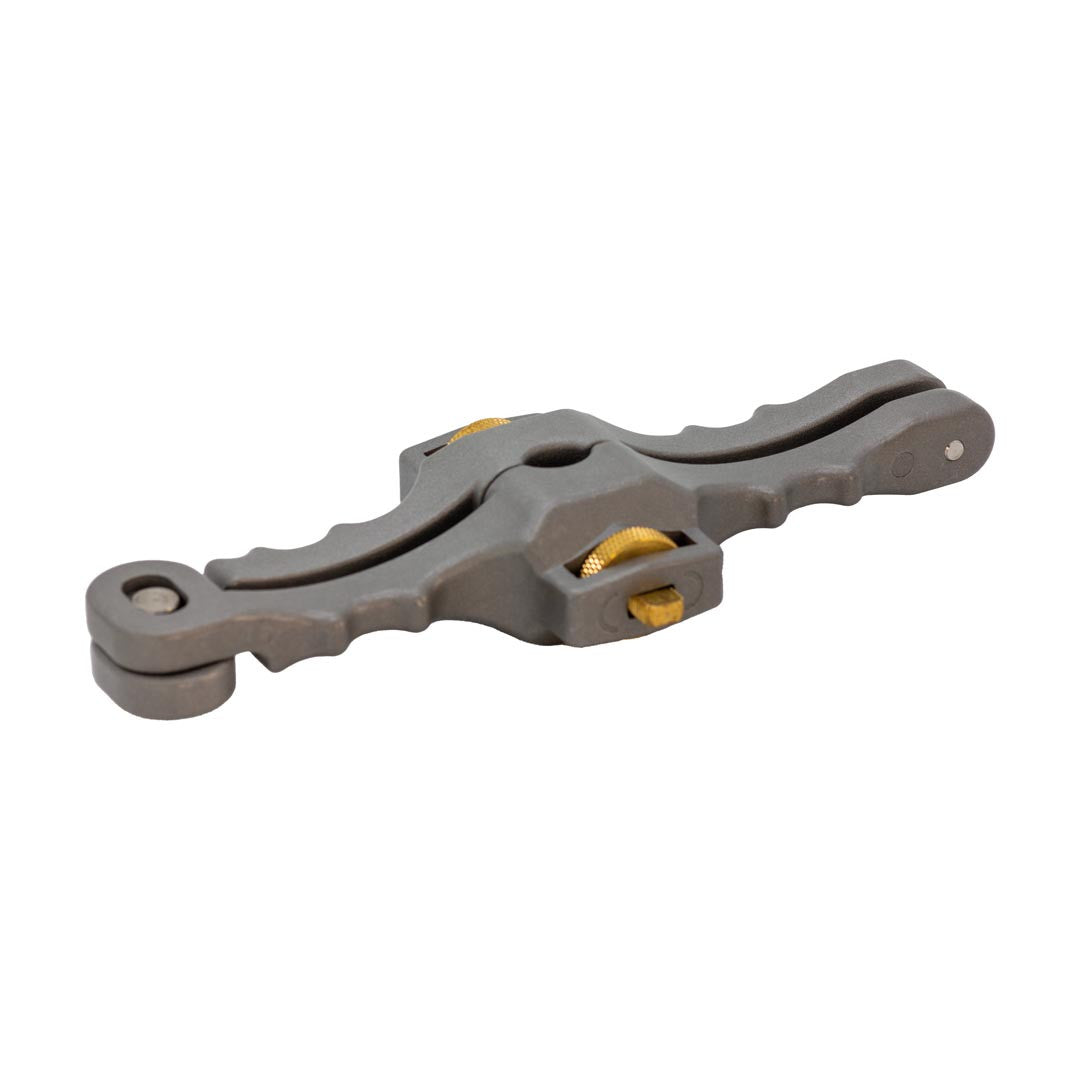

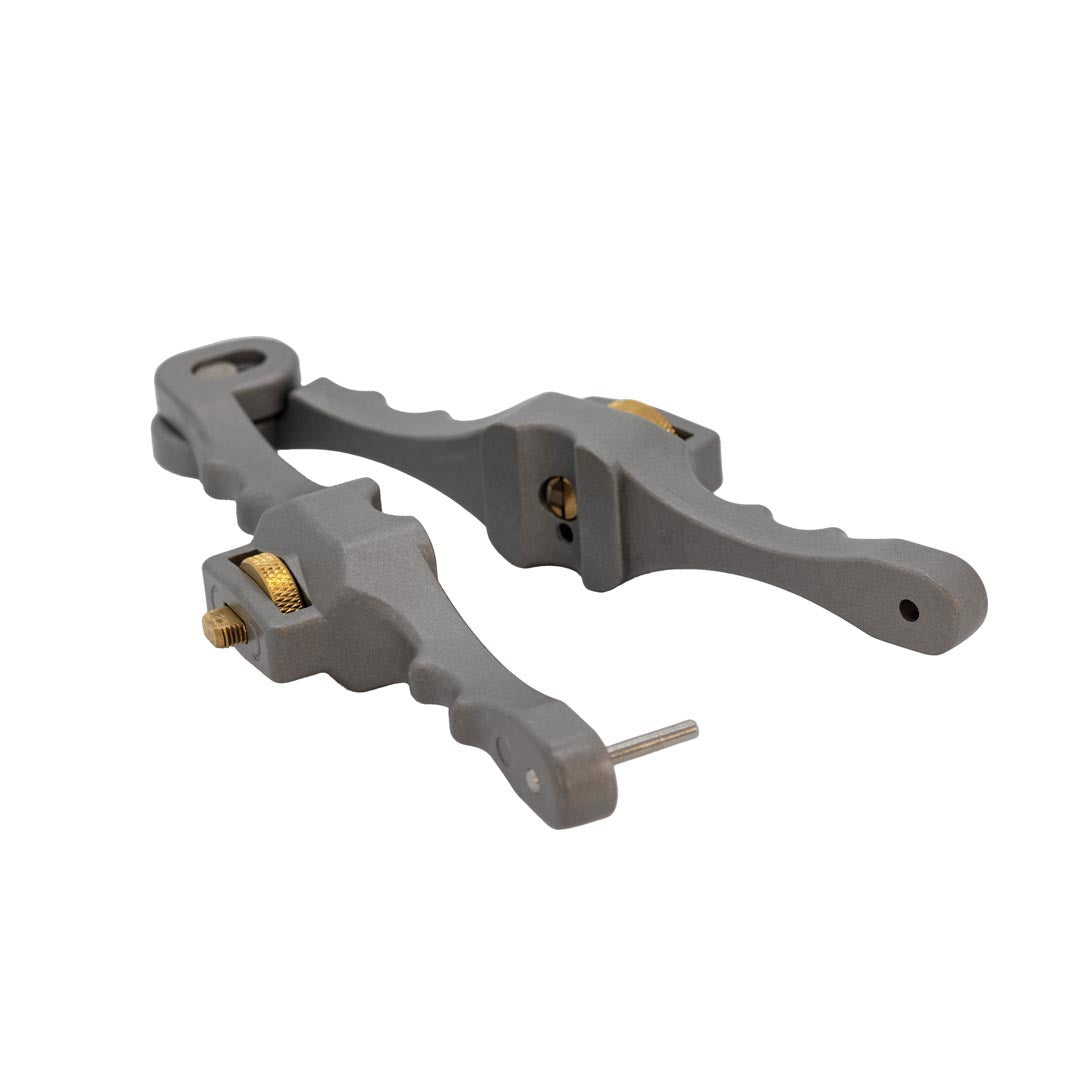

The IURON IU-TL-140086 is a longitudinal sheath slitter that cuts the outer sheath of loose tube and ribbon fiber optic cables lengthwise without damaging the fibers inside.

It takes cables from 6 to 12 mm as standard and 12 to 25 mm with the optional range. The body is aluminum alloy with a 40 mm metal blade; it measures 210 x 34 x 30 mm and weighs 412.1 g.

  • Best for: opening the sheath of loose tube and ribbon fiber cables before splicing in closures and enclosures.
  • System fit: loose tube and ribbon type fiber optic cables, 6 to 25 mm diameter.
  • Important to know: the standard range is 6 to 12 mm; the 12 to 25 mm range is listed as optional.

Why teams choose it

Built for reliable networks

  • Wide cable range

    6 to 12 mm standard, 12 to 25 mm optional.

  • Clean cuts

    removes sheath without harming fibers.

  • Light alloy body

    aluminum alloy, 412.1 g.

  • 40 mm blade

    metal blade for long slits.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUIU-TL-140086
General
Brand IURON
Model IU-TL-140086
Device Type Longitudinal cable sheath slitter
Physical
Cable Diameter, Standard 6 to 12 mm
Cable Diameter, Optional 12 to 25 mm
Cable Types Loose tube, ribbon
Blade Size 40 mm
Material Aluminum alloy
Color Silver
Dimensions 210 x 34 x 30 mm
Weight 412.1 g
