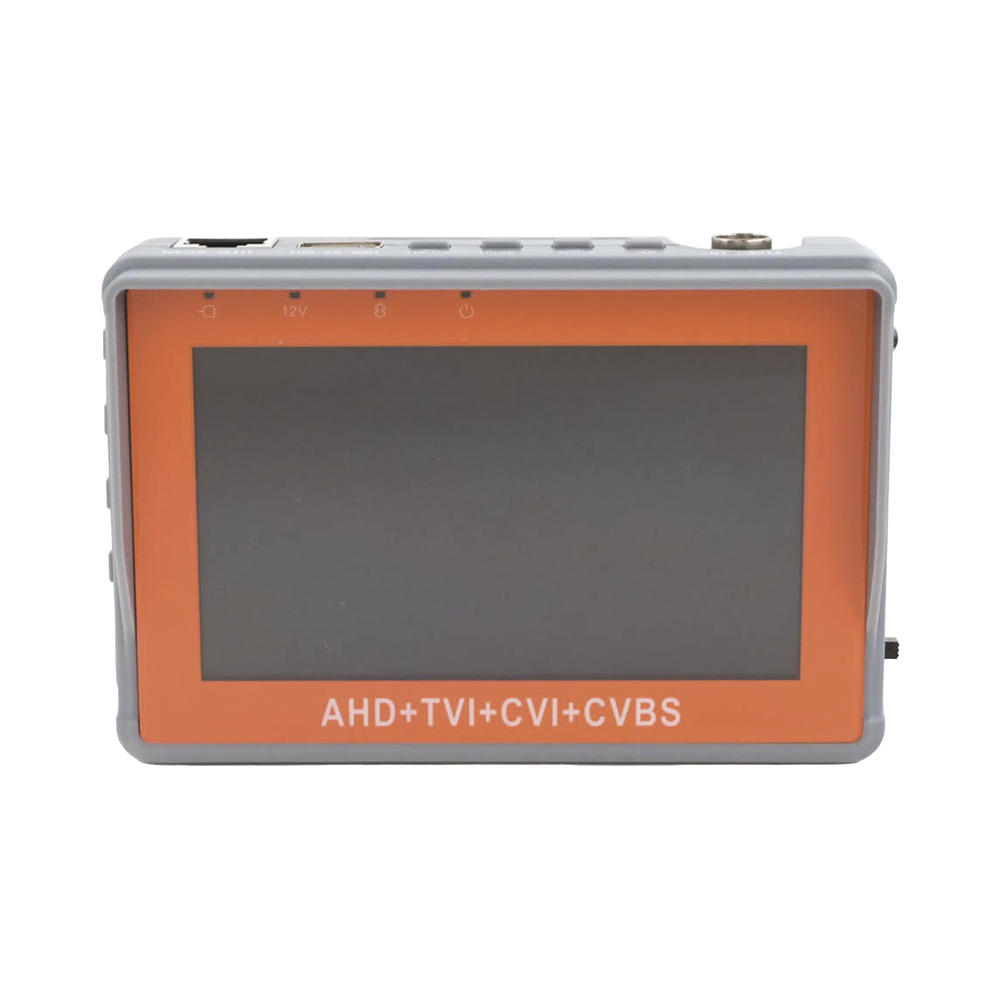

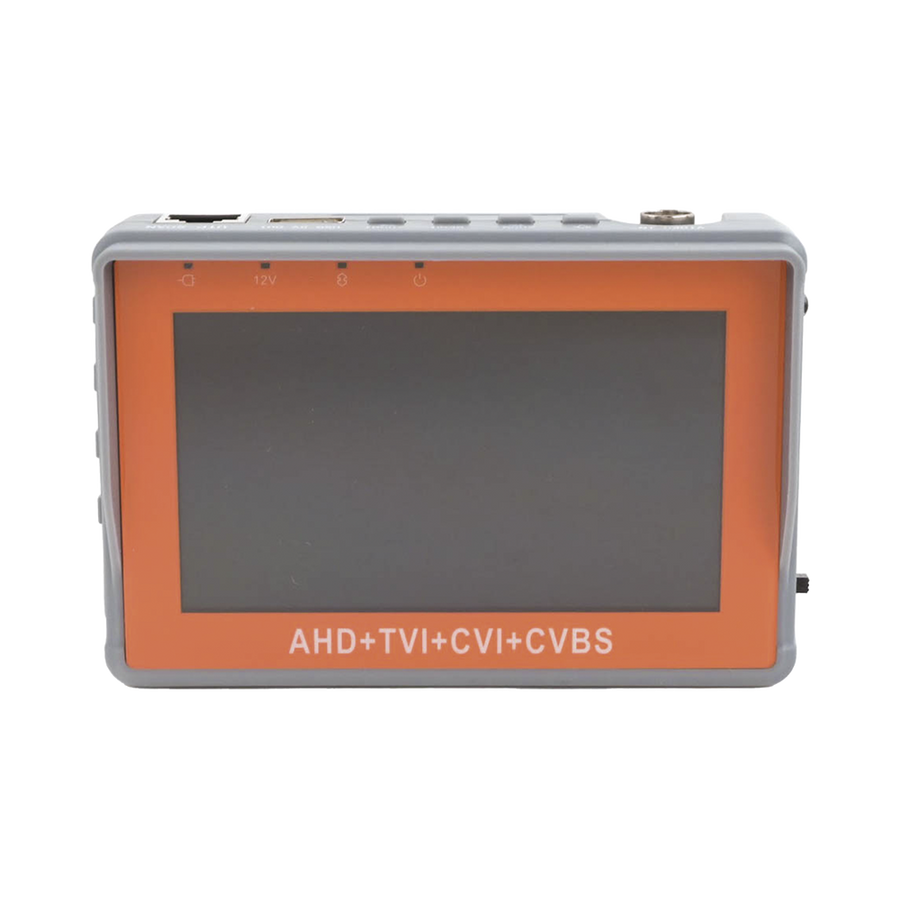

Syscom IV7WTEST-V2 Video Tester HD-TVI 5MP, HD-CVI 5MP, AHD 5MP and CVBS

The new HD coaxial camera tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD and CVI. It also provides many useful functions, such as video display, PTZ Control over Coax, PTZ control(RS485), DC12V output power, audio test, LED lamp etc.

Product Functions

● HD coaxial camera testing

● PTZ Control over Coax or RS485 protocol.

The Tester built-in Pelco-D / P PTZ control protocol, etc., through its own RS485 interface.

● DC12V output power

● Audio testing

● CVBS, TVI, AHD & CVI camera testing

● Enhanced UTP cable testing

By UTP CABLE TEST port on the meter, you can test the connection of network cable.

● LED lamp

● The battery graphic display

The tester has advanced power control and protection circuit, low-power energy saving, 4 to 5 hours on a single charge. Normally it can be used for 5 hours.

Product Accessories

● HD coaxial camera tester

● Adapter DC5V 1A（with micro USB cable）

● International Standard 18650 2600ma battery

● BNC cable

● RS485 connector

● Power output conversion cable

● Audio cable

● Wrist band

● Instruction Manual

Key Features

• Real-Time Video Monitoring With 4 Inch LCD Display
• Supports Multiple HD Protocols up to 5MP Resolution
• PTZ Control and Coaxitron Communication for Professional Cameras
• Built-In 2600mAh 18650 Battery With USB Charging Port
• Compact Wrist-Mounted Design for Field Service Applications
• RS485 Support With Multiple Baud Rates up to 14400
