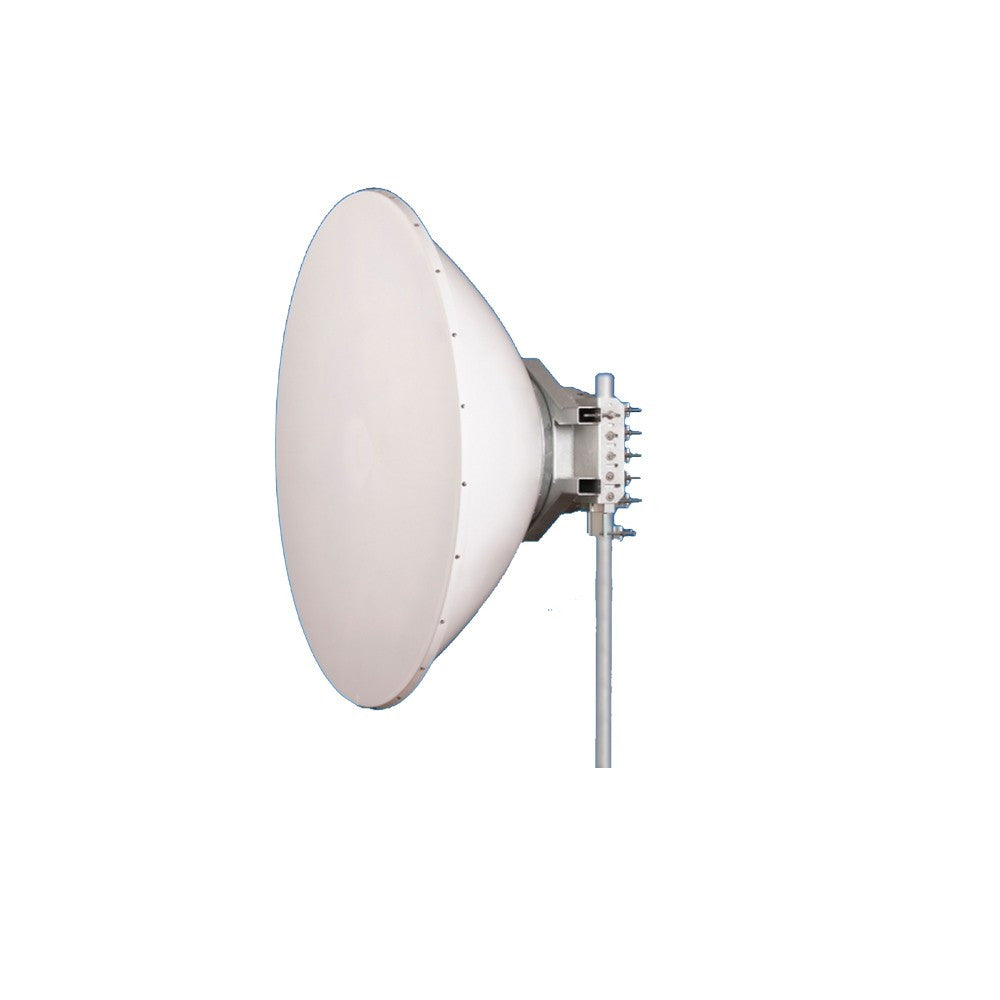

Jirous JRMC-1800-10/11Ra 1800mm Parabolic Dish Antenna 43-44 dBi
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Deep reflector dish with great resistance to interference and high mechanical strength
PRODUCT TYPE
Antennas (Networking)
KEY FEATURES
• Deep reflector dish with great resistance to interference and high mechanical strength
• High neighboring links isolation
• Radom included
• Massive bracket with accurate elevation and azimuth setting
• Right and left side mounting
• Strong wind stability
• Frequency range: 10.0 - 12.0 GHz
• Gain - Low band: 43.0 ±1 dBi
• Gain - High band: 44.0 ±1 dBi
• Return loss: ≤ 15 dB10.3 - 11.7 GHz
• Front to back ratio: ≥ 69 dB
• Beamwidth -3 dB: 1.0°
• ETSI standard: EN 302-217-4-2 Class 3
• FCC standard: US FCC part 101A (10.55 - 11,70 GHz)
• ACMA - RALI FX3: Grade B
• Polarization: linear, vertical/horizontal
• Parabola: ø 1800 mm - Aluminium alloy
• Radome: UV resistant composite material
TECHNICAL SPECIFICATIONS
• Brand: Jirous
• Model: JRMC-1800-10/11Ra
• Product Type: Antennas (Networking)
• Deep reflector dish with great resistance to interference and high mechanical strength
• High neighboring links isolation
• Radom included
• Massive bracket with accurate elevation and azimuth setting
• Right and left side mounting
• Strong wind stability
• Frequency range: 10.0 - 12.0 GHz
• Gain - Low band: 43.0 ±1 dBi
• Gain - High band: 44.0 ±1 dBi
• Return loss: ≤ 15 dB10.3 - 11.7 GHz
• Front to back ratio: ≥ 69 dB
• Beamwidth -3 dB: 1.0°
• ETSI standard: EN 302-217-4-2 Class 3
• FCC standard: US FCC part 101A (10.55 - 11,70 GHz)
• ACMA - RALI FX3: Grade B
• Polarization: linear, vertical/horizontal
• Parabola: ø 1800 mm - Aluminium alloy
• Radome: UV resistant composite material
• Input/output: waveguide ø 19 mm
• Installation on mast: ø 70 - 120 mm
• Operating wind load: max. 140 km/h
• Survival wind load: max. 210 km/h
• Weight of antenna: 82 kg (180 lbs)
INTENDED USE / APPLICATIONS
• Outdoor wireless networking links
• Point-to-point or point-to-multipoint deployments
• Pole, mast, or tower installations where compatible
