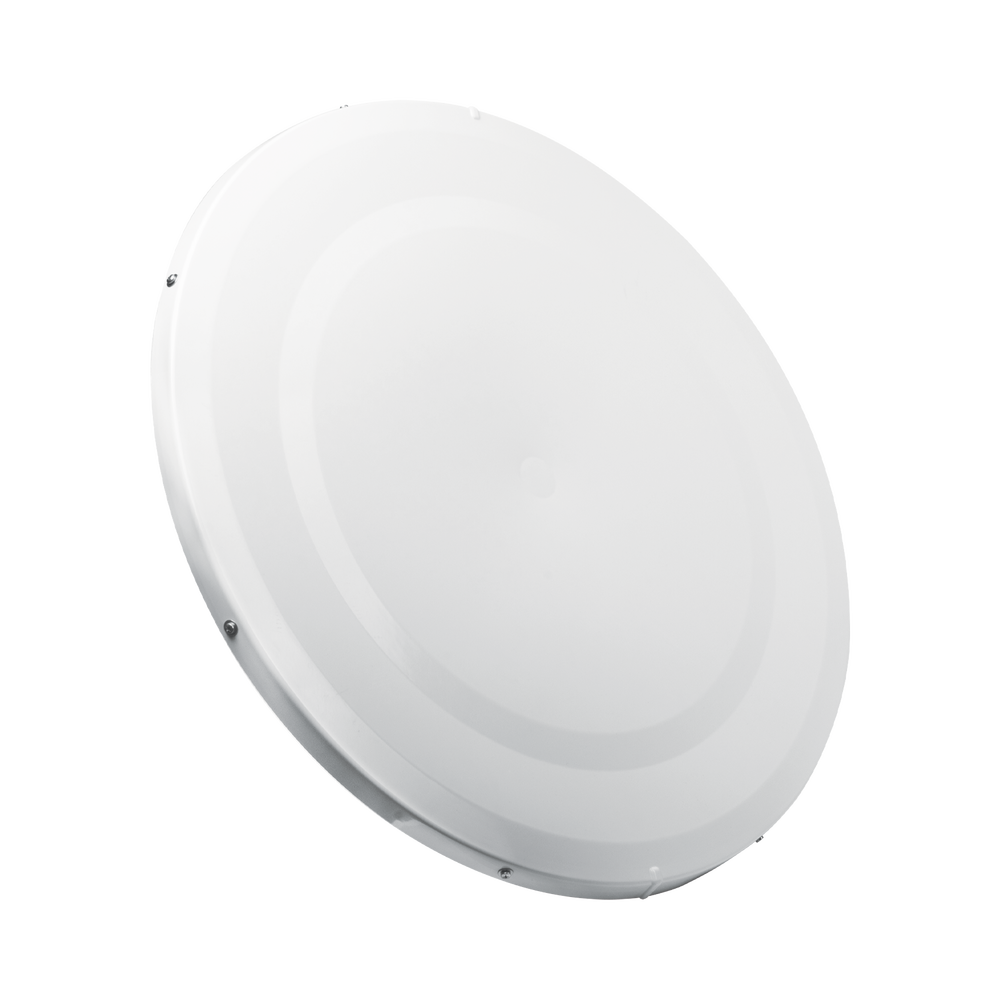

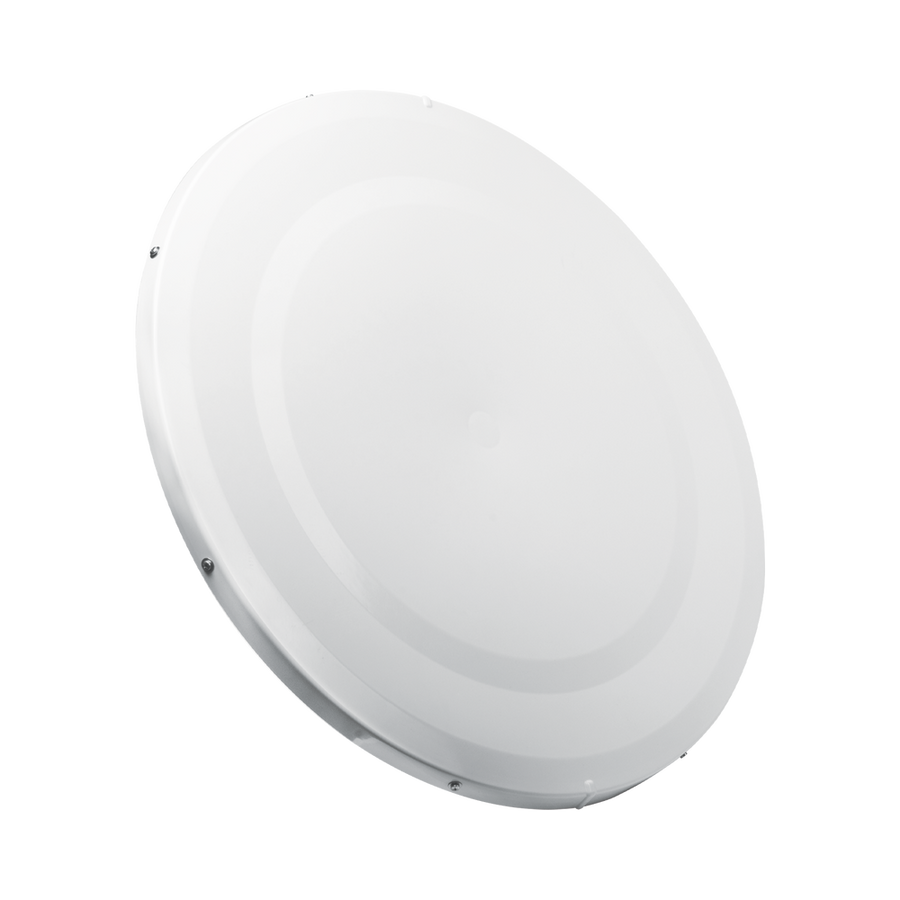

Jirous JRMB-900-6-MIMO 32.3 dBi Parabolic Microwave Antenna 6 GHz
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Antenna JRMB–900–6-MIMO is designed for microwave links at the frequency band 6 GHz. It has a deep reflector dish and a massive holder which allows precise adjustment in both directions. The whole antenna system with bracket JDMW-900 has extreme wind stability.
Dual-polarized parabolic antenna JRMB-900-6-MIMO is designed for microwave links at the 6 GHz frequency band. It has a deep reflector dish and a massive holder.
Description
- Professional microwave antenna
- Includes radome
- Deep parabola with great resistance to interference and high mechanical strength
- Massive bracket JDMW-900 with fine setting elevation and azimuth
- High isolation between neighbor links
- Possibility to mount to right and left side
Technical Specifications
- Frequency range: 5.9 – 6.6 GHz.
- Gain: 32.3 ± 0.6 dBi.
- Beamwidth -3dB: 3.4 °.
- Electrical Compliance: ETSI EN 302-217-4-2 class 2
- Polarization: Horizontal and Vertical.
- Isolation between connectors: ≥ 30 dB
- VSWR: <1.5
- Connectors: RP-SMA (x2).
- Diameter: 0.9 m (3 ft).
- Cover: UV steady plastic ABS
- Installation on mast: ø 40 - 120 mm
- Front to Back Ratio (F/B): ≥ 47 dB.
- Weight of antenna: 9.2 kg (20.3 lbs).
- Weight of holder: 3.5 kg (7.7 lbs).
- Operating wind load: 140 km/h.
- Survival wind load: 210 km/h.
The antenna is supplied together with a holder that allows easy mounting on a mast. The holder can be installed separately on the mast. Subsequently, you can simply hang up the antenna with a microwave unit into it. Holder allows precise adjustment in both directions. Mounting to the right or left side is possible.
Key Features
- Dual Vertical/Horizontal Polarization for MIMO Systems
- Operational Wind Resistance up to 87 mph
- Survival Wind Speed Rating of 130 mph
- High-Quality Construction for Harsh Environments
- Ideal for Point-to-Point Links up to 62 miles
- Includes Radome for Easy Installation and Protection
