JIROUS

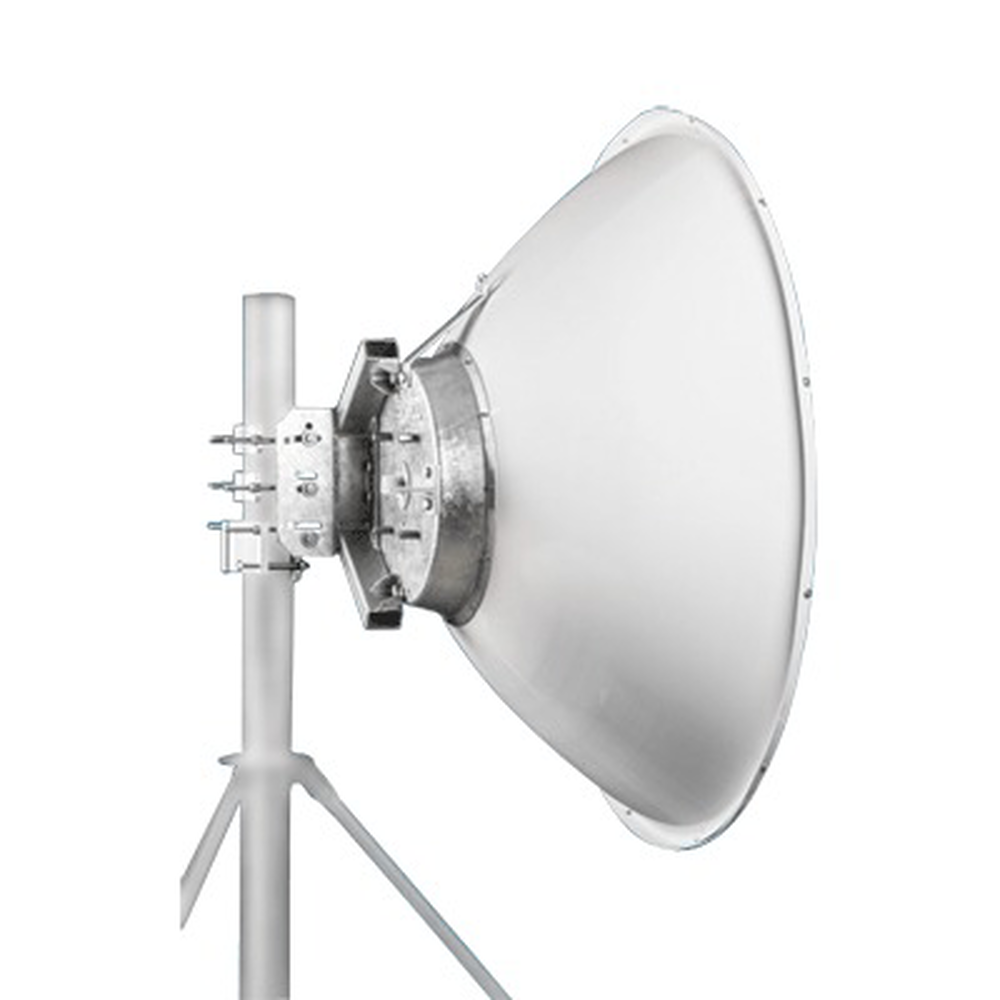

Jirous JRMD120010/11RA 40.5 dBi Microwave Dish Antenna 10-12 GHz for Mimosa B11
Product identifier
SKU
JRMD120010/11RA
$901.38
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Microwave antenna 10.1 - 11.7 GHz for Mimosa Networks’ B11 radio
Technical Features:
-Frequency range: 10.0 ~ 12 GHz.
-Gain in low frequency 39.5 dBi.
-Gain high frequency 40.5 dBi.
-VSWR: ≥ 16 dB.
-Beamwidth: -3 dB, 3° ± 0.5°
-Polarization: Linear, vertical and horizontal.
-Diameter: 26.77" (680 mm).
-Weight: 5.5 Kg. (12.1 lbs).
-Circle waveguide for B11 radio of Mimosa Networks.
PRODUCT IN SPECIAL ORDER ONLY
Key Features
- Designed for B11 and AF11 Microwave Radio Links
- Waveguide Connector Eliminates Coaxial Cable Requirements
- Deep Dish Reflector Design for Superior Signal Focus
- High 60.5 dB Front-to-Back Ratio for Noise Isolation
- Stainless Steel Mounting Hardware Included for Durability
- Precision Engineering for Licensed Spectrum Reliability
