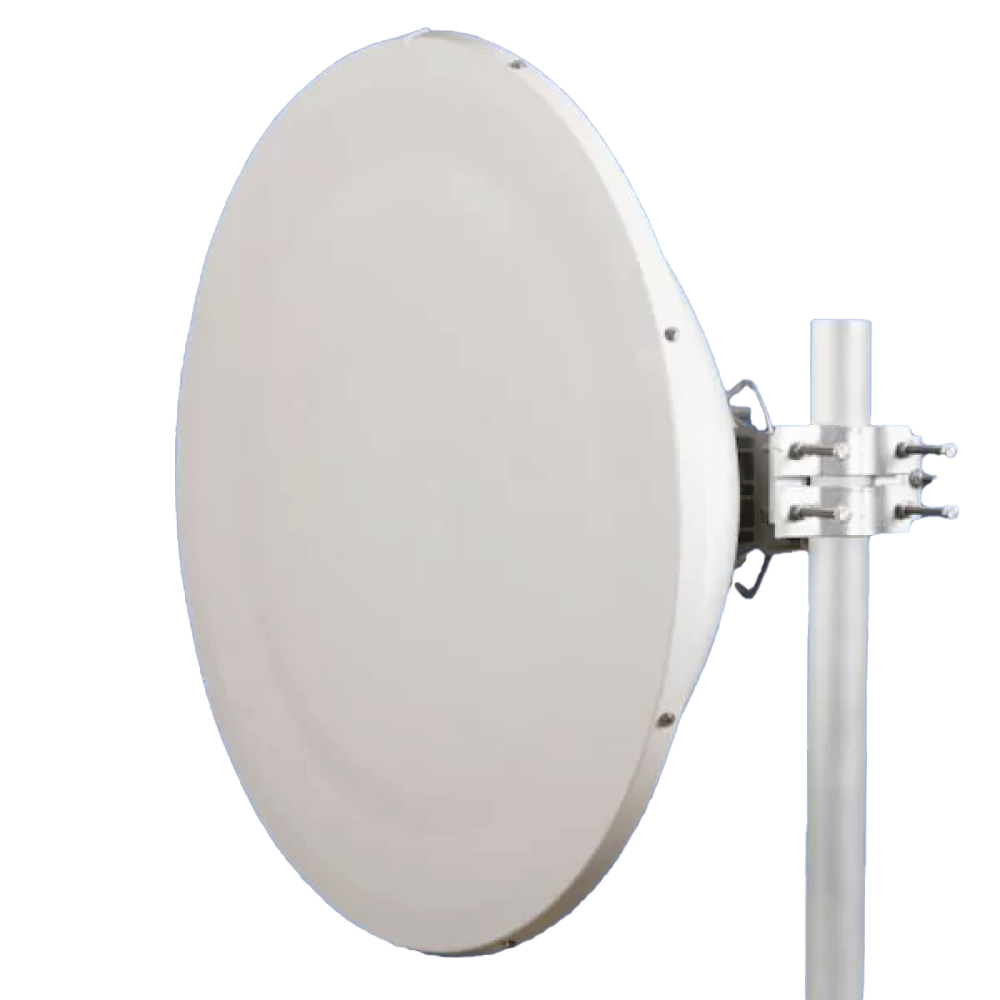

Jirous JRMD90010/11RA Dish Antenna for B11 Radio, Circular Connector, 10.1 ~ 11.7 GHz, 2.95 ft (0.9 m) Diameter

JIROUS

Jirous JRMD90010/11RA 37.5dBi Microwave Dish Antenna 10.1-11.7GHz B11/AF11

Product identifier
SKU JRMD90010/11RA
$758.74
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Specifications

10.1 - 11.7 GHz Microwave Antenna for Mimosa Networks B11 or Ubiquiti Networks AF11 Series Radios

Technical Specifications:

- Frequency range: 10.1 to 11.7 GHz

- Front to Back ≥ 57 dB

- Gain at 10.1 GHz: 37 dBi

- Gain at 11.7 GHz: 37.5 dBi

- Beamwidth: -3 dB, 2.3°

- Polarization: Vertical/Horizontal
- Diameter: 0.9 m
- Weight: 11.9 kg (26.23 lbs)
- Special waveguide connector for Mimosa Networks B11 radio (No coaxial cables required)

- For mounting on Ubiquiti Networks AF11 radios, adapter model JX-AF11 is required

PRODUCT AVAILABLE BY SPECIAL ORDER

High-End Backhaul Antennas for PTP Links

Premium backhaul antennas made with ultra high-quality materials, designed to operate in the harshest conditions, noisy environments, or saline atmospheres. Extended frequency design from 4.9 to 6.1 and 11 GHz.

Point-to-Point Links

Point-to-point links of 24, 29, 32, 35 dBi for distances from 10 to 100 km, in 4.9 to 6.1 GHz frequency range

Deep dish PTP antennas designed for high-capacity robust links, ideal to avoid interference in the environment. Perfect for long-distance internet, data, VoIP, or video surveillance links from 1 to 100 km

Point-to-point links of 36, 37, 41 dBi for distances from 1 to 100 km in the 11 GHz frequency range

Deep dish PTP antennas designed for B11 and AF11 radios, for high-capacity robust links exceeding 1 Gbps. Ideal to reduce interference. Their design and mounting allow links from 1 to 100 km

Key Features

  • High 37.5 dBi Gain at 11.7 GHz for Long-Range Links
  • Waveguide Connector Eliminates Coaxial Cable Losses
  • Deep Dish Design Provides Robust High-Capacity Performance
  • Extended 10.1-12 GHz Frequency Range for Flexibility
  • Extreme Weather and Salt-Resistant Construction Materials
  • Point-to-Point Link Capacity up to 1 Gbps Throughput
