Epcom Titanium KITTT16PVTURBOX 16-channel Active Transceiver Kit / VIDEO+POWER in a Single UTP Cable / 150 meters in 4K, 200 meters in 5 MP/ Sends 36 Vdc and Receives 12 Vdc / ALL INCLUDED FOR RACK / Compatible with HD-TVI/CVI Cameras/ AHD/CVBS

EPCOM

Epcom KITTT16PVTURBOX 16-Channel HD-TVI Active Receiver Kit 4K 200m

Product identifier
SKU KITTT16PVTURBOX
$473.67
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

KIT-TT16PVTURBOX

TurboHD or HD-TVI is a protocol for high-definition video surveillance. EhubAmerica TurboHD name it, we use the HD-TVI Techpoint in California, USA chip.
The TurboHD line is a hybrid of analog and IP, IP has quality but price and installation of an analog system.

Features:

  • Power input: 110-220 Vac, 50-60 Hz
  • Power consumption: 150 W
  • Output of voltage of receiver: 36 Vdc
  • Output of voltage of transceiver: 12 Vdc
  • Current consumption per channel: 0.8 A
  • Max. distance and connection: 150 m in 4K, 200 Meter in 5MP
  • Easy and simple installation
  • Transmission in real-time
  • Connectors BNC and RJ45
  • Dimensions Receiver: 557x 245 x 66.5 mm ( mounting bracket excluded )
  • Balun dimensions: length 8 cm, width 3 cm and height 2.3 cm
  • Weight: 3.890 Kgs

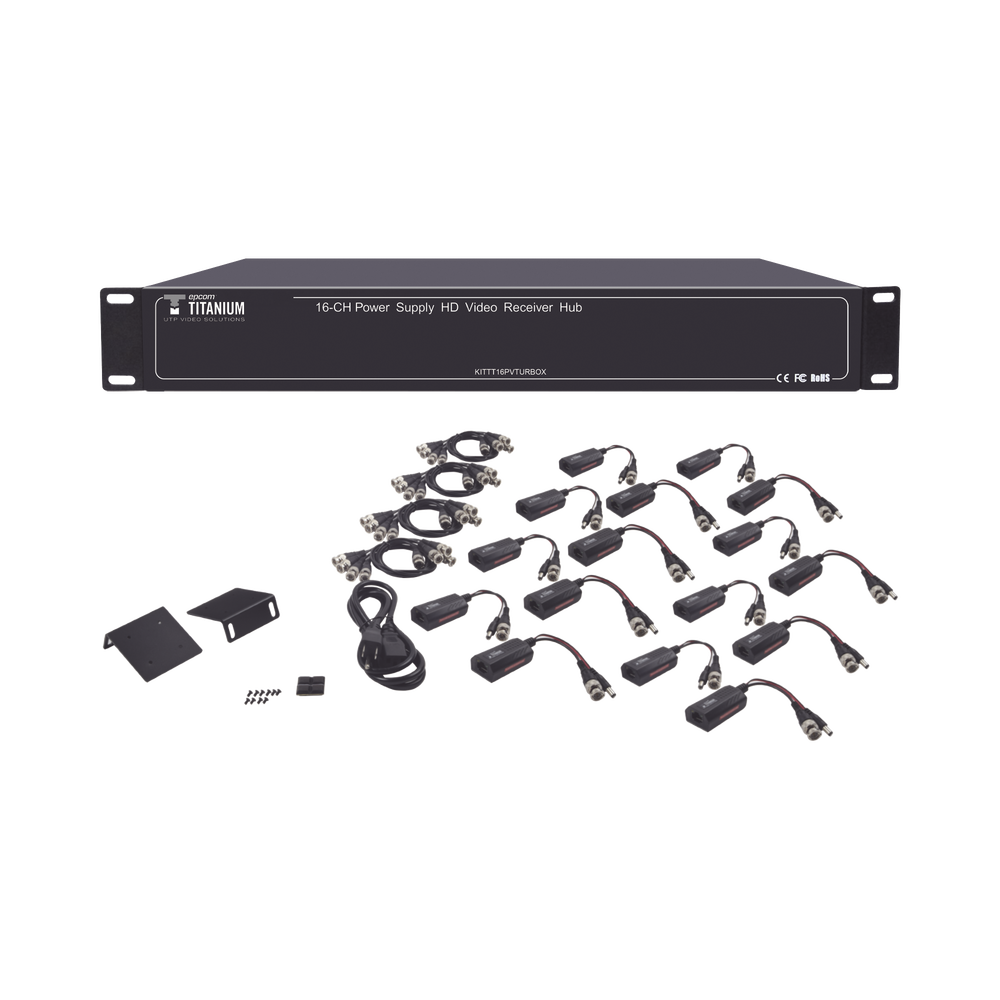

The Kit includes:

  • 1 Active receiver of 16 channels
  • 16 Transceivers of video/voltage
  • 16 Cables BNC for LOOP

Note:

  • The receiver sends 36Vcc in this way it is guaranteed that the voltage reaches 200m using 100% copper cable. The transceiver receives the 36Vcc and regulates to 12Vcc to feed the camera without compromising the operation.
  • If you require compatible transmitters for ST KIT, recommend the kit model TT4816PVTURBO.
  • It has no PTZ control via video signal (For use in coaxitron technology).
  • Certifications: CE, FCC RoHS
  • If you connect this equipment to a UPS make sure that it is a pure sine wave.



Key Features

  • Simultaneous Video and Power Transmission Over Single UTP Cable
  • Supports 4K Resolution up to 492 ft Transmission Distance
  • Compatible With CAT 5e and CAT 6 Network Cabling
  • 36V to 12V Voltage Regulation for Long-Distance Power Delivery
  • Rack-Mountable Design for Clean and Organized Installation
  • Real-Time Transmission Without Delays or Latency Issues
