L-com · Networking Accessories

L-com CMB24-6M IEEE-488 GPIB Cable, Molded, Normal to Normal, 6 m

Part number / SKU
CMB24-6M

$109.95

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

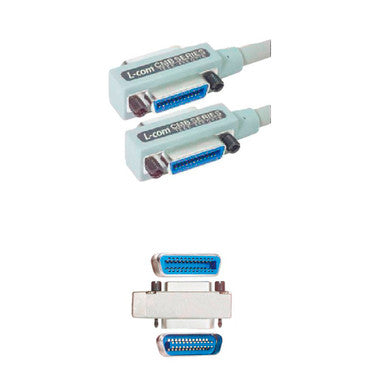

The L-com CMB24-6M is a 6 meter IEEE-488 (GPIB) cable with molded backshells and normal to normal connector orientation, for connecting test instruments and peripherals on a GPIB bus.

The cable has an outer braid plus foil shield and a stamped steel internal enclosure that gives 100% shielding and a strain relief, for use where EMI is a concern. Contacts have 30 microinch gold plating for repeated mating cycles.

  • Best for: linking GPIB test and measurement instruments and controllers in labs and production test stations.
  • System fit: instruments and interface cards with IEEE-488 (GPIB) connectors.
  • Important to know: the 6 m length is the cable length between connectors; plan total bus length for the GPIB system.

Why teams choose it

Built for reliable networks

  • EMI protection

    braid plus foil shield with a stamped steel internal enclosure.

  • Reliable contacts

    30 microinch gold plating.

  • Durable backshells

    molded backshells resist breakage at the cable entry.

  • Standards based

    meets IEEE-488 for peripheral connection.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUCMB24-6M
General
Brand L-com
Model CMB24-6M
Device Type IEEE-488 GPIB cable
Interfaces
Interface Standard IEEE-488, GPIB
Connector Orientation Normal to normal
Contact Plating 30 microinch gold
Physical
Shield Outer braid plus foil
Internal Enclosure Stamped steel, 100% shielding with strain relief
Backshell Molded
Cable Length 6 m
