L-com HG2417P-090 HyperGain 2.4 GHz 17 dBi 90 Degree Sector Panel Antenna, N Female

Part number / SKU
HG2417P-090
  • 2.4 GHz
  • 90° sector panel, 17 dBi

$153.07

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

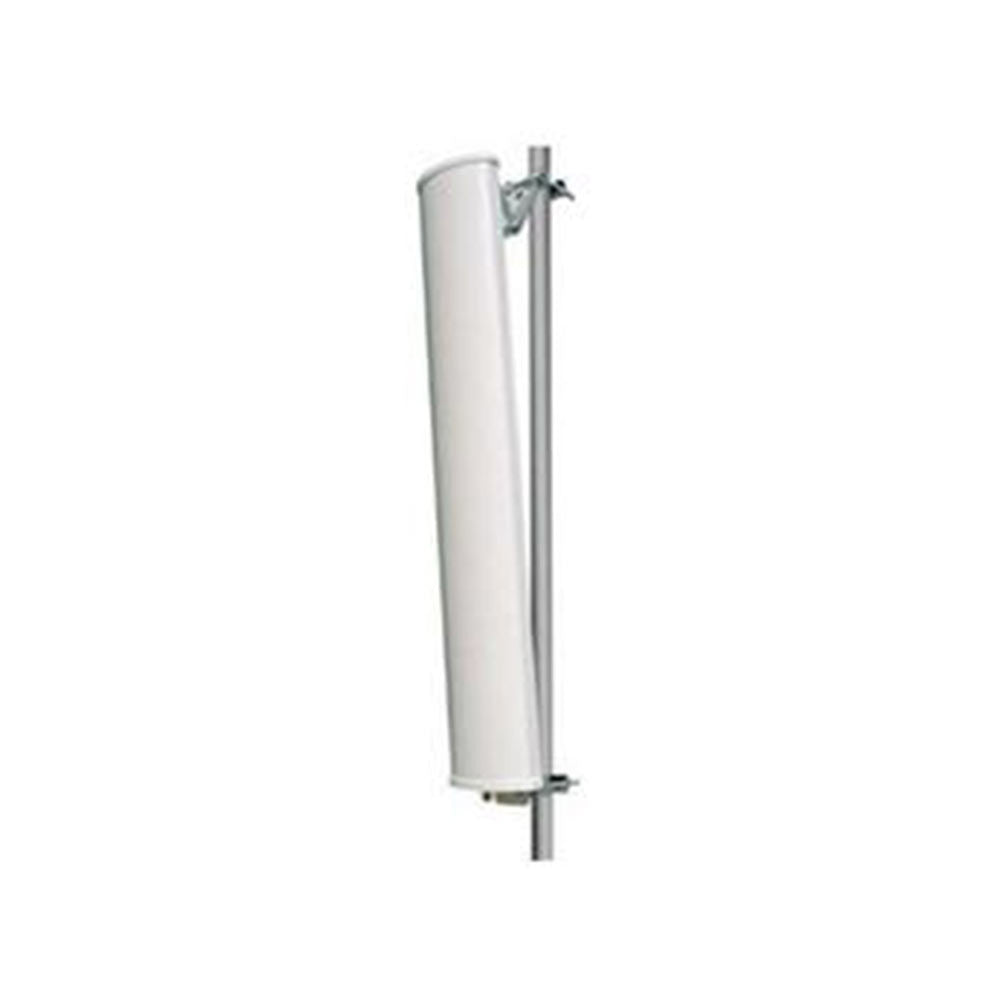

The L-com HyperGain HG2417P-090 is a 2.4 GHz sector panel antenna with 17 dBi of gain and a 90 degree horizontal beam, made for WISP cell sites and IEEE 802.11b and 802.11g wireless LAN systems from 2400 to 2500 MHz.

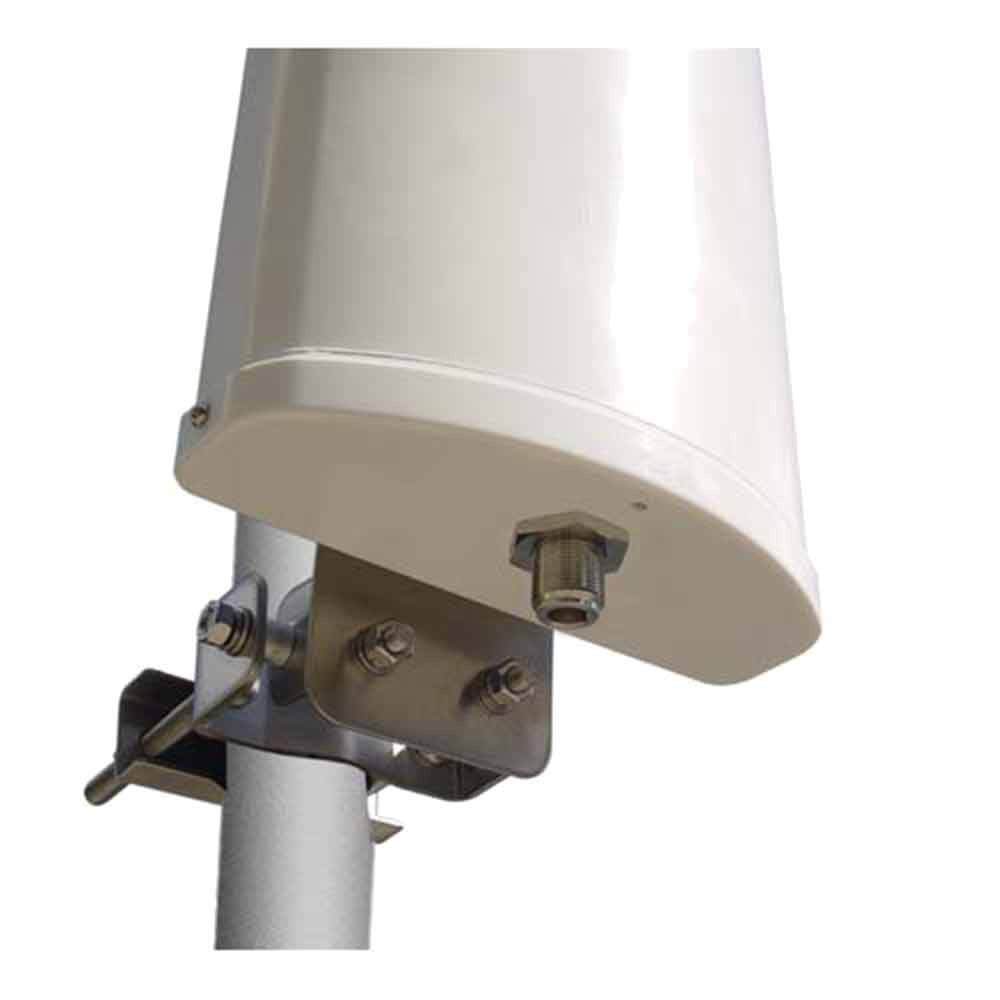

It is vertically polarized with VSWR under 1.3:1, handles up to 250 W and uses an N female connector with direct ground lightning protection. The UV-inhibited radome measures 39 x 6 x 2.5 in and the antenna weighs 10 lb. It mounts on pipes up to 2 in with 0 to 20 degrees of mechanical downtilt and is rated for -40 to 85 °C.

  • Best for: WISP cell sites and 2.4 GHz wireless LAN coverage.
  • System fit: 2.4 GHz radios and access points with an N connection.
  • Important to know: this is a full-size 39 in panel; plan the mast for its 74 lb front wind load at 100 mph.

Why teams choose it

Built for reliable networks

  • Wide sector

    90 degree horizontal coverage with 17 dBi of gain.

  • High power rating

    up to 250 W input.

  • Adjustable cell size

    0 to 20 degree mechanical downtilt.

  • Lightning protection

    direct ground design.

Specifications

Technical specifications

Product identifiers
SKUHG2417P-090
General
Brand L-com
Model HG2417P-090
Series HyperGain
Device Type Sector panel antenna
Mounting Pipe up to 2 in O.D.
Wireless
Frequency Band 2.4 GHz
Frequency Range 2400 to 2500 MHz
Antenna Type 90° sector panel, 17 dBi
Antenna Gain 17 dBi
Horizontal Beamwidth 90°
Polarization Vertical
Impedance 50 ohm
VSWR Below 1.3:1 average
Max Input Power 250 W
Interfaces
RF Connector N female
Lightning Protection Direct ground
Physical
Dimensions 39 x 6 x 2.5 in, 99 x 15.3 x 6.4 cm
Weight 10 lb, 4.54 kg
Radome UV-inhibited polymer
Downtilt 0 to 20°, mechanical
Wind Loading at 100 mph 74 lb front, 35 lb side
Environmental
Operating Temperature -40 to 85 °C, -40 to 185 °F
