COMMSCOPE

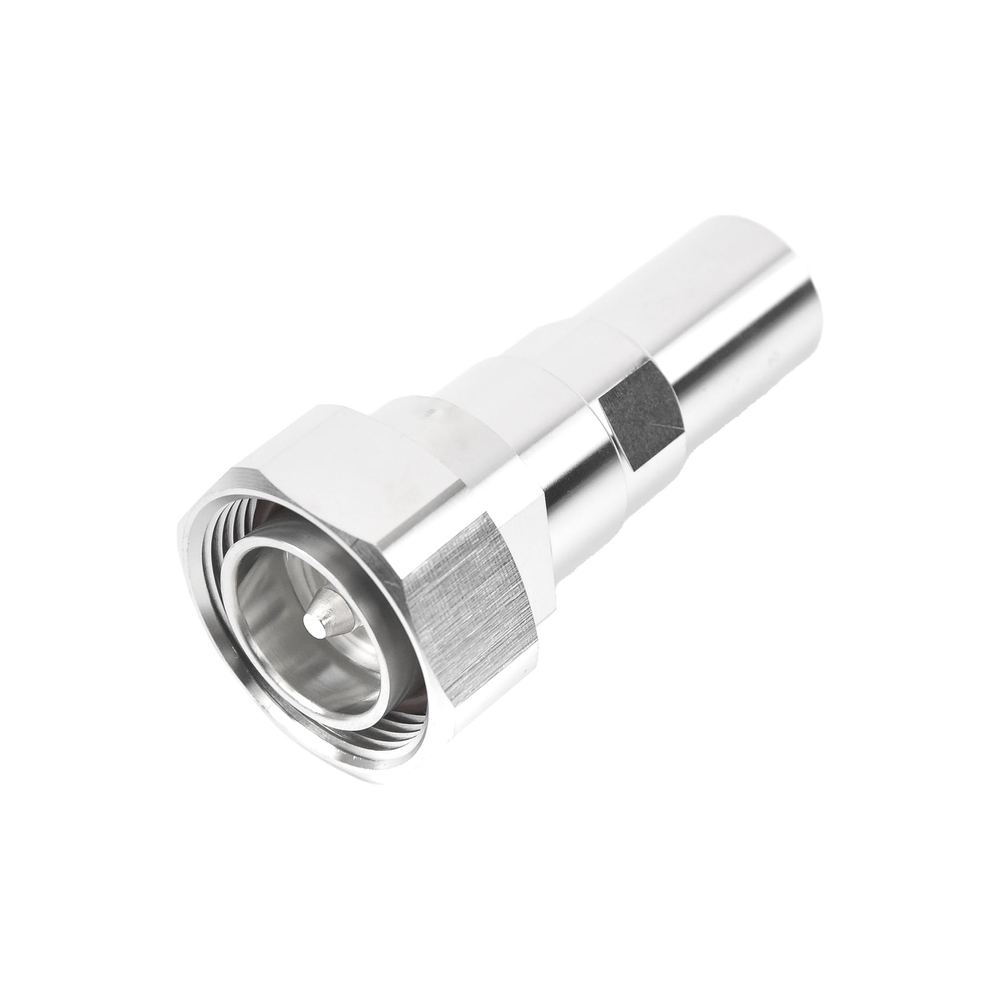

CommScope L4TDM-PSA 50 Ohm Coaxial RF Cable Connector 40kW IP68
Product identifier
SKU
L4TDM-PSA
$31.05
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 8800 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -120 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 1415.00 V |
| dc Test Voltage | 4000 V |
| Outer Contact Resistance, maximum | 1.50 mOhm |
| Inner Contact Resistance, maximum | 0.80 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 1.1 kW @ 900 MHz |
| Peak Power, maximum | 40.00 kW |
| Insertion Loss, typical | 0.05 dB |
| Shielding Effectiveness | -110 dB |
Key Features
- Excellent 0.05 dB Insertion Loss for Minimal Signal Degradation
- Superior -110 dB Shielding Effectiveness Against RF Interference
- High Power Handling up to 40 kW Peak for Demanding Applications
- IP68 Rated for Complete Water Immersion up to 3.3 ft Depth
- Wide Operating Temperature Range from -67°F to 185°F
- Military-Grade Durability With 500 Mating Cycles Minimum
