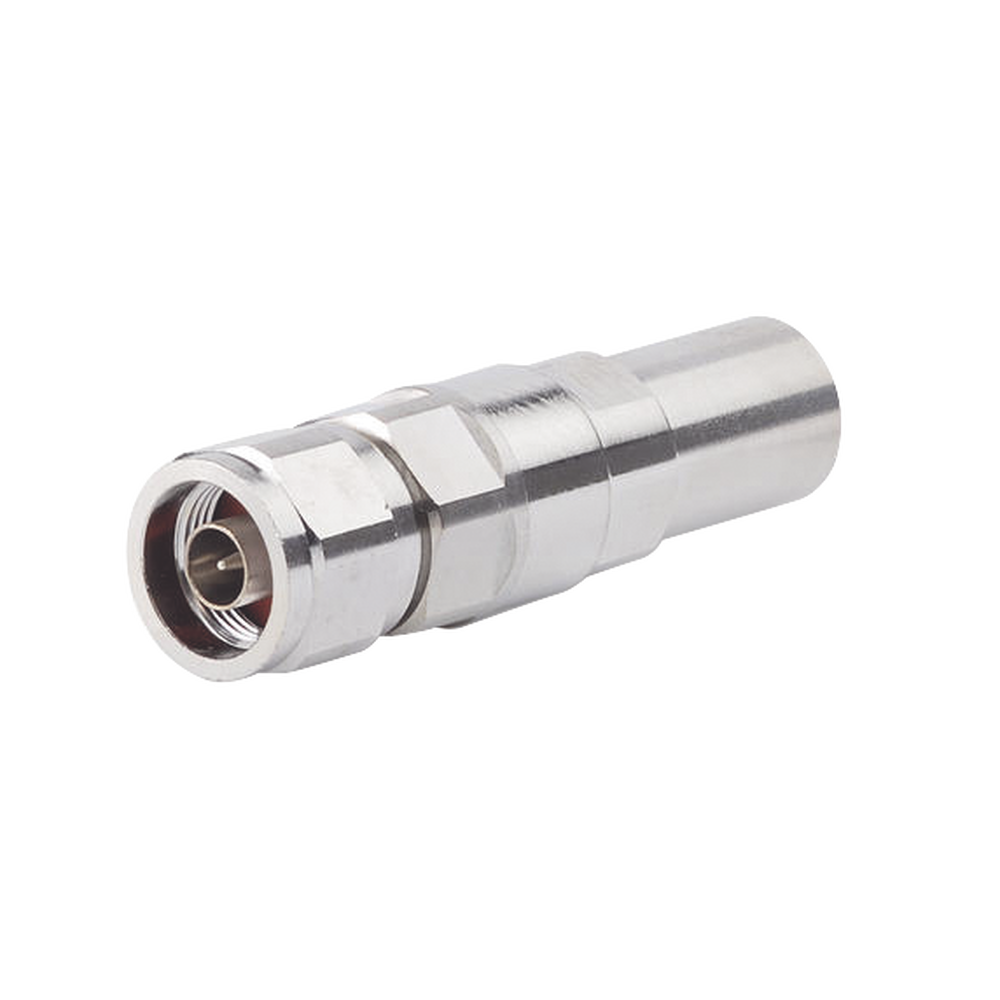

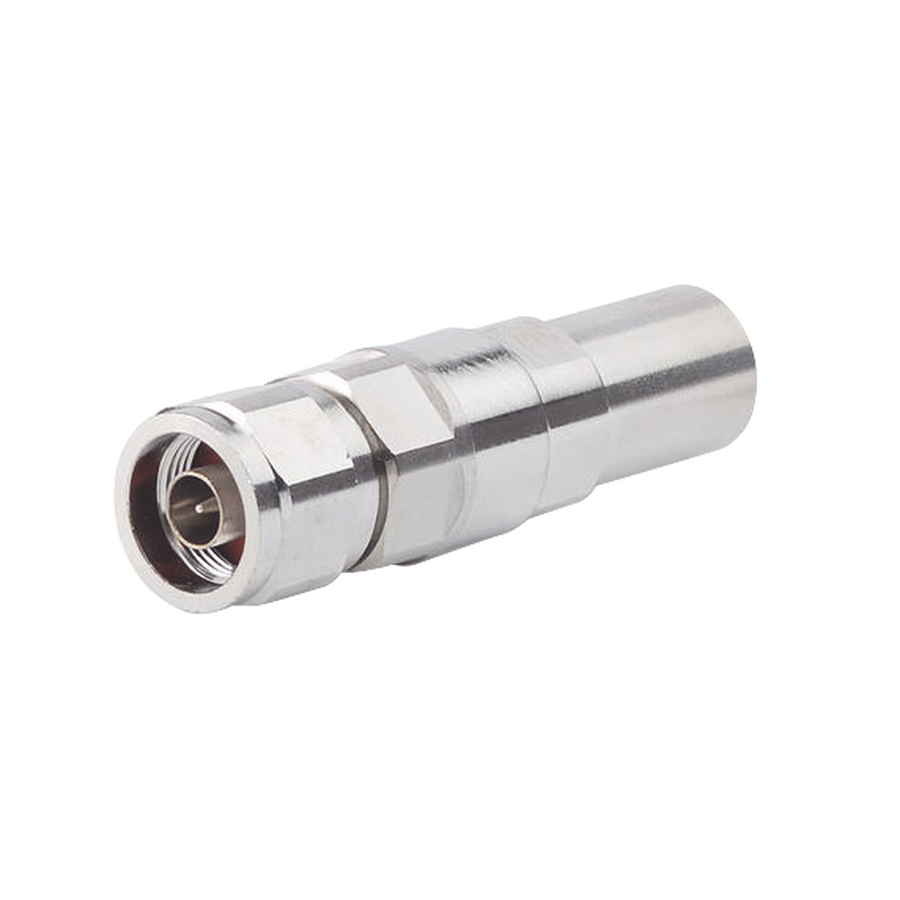

CommScope L4TNM-PSA 50 Ohm N Male Coaxial RF Connector 10kW

Electrical Specifications

• Connector Impedance: 50 ohm
• Operating Frequency Band : 0 – 8800 MHz
• Cable Impedance: 50 ohm
• 3rd Order IMD, typical : -116 dBm @ 910 MHz
• 3rd Order IMD Test Method: Two +43 dBm carriers
• RF Operating Voltage, maximum (Vrms): 707.00 V
• dc Test Voltage: 2000 V
• Outer Contact Resistance, maximum: 0.30 mOhm
• Inner Contact Resistance, maximum: 2.00 mOhm
• Insulation Resistance, minimum: 5000 MOhm
• Average Power : 0.6 kW @ 900 MHz
• Peak Power, maximum: 10.00 kW
• Insertion Loss, typical : 0.05 dB
• Shielding Effectiveness: -130 dB

Return Loss/VSWR
Frequency Band VSWR Return Loss (dB)
45–1000 MHz 1.02 39.00
1010–2200 MHz 1.03 37.00
2210–3000 MHz 1.05 33.00
3010–4000 MHz 1.09 27.00
4010–6000 MHz 1.25 19.00
6010–8000 MHz 1.33 17.00

Dimensions
Nominal Size : 1/2 in
Diameter : 22.35 mm | 0.88 in
Length : 76.70 mm | 3.02 in
Weight : 94.71 g | 0.21 lb

Key Features

• Straight N Male Interface With Secure Hex Nut Coupling
• Compatible With 1/2 Inch LDF4-50A, LP450A, AL4RPV-50 Cables
• -130 dB Shielding Effectiveness for Maximum EMI Protection
• 10 kW Peak Power Handling at 900 MHz Frequency
• IP68 Environmental Rating for Extreme Outdoor Conditions
• Silver-Plated Internal Contacts and Trimetal External Finish
