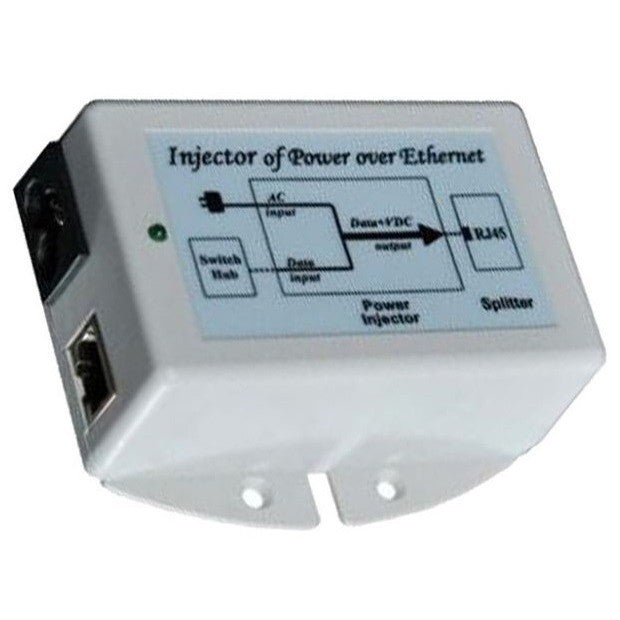

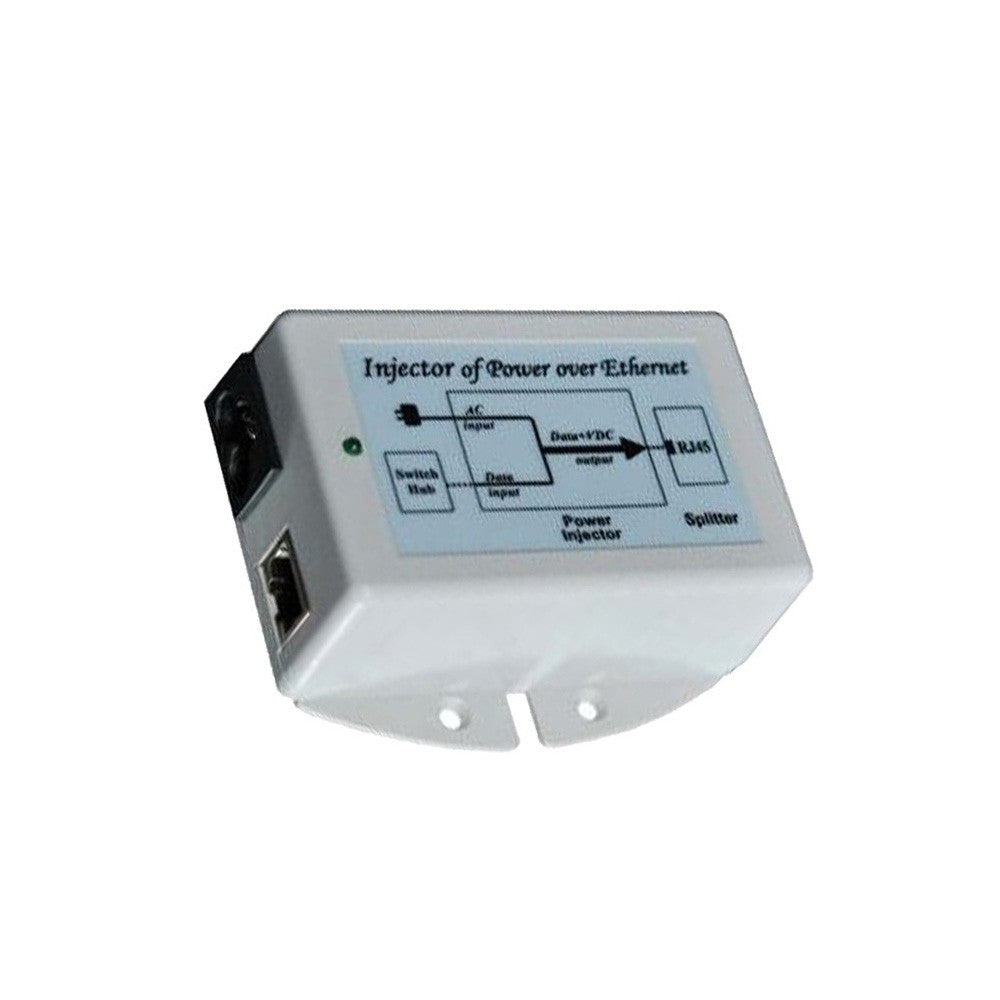

Laird POE-24i 24VDC 19W PoE Injector 802.3af

PRODUCT OVERVIEW

The POE-24i is an advanced power supply / power inserter.

PRODUCT TYPE

PoE & Power Injectors

KEY FEATURES

• The POE-24i is an advanced power supply / power inserter.
• The power supply is autoranging on the input and has a regulated voltage output. It has overload and short circuit protection in addition to Ethernet surge suppression built-in.
• The POE-24i is not a proprietary unit. It will function with any equipment that is compliant with the IEEE 802.3af POE standards.
• For all “i” models, the power is supplied on ethernet pins 4/5 (V+) and 7/8 (V-).
• The POE-24i comes complete with a standard North American 115 VAC power cord. International cords are available upon request. A Current Indicator (-CI) model is available.
• The LED will be AMBER until >35 mA current flows to the end device which will turn the LED to GREEN. This is a good way to remotely monitor the connection between the Power-Over-Ethernet (POE) and the end device, and to indicate that the end device is turned on.
• Carrier class power over ethernet system
• Auto ranging power supply/ inserter
• Built-in ethernet surge protection to prevent equipment damage
• Overload and short circuit protection
• Minimum cross talk and insertion loss
• Advanced switching technology ? runs cool
• Powers clients which accept power on unused ethernet pins 4,5,7,8
• FCC and CE approved
• Current indicator (CI) option available
• Remote routers, access points and bridges
• Remote networking equipment
• SOHO equipment

TECHNICAL SPECIFICATIONS

• Brand: Laird
• Model: POE-24i
• Product Type: Power Supplies & UPS
• The POE-24i is an advanced power supply / power inserter.
• The power supply is autoranging on the input and has a regulated voltage output. It has overload and short circuit protection in addition to Ethernet surge suppression built-in.
• The POE-24i is not a proprietary unit. It will function with any equipment that is compliant with the IEEE 802.3af POE standards.
• For all “i” models, the power is supplied on ethernet pins 4/5 (V+) and 7/8 (V-).
• The POE-24i comes complete with a standard North American 115 VAC power cord. International cords are available upon request. A Current Indicator (-CI) model is available.
• The LED will be AMBER until >35 mA current flows to the end device which will turn the LED to GREEN. This is a good way to remotely monitor the connection between the Power-Over-Ethernet (POE) and the end device, and to indicate that the end device is turned on.
• Carrier class power over ethernet system
• Auto ranging power supply/ inserter
• Built-in ethernet surge protection to prevent equipment damage
• Overload and short circuit protection
• Minimum cross talk and insertion loss
• Advanced switching technology ? runs cool
• Powers clients which accept power on unused ethernet pins 4,5,7,8
• FCC and CE approved
• Current indicator (CI) option available
• Remote routers, access points and bridges
• Remote networking equipment
• SOHO equipment
• IP camera systems
• 400MHz to 10GHz systems
• IP phone systems

INTENDED USE / APPLICATIONS

• Backup, off-grid, or distributed power systems
• Telecommunications and network equipment
• Professional installations requiring compatible power specifications
