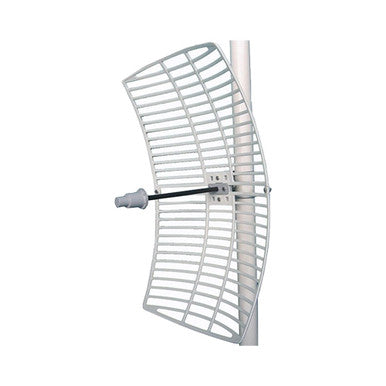

Lanbowan ANT5158D26A 26.5 dBi 5 GHz Die-Cast Aluminum Grid Antenna, N Female

Part number / SKU
ANT5158D26A
  • 5 GHz
  • Grid, 26.5 dBi

$42.60

Special order· Lead time confirmed by our team after you order.

Warranty
Manufacturer warranty
Request a quote

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Lanbowan ANT5158D26A is a die-cast aluminum grid antenna for 5150 to 5850 MHz, with 26.5 dBi gain and a narrow 6 degree horizontal by 9 degree vertical beam. It suits long-range directional links in the 5 GHz UNII and ISM bands and 802.11a/n systems.

It mounts for vertical or horizontal polarization, handles up to 100 W input, and has a front-to-back ratio of at least 25 dB with VSWR of 1.5 typical and 2.0 maximum. The grid design is rated for 60 m/s wind, and the connector is N female.

  • Best for: long-range directional links in the 5 GHz UNII and ISM bands.
  • System fit: single-chain 5 GHz radios and 802.11a/n systems with an N type port.
  • Important to know: this is a single-polarization antenna; set vertical or horizontal polarization when mounting.

Why teams choose it

Built for reliable networks

  • Long-range gain

    26.5 dBi with a 6 by 9 degree beam.

  • Wind resistant grid

    die-cast aluminum, rated for 60 m/s wind.

  • Selectable polarization

    mounts for vertical or horizontal.

  • High power handling

    up to 100 W input.

Specifications

Technical specifications

Product identifiers
SKUANT5158D26A
General
Brand Lanbowan
Model ANT5158D26A
Device Type Grid parabolic antenna
Wireless
Frequency Band 5 GHz
Frequency Range 5150 to 5850 MHz
Bandwidth 700 MHz
Antenna Type Grid, 26.5 dBi
Antenna Gain 26.5 dBi
Horizontal Beamwidth 6°
Vertical Beamwidth 9°
Polarization Vertical or horizontal
Front-to-Back Ratio 25 dB minimum
VSWR 1.5 typical, 2.0 max
Impedance 50 ohm
Max Input Power 100 W
Interfaces
RF Connector N female
Physical
Construction Die-cast aluminum grid
Environmental
Rated Wind Velocity 60 m/s
