Linkedpro LP-FAB-GJXHA21FO G.657A2 1-Core Fiber Drop Cable LSZH

PRODUCT TITLE

Linkedpro LP-FAB-GJXHA21FO G.657A2 1-Core Fiber Drop Cable LSZH

PRODUCT OVERVIEW

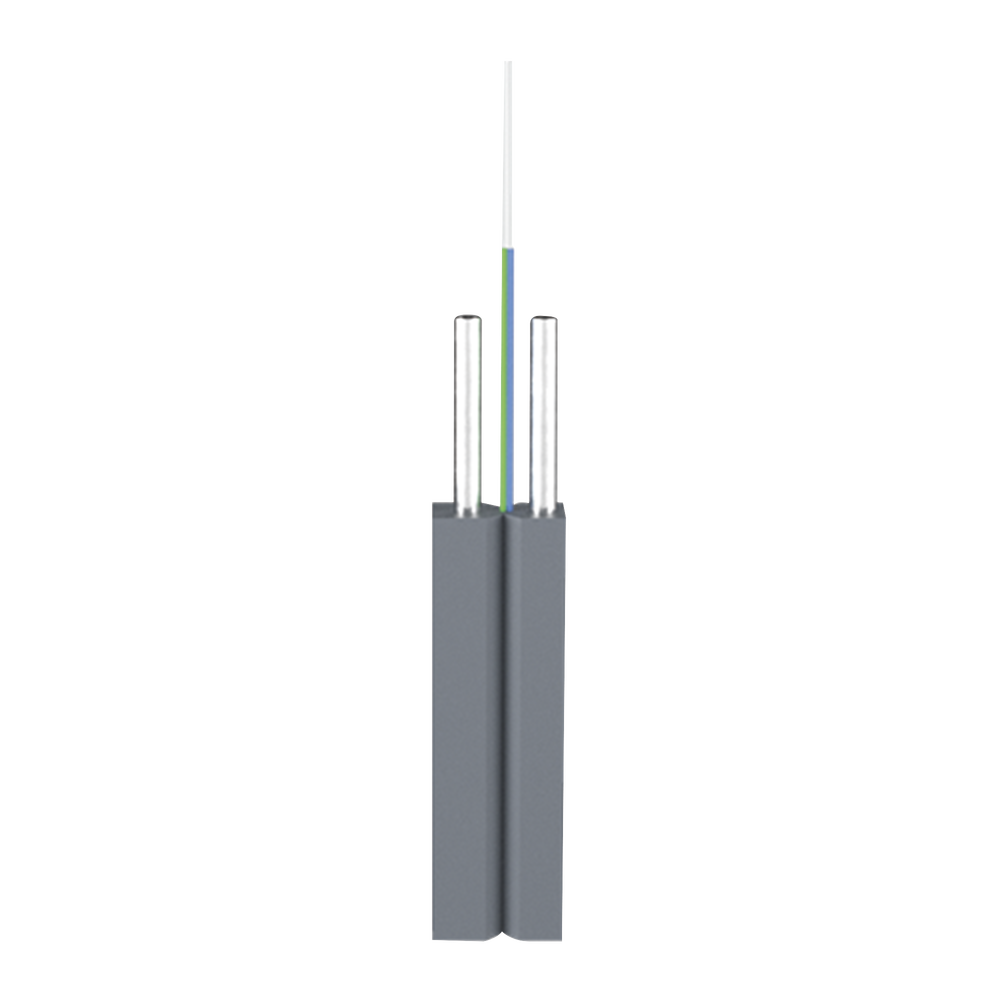

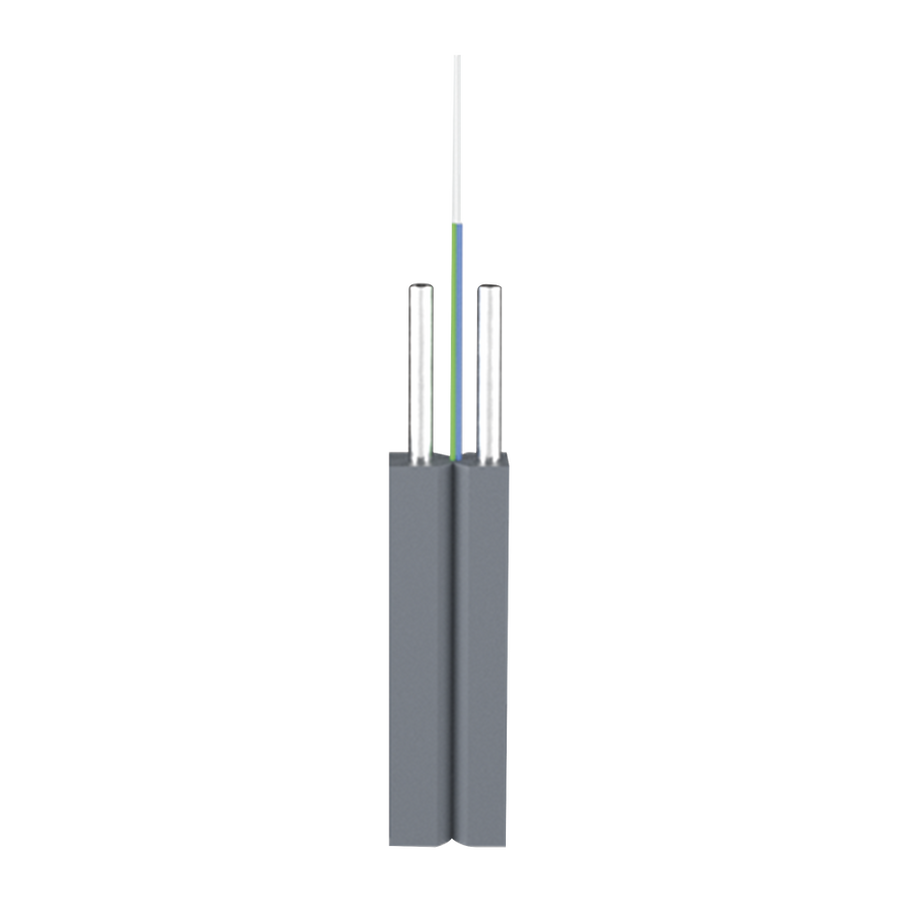

This compact fiber cable features a central optical fiber unit reinforced by dual parallel FRP strength members on both sides, ensuring excellent mechanical protection and stability. The design is completed with a black LSZH (Low Smoke Zero Halogen) outer sheath , making it ideal for indoor deployments, drop fiber installations, and FTTx applications.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Cable

KEY FEATURES

• Low-bend-sensitivity fiber delivers high bandwidth and superior transmission quality
• Dual FRP strength members provide excellent crush resistance and fiber protection
• Lightweight, simple structure ideal for fast installation
• Flute-style jacket design allows easy stripping and splicing for simplified maintenance
• LSZH outer sheath ensures low smoke, zero halogen emissions, and flame retardance
• "Easy-Pull" internal spinning system enables smooth deployment and retraction of excess cable
• Mechanical Performance
• Fiber Count: 1 core
• Cable Diameter: 0.079 × 0.118 in (±0.008 in), ( (2.0 × 3.0 mm (±0.2 mm)) )
• Cable Weight: 31.88 lb/mi ( 9 kg/km )
• Tensile Strength: 9 lbf (long-term) / 18 lbf (short-term), ( 40 N (long-term) / 80 N (short-term) )
• EASY-PULL SYSTEM
• The built-in "Easy-Pull" internal spinning mechanism allows technicians to deploy and retract the cable smoothly, preventing tangles, twists, and fiber stress—ideal for fast FTTx rollouts and indoor routing.
• Flat Compact Design for Easy Installation in Tight Spaces
• G657A2 Bend-Insensitive Fiber for Superior Transmission Performance
• Dual FRP Reinforcement for Excellent Crush Resistance
• LSZH Flame-Retardant Jacket with Low Smoke Zero Halogen
• Internal Easy-Pull Rotation System for Efficient Deployment

TECHNICAL SPECIFICATIONS

• Brand: Linkedpro
• Model: LP-FAB-GJXHA21FO
• Product Type: Networking Cable
• Low-bend-sensitivity fiber delivers high bandwidth and superior transmission quality
• Dual FRP strength members provide excellent crush resistance and fiber protection
• Lightweight, simple structure ideal for fast installation
• Flute-style jacket design allows easy stripping and splicing for simplified maintenance
• LSZH outer sheath ensures low smoke, zero halogen emissions, and flame retardance
• "Easy-Pull" internal spinning system enables smooth deployment and retraction of excess cable
• Fiber Count: 1 core
• Cable Diameter: 0.079 × 0.118 in (±0.008 in), ( (2.0 × 3.0 mm (±0.2 mm)) )
• Cable Weight: 31.88 lb/mi ( 9 kg/km )
• Tensile Strength: 9 lbf (long-term) / 18 lbf (short-term), ( 40 N (long-term) / 80 N (short-term) )
• Flat Compact Design for Easy Installation in Tight Spaces
• G657A2 Bend-Insensitive Fiber for Superior Transmission Performance
• Dual FRP Reinforcement for Excellent Crush Resistance
• LSZH Flame-Retardant Jacket with Low Smoke Zero Halogen
• Internal Easy-Pull Rotation System for Efficient Deployment
• Lightweight Construction at Only 20 lb per 0.6 mi

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
