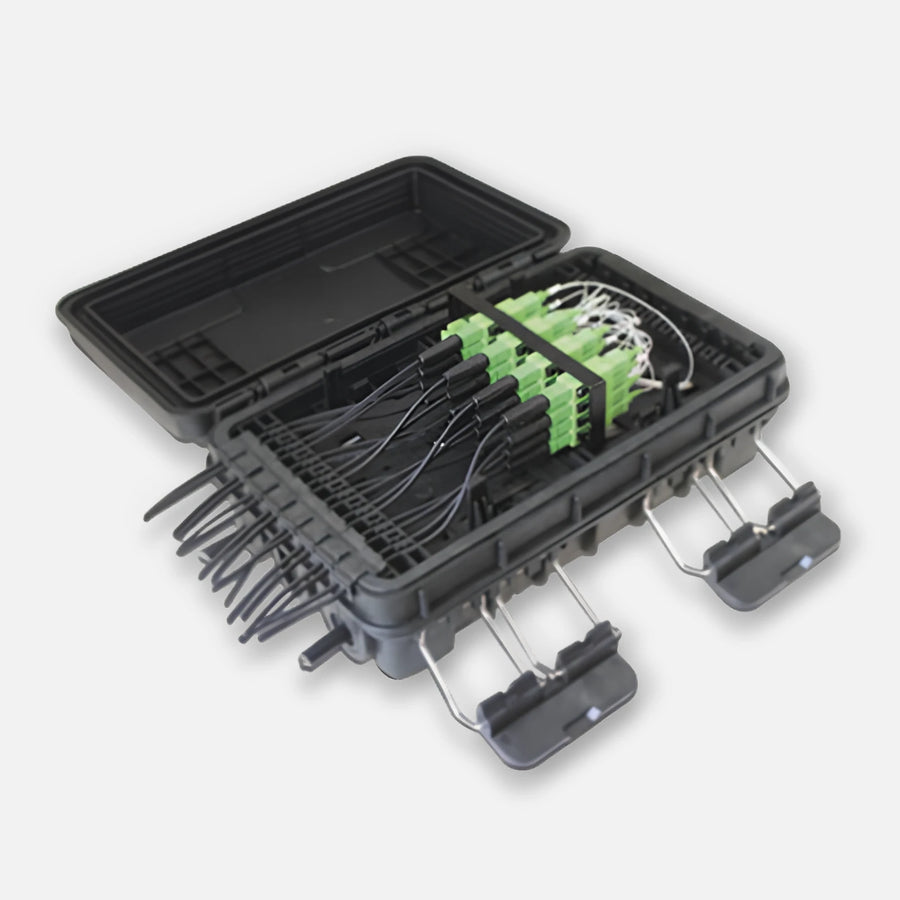

Linkedpro LP-FAB-HGT-16IN/A16 16-Port Fiber Splitter Box IP65 SC/APC

PRODUCT TITLE

Linkedpro LP-FAB-HGT-16IN/A16 16-Port Fiber Splitter Box IP65 SC/APC

PRODUCT OVERVIEW

LinkedPro Fiber Splitter Box provides a high-density wall-mounted, pole-mounted, and aerial-mounted solution for next-generation networks, which aims to provide and manage fiber splitters in a limited space.

PRODUCT TYPE / CATEGORY

• Networking
• Fiber

KEY FEATURES

• 16 Integrated SC/APC Ports for High-Density Fiber Connections
• IP65 Weatherproof Rating for Outdoor and Harsh Environments
• Supports PLC Splitters up to 1x18 for Network Expansion
• Integrated 24-Core Fusion Splicing Tray for Easy Maintenance
• Cable Entry Ports from 0.28 in to 0.71 in Diameter
• Modular Design With 180-Degree Hinge for Easy Access

TECHNICAL SPECIFICATIONS

• Brand: APC
• Model: LP-FAB-HGT-16IN/A16
• Product Type: Fiber
• The product is made of high-quality impact-resistant plastic and has a standard user interface that can be re-opened.
• Can accommodate two 1×8 PLC splitter LGX modules or steel tube type; "Not Included"
• Anti-ultraviolet, anti-impact and waterproof function;
• Unique flip board, flip angle ≥ 180 °, fusion area and distribution area is more obvious, reducing the cable crossing;
• Fiber optic cable can go in and out of the box without cut the cable.
• Dimensions (in): 11.2 x 6.9 x 4.3
• Dimension (mm): 285 x 175 x 110
• Cable diameter (mm): Φ7-φ18
• Dimension 2.0 x 0.4 x 0.3 in / 52 x 9 x 8.1mm
• Inlet Ports Port 1: 6 ~ 9mm
• Port 2: 9 ~ 12mm
• Port 3: 12 ~ 15mm
• 6 ports in total (3 ports on each side of the box)
• Max. Split ratio: 2pcs 1×8 steel tube splitter
• Max. Adapter number: 16pcsr
• Max. Splice tray: 1pc
• Max. Fusion splice: 24 cores
• Outlet Ports 16 ports in total drop cable 2x3mm
• (8 ports on each side of the box)
• 16 Integrated SC/APC Ports for High-Density Fiber Connections
• IP65 Weatherproof Rating for Outdoor and Harsh Environments
• Supports PLC Splitters up to 1x18 for Network Expansion
• Integrated 24-Core Fusion Splicing Tray for Easy Maintenance
• Cable Entry Ports from 0.28 in to 0.71 in Diameter
• Modular Design With 180-Degree Hinge for Easy Access

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
