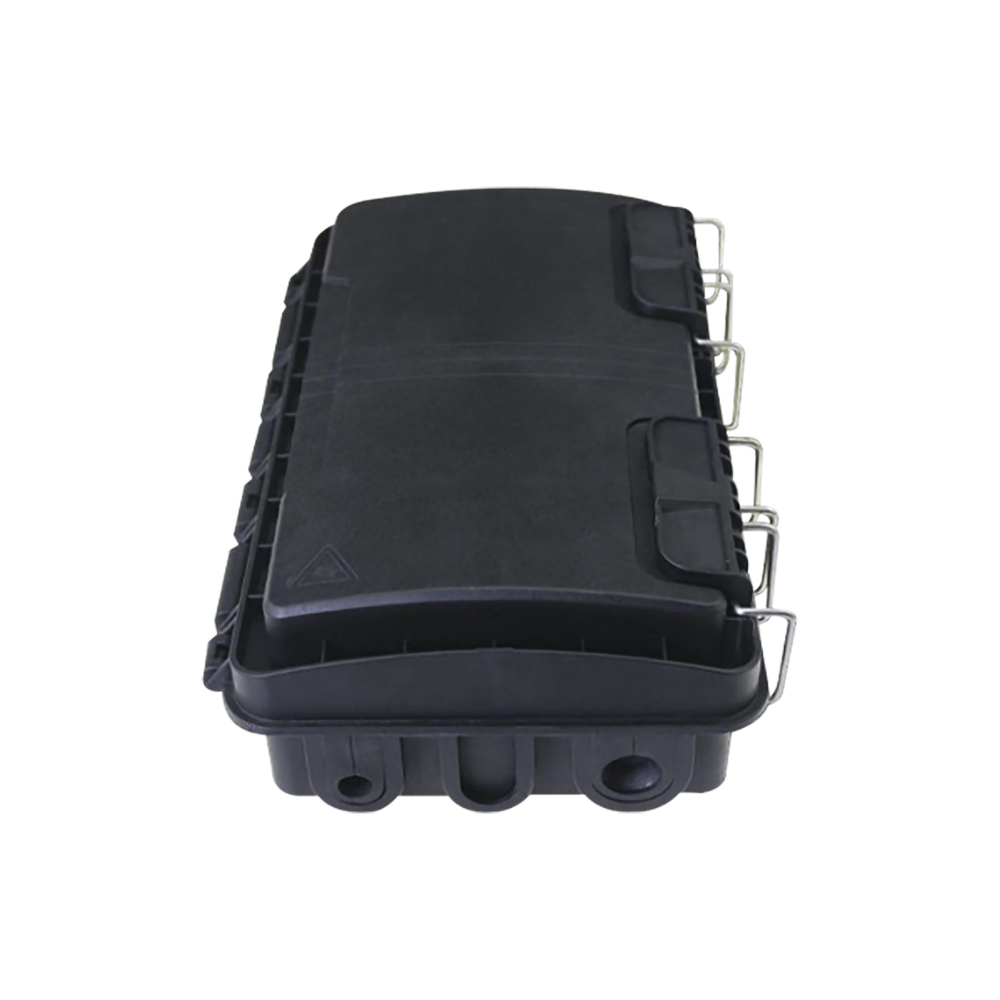

Linkedpro LP-FAB-HGT-16IN/AS16 1×16 Fiber Splitter Box FTTH Wall/Pole Mount
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
LinkedPro Fiber Splitter Box — Wall, Pole & Aerial Mount FTTH Solution
The LinkedPro Fiber Splitter Box provides a high-density solution for wall-mounted, pole-mounted and aerial-mounted FTTH and FTTx deployments. Designed to manage fiber splitters and distribution in a compact footprint, it is ideal for next-generation access networks where space, protection and easy maintenance are critical.
Product Overview
This outdoor splitter enclosure is built to simplify drop fiber management, splicing and splitting in FTTx and FTTH applications. It supports wall, pole and aerial mounting, providing flexible options for deployment in access networks, MDU buildings, residential areas and small distribution nodes.
The internal layout clearly separates the splicing area and distribution area, reducing cable crossings and making maintenance, expansion and troubleshooting easier for field technicians.
Key Features
- High-quality, impact-resistant plastic enclosure with a re-openable user interface for easy access.
- Accepts up to two 1×8 PLC splitter LGX modules or steel-tube type splitters (includes one 1×16 splitter).
- UV-resistant, impact-resistant and weatherproof housing for outdoor environments.
- Unique flip-board design with opening angle ≥ 180°: clear separation between splicing and distribution areas, reducing cable crossings.
- Fiber optic cable can enter and exit the box without cutting the main cable, enabling mid-span access.
Technical Specifications
- Enclosure dimensions (in): 11.2 × 6.9 × 4.3
- Enclosure dimensions (mm): 285 × 175 × 110
- Main cable diameter range: Ø 7 – Ø 18 mm
- Typical PLC splitter module size: 2.0 × 0.4 × 0.3 in / 52 × 9 × 8.1 mm
-
Inlet ports (main cable):
- Port 1: 6 – 9 mm
- Port 2: 9 – 12 mm
- Port 3: 12 – 15 mm
- Total: 6 inlet ports (3 per side)
- Maximum split ratio: 2 × 1×8 steel-tube splitters
- Maximum adapter capacity: 16 adapters
- Maximum splice tray: 1 tray
- Maximum fusion splices: 24 cores
-
Outlet ports (drop cables):
- 16 drop cable ports 2 × 3 mm
- 8 ports on each side of the box
Key Features
- Integrated 1x16 PLC Splitter With G657A1 Fiber for High Performance
- IP65 Rated for Complete Weather and Water Protection
- 24-Core Fusion Splicing Tray for Maximum Capacity
- UV Protection and Impact-Resistant High-Quality Plastic Housing
- Modular Design for Wall, Pole, or Antenna Mount Applications
- 180-Degree Swing-Out Panel for Easy Cable Management
