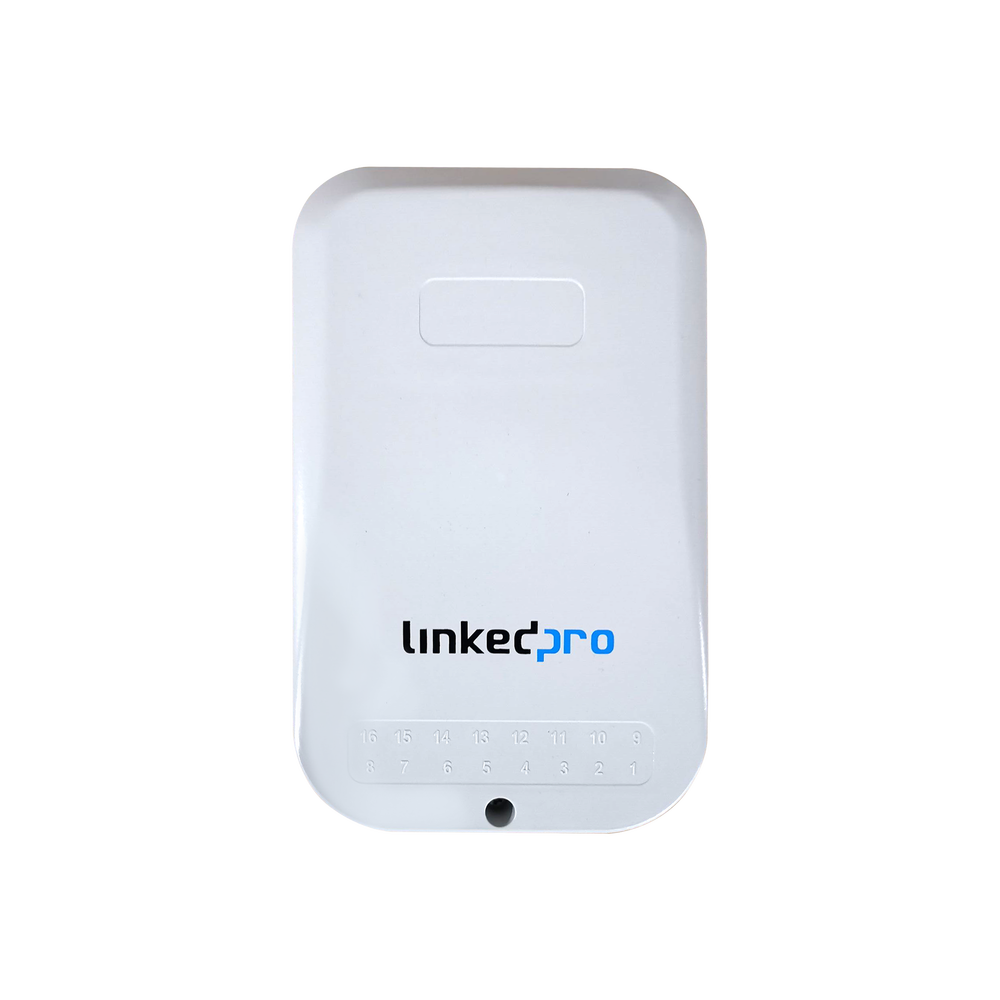

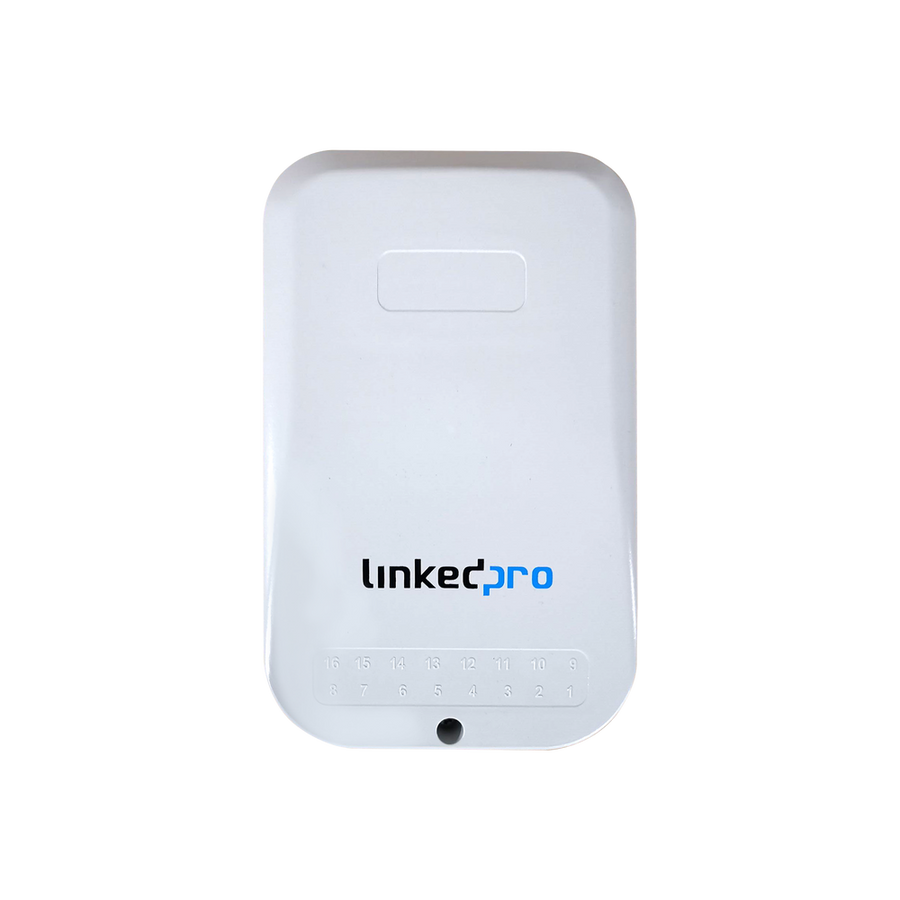

Linkedpro LP-FAB-HGT-16ZT 16-Port Fiber Splitter Box IP65 SC/APC
Product identifier
SKU
LP-FAB-HGT-16ZT
$29.85
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
LinkedPro Fiber Splitter Box provides a high density wall mounted, pole mounted and aerial mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space.
Features:
- Integrated with splice cassette and cable management system
- Manage fibers in a reasonable fiber radius condition
- Fiber bend radius control more than 40mm
- 2pcs 1*8 micro type Splitter can be installed
- All splicing trays can be extended up to a self-locking position of 120 degrees
- The adapter can be rotated at an angle
- 16 ports cable entrance for distribution cables for option, 2*3mm FTTH Drop Cable
Configuration:
- Material: PC+ABS
- Size: A*B*C(mm) 200*130*55
- Max Output : 16*2~5mm
- Max Input: 2*Φ16
- Max Capacity Splicing: 16
- PLC Splitter: 2* 1×8
- IP Level: IP65
Key Features
- High-Density 16-Port Design for Fiber Distribution Networks
- Includes 16 Factory-Installed SC/APC Fiber Optic Adapters
- IP55 Protection Against Dust and Water Ingress
- Compact 7.9 x 5.1 x 2.2 Inch Durable Polycarbonate + ABS Housing
- Standard Wall Mount Configuration for Easy Installation
- Maximum 16 Fusion Splicing Capacity With Cable Management
