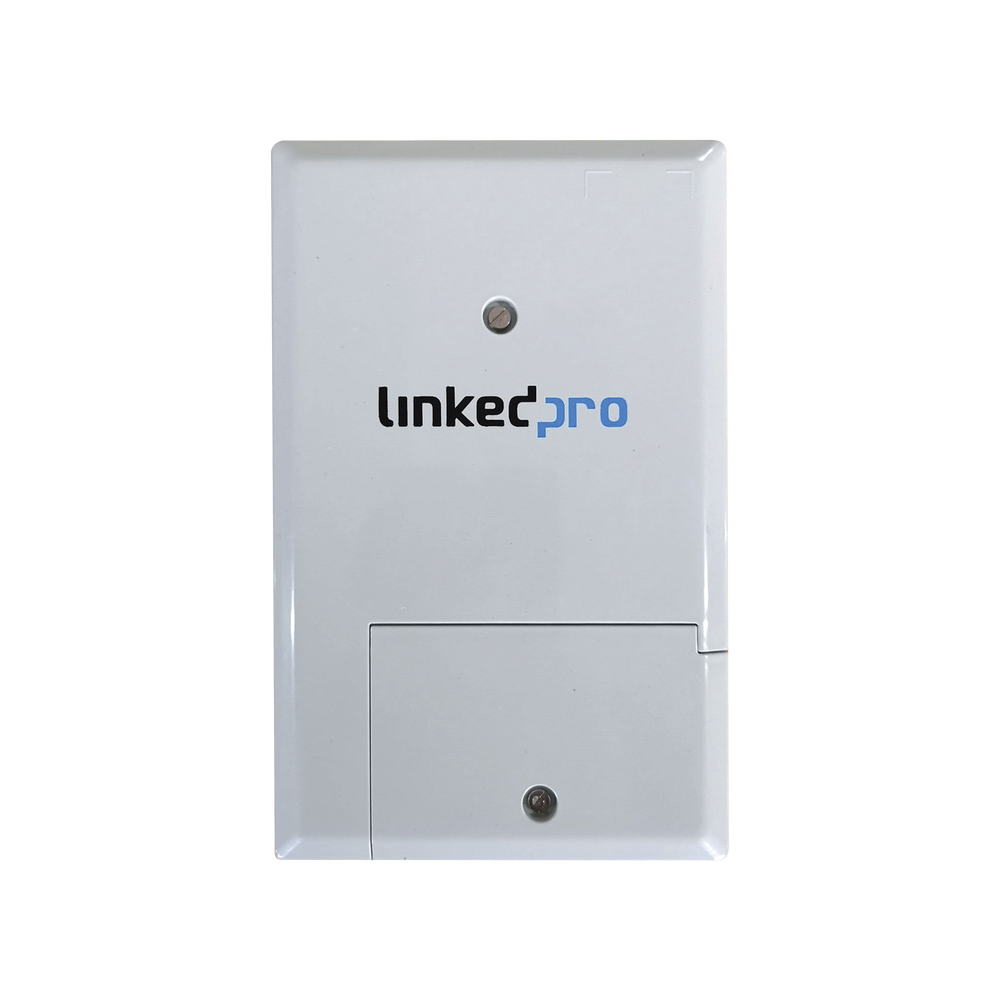

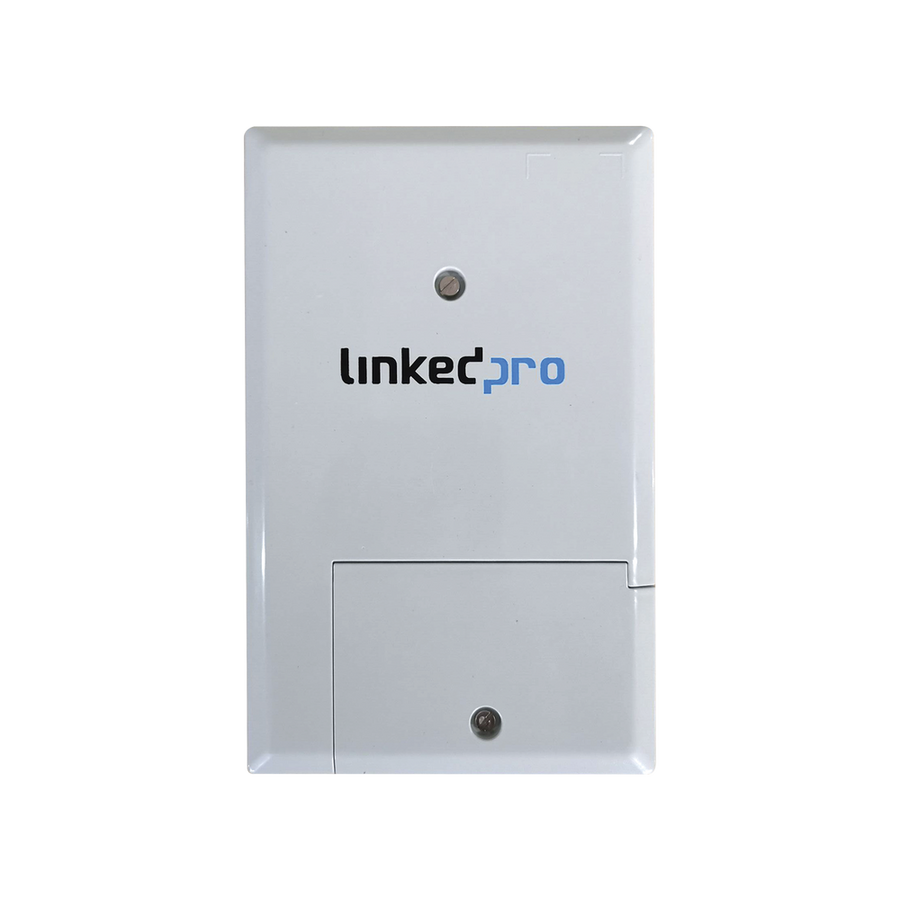

Linkedpro LP-FAB-HGT-8ZT-2 Fiber Distribution Box 8-Port SC/APC IP55
Product identifier
SKU
LP-FAB-HGT-8ZT-2
$22.65
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Fiber Distribution Box is is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification:
- Anti-UV (Ultraviolet)
- Economic design with plastic adaptor panel
- Uncut cable port for feeder cables.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, easy maintenance.
- Box can be installed by the way of wall-mounted.
Applications:
- FTTH access network
- Telecommunication network
- CATV networks
- Data communications network
- Local area networks
Configuration Table:
- Installation Method: Wall-mounted
- Color: White / Gray
- Material: PC+ABS
- Cable Ports: 2 Ports (For main cable) + 8 Ports (For drop cable)
- Capacity Of Splice: Tray 2 Pcs (12 Cores / Tray)
- Adapter Ports (SC): 8 Pcs ( Pre-installed Reinforced)
- Dimensions H×W×D (in): 8.7 x 4.9 x 1.9
- Dimensions: H×W×D (mm): 222 × 126 × 50
Key Features
- IP55 Weatherproof Rating With UV Protection for Outdoor Use
- 8 Preinstalled SC/APC Adapters With Reinforced Construction
- 2 Splice Trays Capacity for up to 24 Fiber Cores Total
- Wall Mount Design for Easy Installation in FTTH Networks
- Separate Cable Pathways for Feeder and Drop Cables
- PC+ABS Construction for Durability and Impact Resistance
