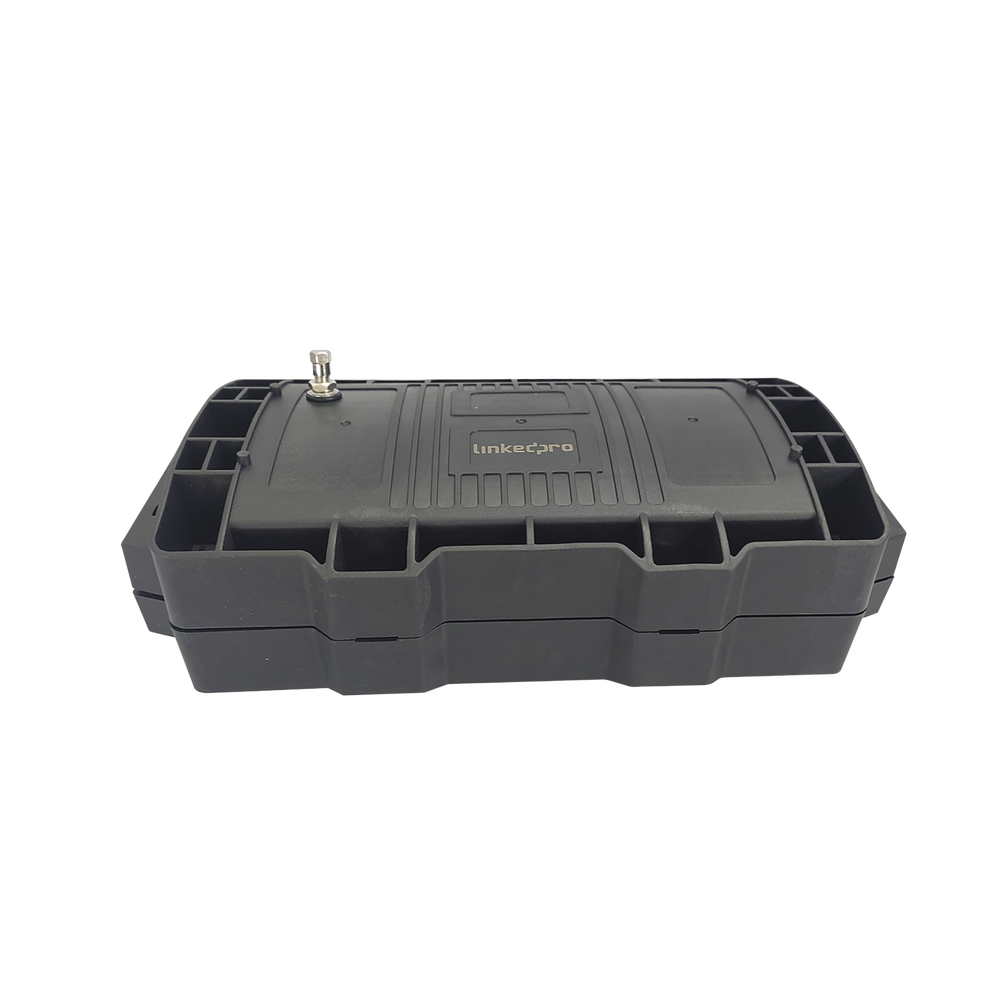

Linkedpro LP-FAB-LPSC-BIM-P8 Inline Fiber Optic Splice Closure 8-Port 48-Fiber
Product identifier
SKU
LP-FAB-LPSC-BIM-P8
$39.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
LINKEDPRO developed a complete family of horizontal and dome closures to meet the complex needs of today’s fiber optic networks.
Description:
LP-FAB-LPSC-BIM-P8 Inline Type Fiber Optic Splice Closure is mechanical sealing for reusable application.
Specification:
| Type | Inline type |
| Number of Inlet/Outlet ports | 8 ports |
| Cable Diameter | 6 ports×13mm, 2 ports×16mm |
| Maximum Capacity | Bunchy: 48 fibers; Ribbon: 72 fibers |
| Capacity per Splice Tray | Bunchy: single layer: 12 fibers; dual layers: 24 fibers; Ribbon: 6pcs |
| Quantity of Splice Tray | 2pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 336(L)×180(W)×100(H)mm |
| Net Weight | 1.9~2.3KG |
| Temperature | -40℃~65℃ |
Key Features
- Durable dome design for reliable outdoor fiber optic protection
- Eight ports for multiple fiber optic cable entries and exits
- Two splice trays accommodate up to 24 fiber optic splices
- Built-in pressure valve maintains internal environmental stability
- Weatherproof construction protects against harsh outdoor conditions
- Easy access design for simple installation and maintenance
