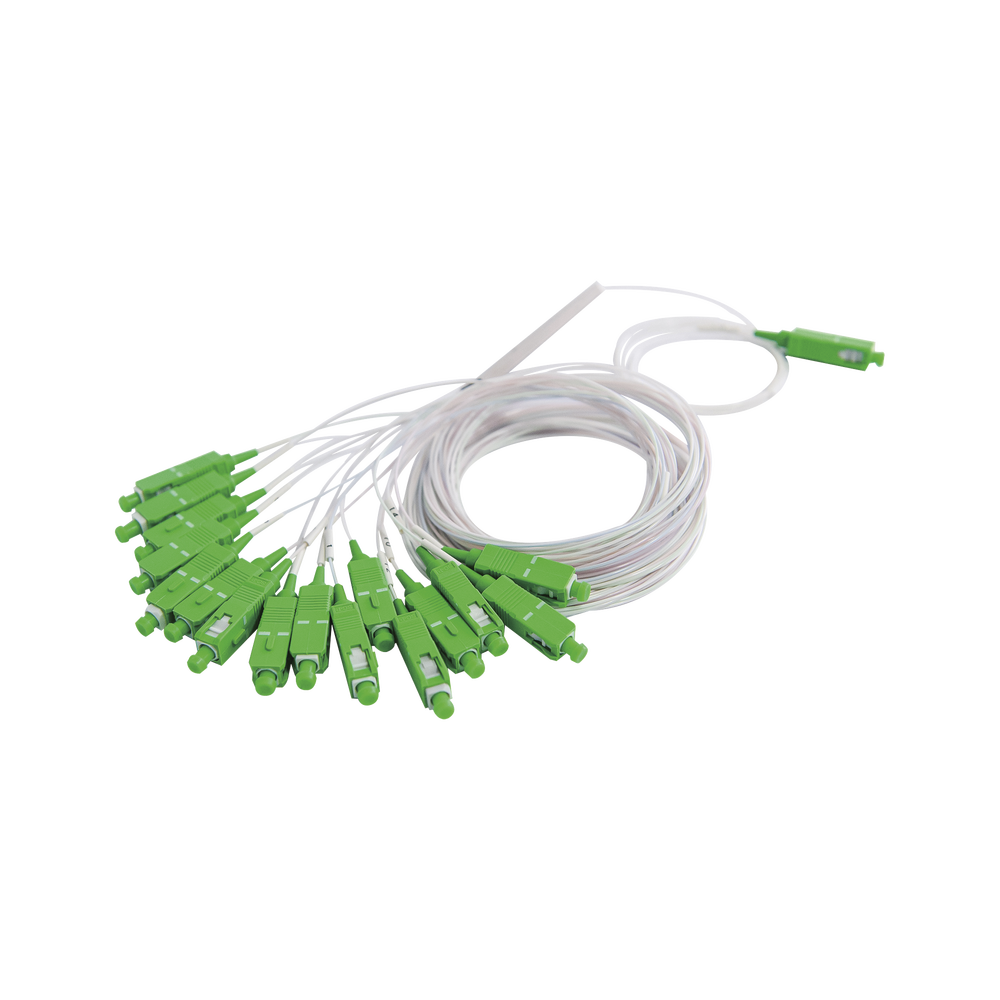

Linkedpro LP-FAB-PLC1X16-AS PLC Optical Splitter 1x16 G.657A 1550nm
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The PLC Optical Splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective, network space-saving solution. The PLC splitter evenly splits an optical signal from one or two input ports to multiple output ports. It can work at wavelengths from 1260 to 1650nm. It is compact and can be installed in underground, aerial, pole, pedestal, and rack systems.
LinkedPro PLC Splitter adopts the patented low-loss technology. It features low insertion loss, low polarization loss, and high port uniformity. All products comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with the RoHS directive. PLC Splitters are available in various configurations, pre-terminated and rugged environment boxes, compact square boxes, or flat tubes.
- Ø0.9mm input loose tube pigtail without connector
- Ø0.9mm output loose tube pigtail without connector
- Adopts G.657A optical fiber
- Microencapsulation
- Provides split ratio 1x16
- 4.92 ft (1.5 meters)
Optical Properties:
- Wavelength Range: 1260 ~1650nm
- Maximum Input Power: >300mW
- Directivity: >55dB
- WDL: <0.5dB
- PDL: <0.3dB
Applications:
- FTTx
- LAN, WAN
- CATV
- Tests and measurements
Key Features
- Low Insertion Loss for Optimal Signal Integrity
- High Return Loss Performance up to 55 dB
- Excellent Uniformity Across All 16 Output Ports
- Compact Design for Space-Constrained Installations
- Wide Operating Temperature Range -40°F to 185°F
- Reliable Performance in Harsh Environmental Conditions
