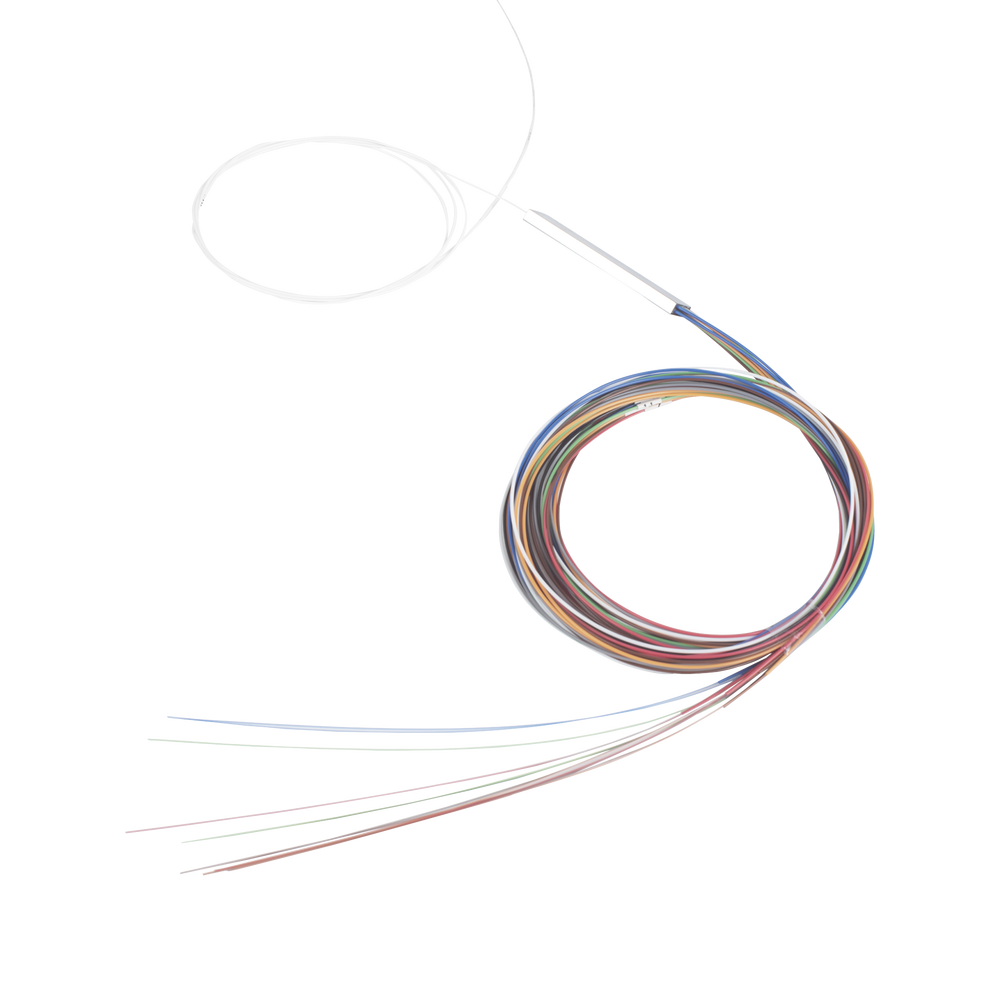

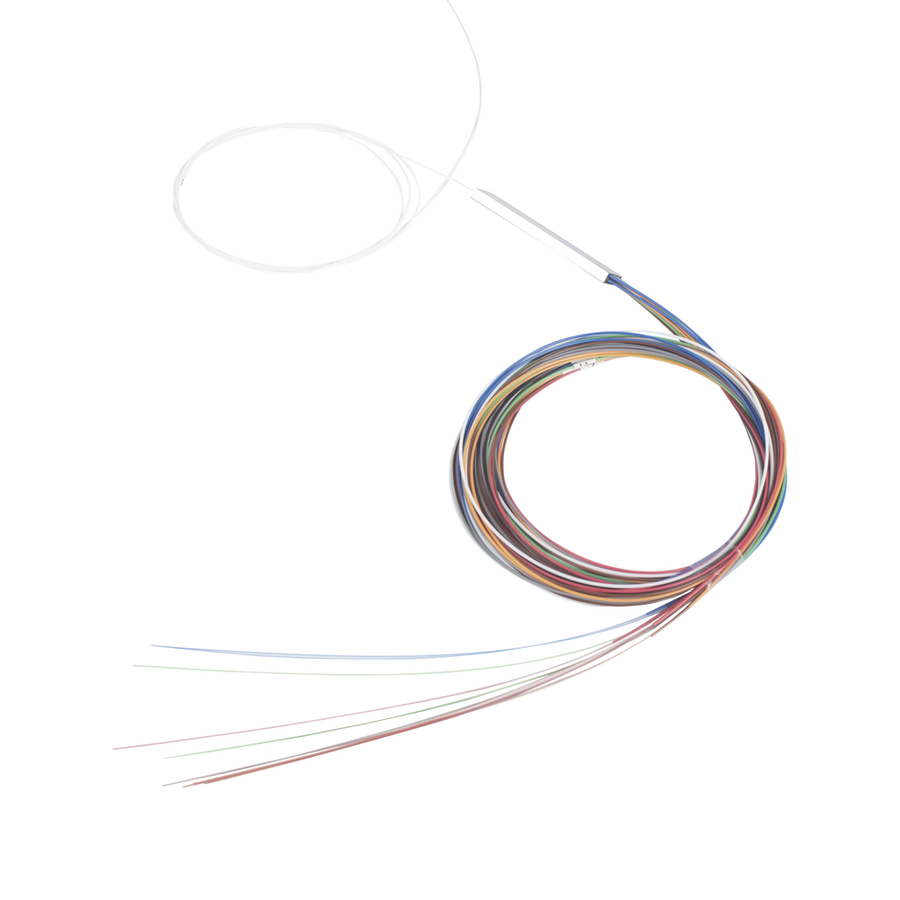

Linkedpro LP-FAB-PLC1X16WC-A1-250U 1x16 PLC Splitter 1260-1650nm Low Loss

PRODUCT TITLE

Linkedpro LP-FAB-PLC1X16WC-A1-250U 1x16 PLC Splitter 1260-1650nm Low Loss

PRODUCT OVERVIEW

The PLC optical splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective and space-saving solution in the network. The PLC splitter evenly divides an optical signal from one or two input ports to multiple output ports. It can work on wavelengths from 1260 to 1650nm. It has a compact size and can be installed in underground, aerial, poles, pedestals, and rack systems.

PRODUCT TYPE / CATEGORY

• Networking
• Networking Accessories

KEY FEATURES

• Low Insertion Loss of Only 7.2 dB for Optimal Signal Transmission
• Wide Wavelength Range From 1260 nm to 1650 nm
• Extreme Temperature Operation From -40°F to 185°F
• Compliant With Telcordia GR-1209 and GR-1221 Standards
• G.657A Fiber Technology for Superior Bending Performance
• Connector-Free Design With Loose Tube Pigtails

TECHNICAL SPECIFICATIONS

• Brand: Linkedpro
• Model: LP-FAB-PLC1X16WC-A1-250U
• Product Type: Networking Accessories
• Input: Pigtail Loose tube without connector
• Outputs: Pigtail Loose tube without connector
• Complies with G.657A optical fiber standard
• 1X16 splitter
• Operating temperature: -40 to 85ºC
• Relative humidity: 20~95 (%RH)
• Operating wavelength: 1260 ~1650nm Maximum
• input power: >300mW
• Directivity: >55dB WDL: <0.5dB PDL: <0.3dB
• Uniformity: <0.8dB
• Insertion loss: ≤7.2dB
• Return loss: > 55dB
• FTTx
• LAN, WAN
• CATV
• Testing and measurement
• Low Insertion Loss of Only 7.2 dB for Optimal Signal Transmission
• Wide Wavelength Range From 1260 nm to 1650 nm
• Extreme Temperature Operation From -40°F to 185°F
• Compliant With Telcordia GR-1209 and GR-1221 Standards
• G.657A Fiber Technology for Superior Bending Performance
• Connector-Free Design With Loose Tube Pigtails

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
