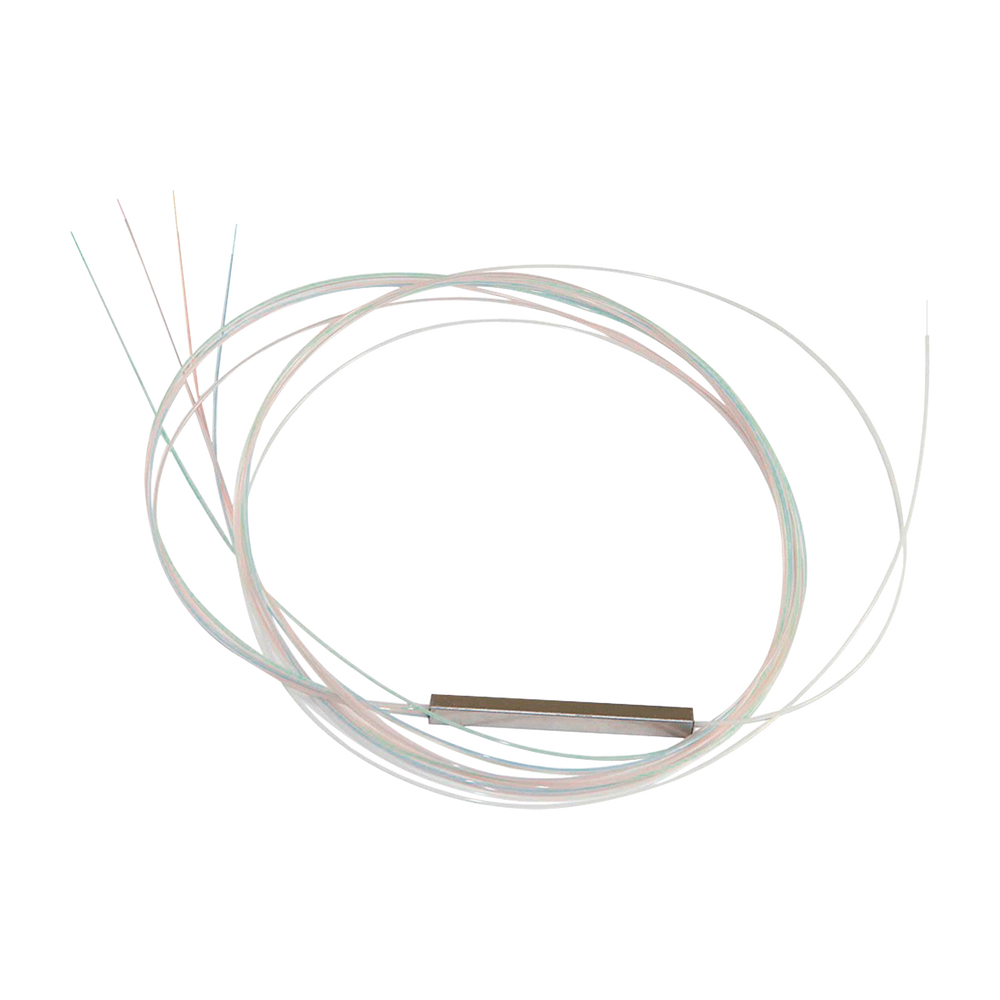

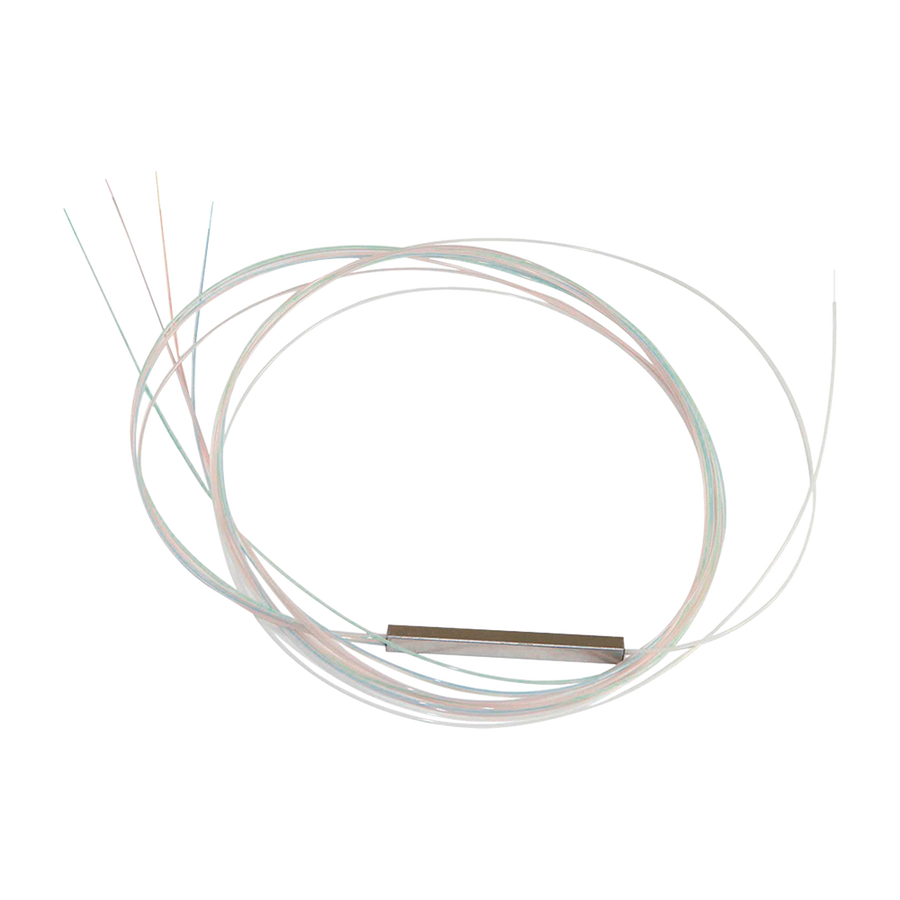

Linkedpro LP-FAB-PLC1X4WC-A1-250U 1x4 PLC Fiber Optic Splitter G.657A
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The PLC optical splitter is an important component in an FTTx network. It is based on planar wave technology, providing a cost-effective and space-saving solution in the network. The PLC splitter evenly divides an optical signal from one or two input ports to multiple output ports. It can work on wavelengths from 1260 to 1650nm. It has a compact size and can be installed in underground, aerial, poles, pedestals, and rack systems.
The LinkedPro PLC splitter adopts patented low-loss technology. It has low insertion loss, low polarization loss, and high port uniformity. All products fully comply with Telcordia GR-1209 and GR-1221 standards, and all materials used comply with RoHS directives. PLC splitters are available in a wide range of configurations, pre-terminated and boxed for harsh environments, in compact square boxes or flat tubes.
- Input: Pigtail Loose tube without connector
- Outputs: Pigtail Loose tube without connector
- Complies with G.657A optical fiber standard
- 1X4 splitter
- Operating temperature: -40 to 85ºC
- Relative humidity: 20~95 (%RH)
Optical properties:
- Operating wavelength: 1260 ~1650nm Maximum
- input power: >300mW
- Directivity: >55dB WDL: <0.5dB PDL: <0.3dB
- Uniformity: <0.8dB
- Insertion loss: ≤7.2dB
- Return loss: > 55dB
Applications:
- FTTx LAN
- WAN CATV
- Testing and measurement
Key Features
- Planar Lightwave Circuit Technology for Cost-Effective FTTX Solutions
- Low Insertion Loss of Only 7.2 dB for Superior Signal Quality
- Broad Wavelength Range From 1260 nm to 1650 nm
- G.657A Fiber for High Flexibility and Bend Insensitivity
- Complies With Telcordia GR-1209 and GR-1221 Industry Standards
- RoHS Compliant Materials for Environmental Safety
