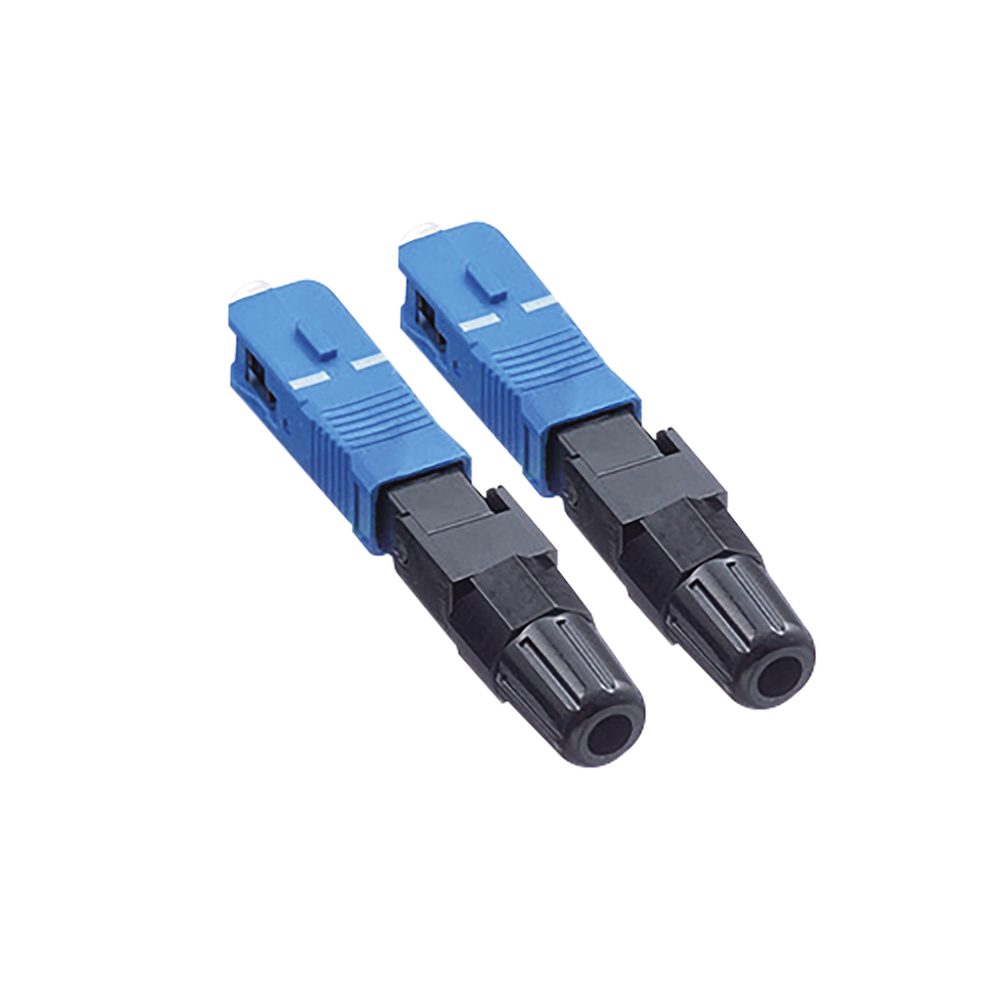

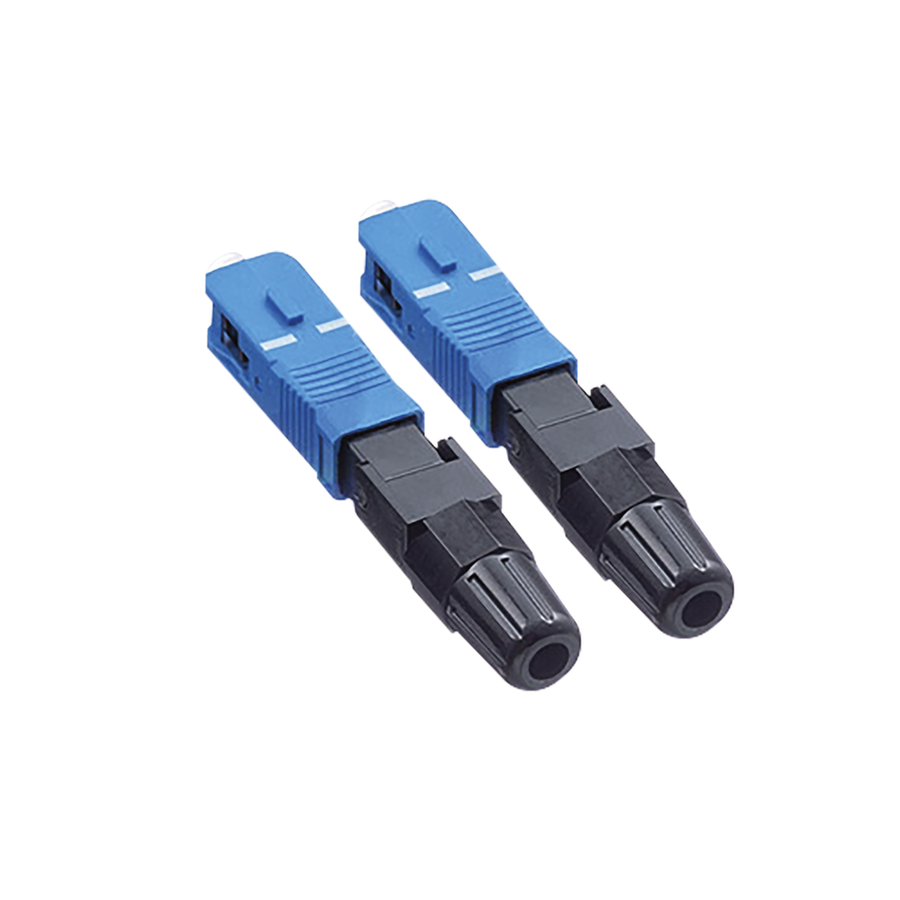

Linkedpro LP-FAB-SC-UPC-01 Field Assembly Fast Connector, SC/UPC, Screw Type
Product identifier
SKU
LP-FAB-SC-UPC-01
$11.71
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The pre-embedded fiber in the ferrule of field assembly optical connector has already been pre-polished at the patchcord workshop. Just strip, cleave and clean the fiber and then insert the fixed-length fiber and connect with the pre-embedded fiber by index-matching gel.
Features:
- Push-tight structure of fiber fastening, high precision of fiber connection;
- Integral structure, simple structure, high stability and reliability, low cost;
- Small size, suitable for narrow space environment;
- Tail is screw type, excellent tensile strength,> 40N / 2min;
- Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
Specifications:
- Connector: SC/UPC
- Model: FTB-SC-UPC-01
- Insertion Loss: ≤0.25dB
- Return Loss: ≥50dB
- Applicable Cable: 2*3mm FTTH Drop Cable
- Tensile Strength: ＞40N/2min
- Operating Temperature: -40C~+85C
- Repeatability: ≤0.2dB
- Repeated assembly: ≥10 times
- Mate and demate: ≥500 times
- Dimension: 2 x 0.4 x 0.4 in (50.3 x 9.8 x 9.8mm)
Key Features
- Pre-polished ferrule for fast field installation without polishing
- Compatible with standard 2x3 mm FTTH drop cables
- Low insertion loss ≤0.25 dB for optimal signal transmission
- High return loss ≥50 dB for superior optical performance
- Robust screw-type design with 40 N pull strength
- Compact dimensions 2.0x0.39x0.39 in for tight spaces
