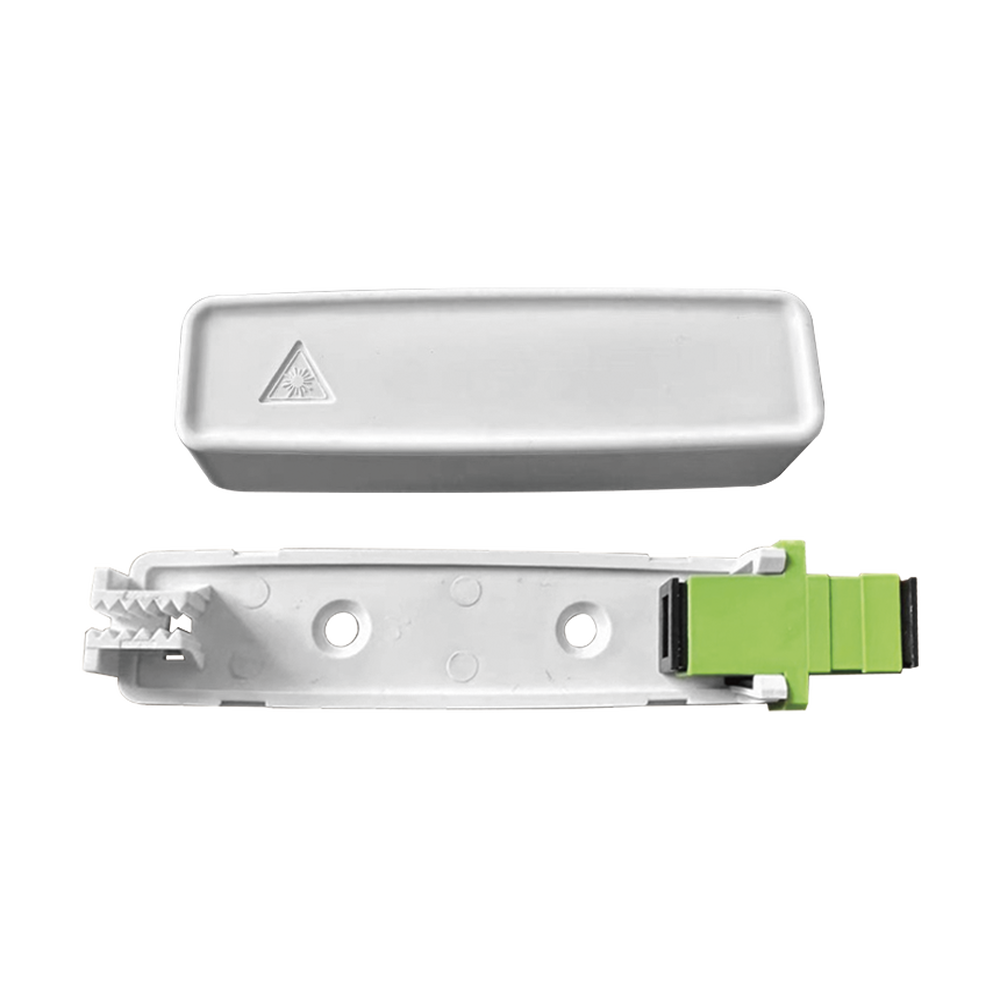

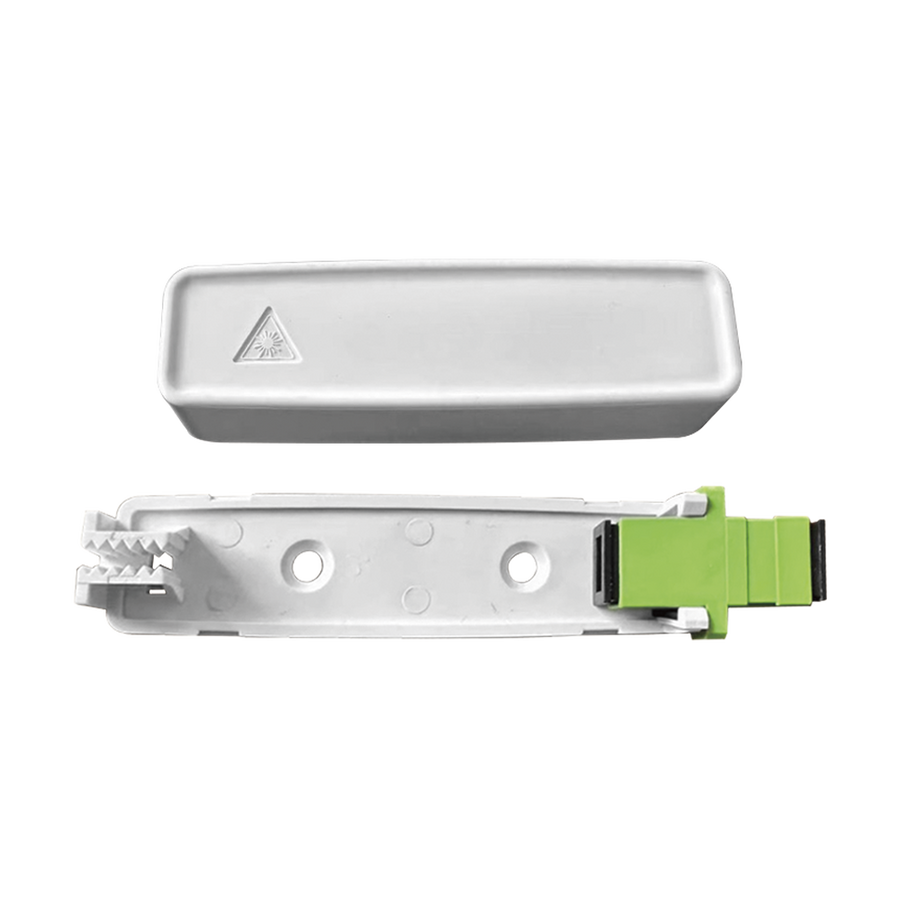

Linkedpro LP-FABFFS1F SC/APC Fiber Optic Terminal Box 1-Core IP20
Product identifier
SKU
LP-FABFFS1F
$11.32
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Description:
The equipment is used as a termination point for the drop cable to connect with ONU internal of apartment in FTTx communication network system. The fiber splicing can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building
Characteristics:
- Suitable for multi type module installation, application in the work area routing subsyste
- The embedded surface box, installation, convenient disassembly with protective door, dust according to customer requirements can be printed LOG
- Made up of ABS+PC/ ABS high quality engineering plastic material with excellent intensity.
- Application of optical fiber with SC/APC
- Can be opened and closed easily.
Especificaciones:
- External dimension(in): 4.1 x 0.43 in
- External dimension(mm): 10.5 x 1.1 cm
- Color: RAL 9010 "White"
- Number of inlet ports: 1
- Number of outlet ports: 1
- Fiber cable diameter of the input port(mm): 2*3
- Capacity(Max): 1 cores
- IP protection level: IP20
- Flammability: UL94-V0
- Neutral salt spray test (NSS): 48h
Key Features
- Integrated SC/APC Coupler for Single Mode Fiber Connectivity
- Compact Wall Mount Design Measuring 4.1 x 0.4 Inches
- UL94-V0 Flame Retardant ABS+PC Engineering Plastic Construction
- IP20 Protection Rating With 48-Hour Salt Fog Resistance
- Single Input/Output Port for 2x3 mm Fiber Cable Management
- Ideal for FTTH/FTTB Apartment Building Fiber Network Installations
