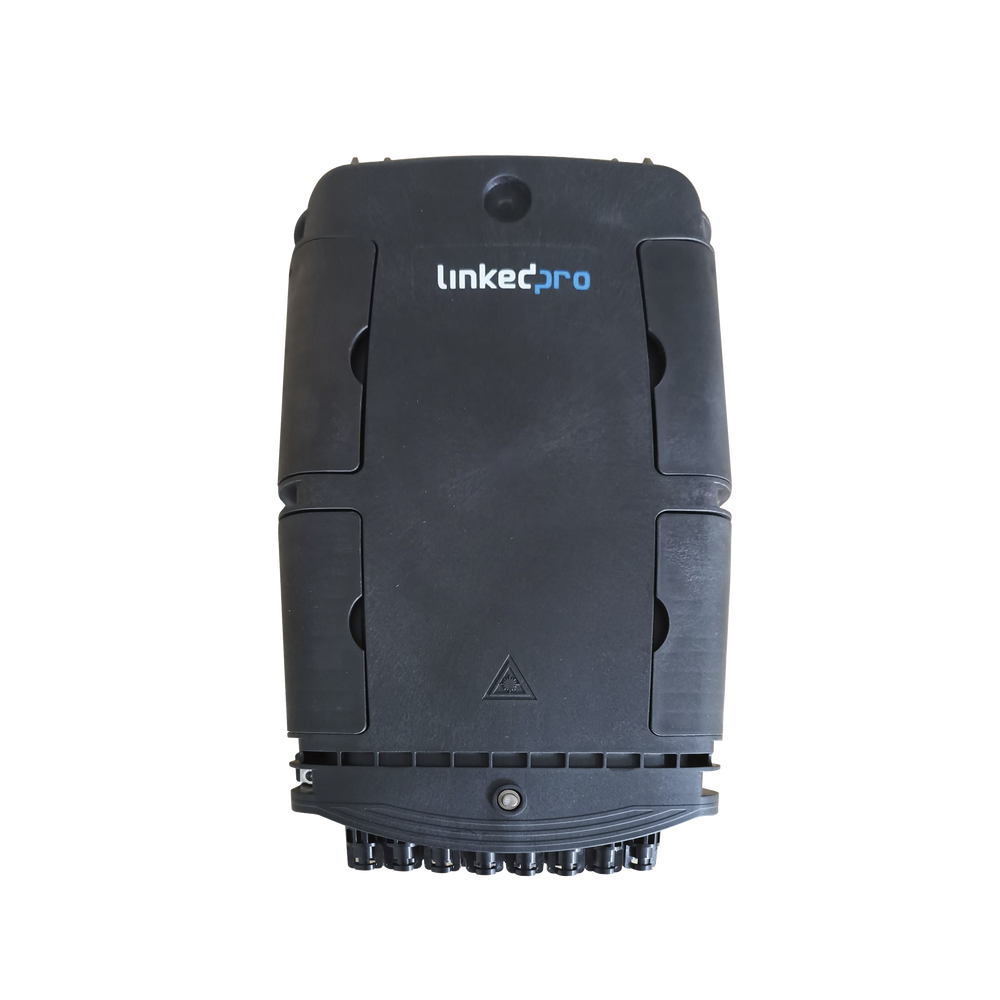

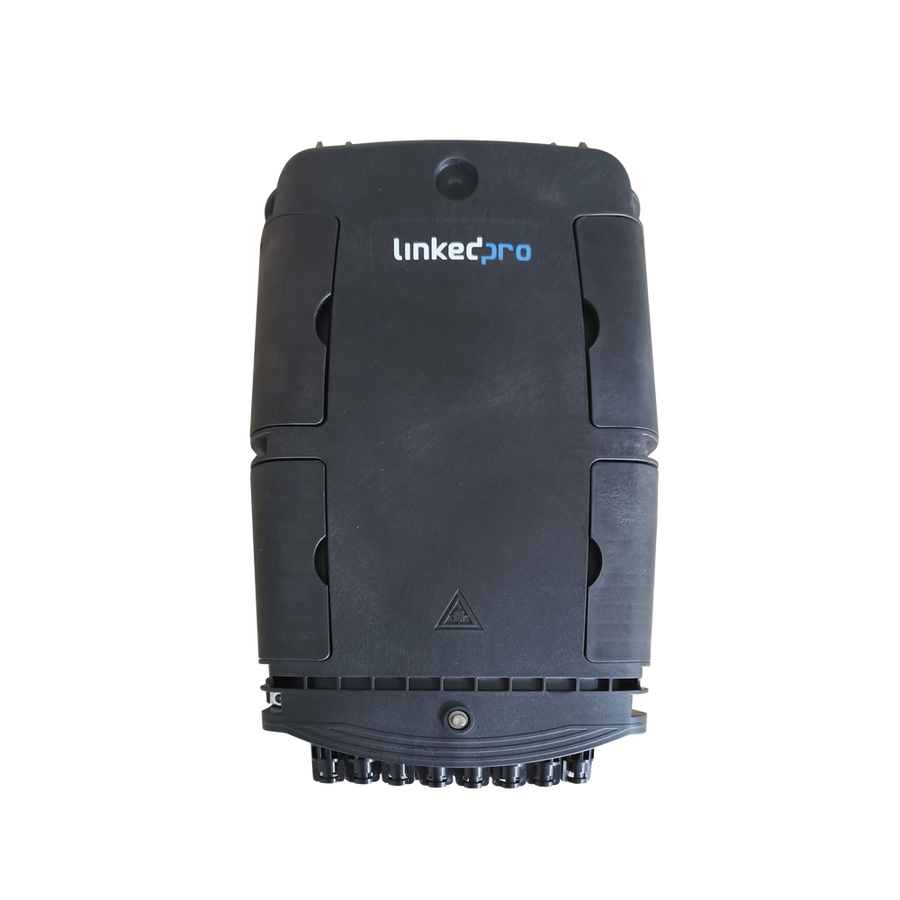

Linkedpro LP-PROBOX68-16A Fiber Optic Distribution Box IP68 16-Port FTTx
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection (IP68) and management for the FTTx network building.
Characteristics
• Advanced structure design, easy operation and reasonable routing.
• Material: PP or PC+ABS.
• Moisture proof, waterproof, dust-proof, anti-aging.
• Protection level up to IP68.
• 1 oval optical cable entry, 2 branch optical cable entries and 16 pcs of household
• Installation method: pole-mounted, aerial-mounted, wall-mounted.
Specifications
| Item | Specifications | Remark |
| External dimension(mm) | 378*255*116(A*B*C) | |
| Installation hole position(mm) | 215*266*239(D*E*F) | |
| Color | Black | Customizable |
| Size and quantity of optical cable hole | 1 oval optical cable entry, 2 branch optical cable entries and 16pcs of household | |
| Fusion capacity(Max) | 36 | Tray A ,12×3=36, 2 layers of heat-shrinkable splice protection sleeve. |
| 48 | Tray B, 8×6=48, 1 layer of heat-shrinkable splice protection sleeve. | |
| 72 | Tray C, 12×6=72, 1 layer of heat-shrinkable splice protection sleeve. | |
| 72 | Tray D,Tray E, 24×3=72, 2 layers of heat-shrinkable splice protection sleeve. | |
| Micro PLC Splitter | 1×2 |
Splitter size：60x7x4mm. Can be installed in type A and type E splicing tray, 1 PC per splicing tray. |
| 1×4 | ||
| 1×8 | ||
| 1*16 |
Splitter size: 60x12x4mm. Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing tray. | |
| Into the largest cable diameter (mm) | á´“15 | * Note: Provide the type and diameter of the optical cable when purchasing, to matching the appropriate sealing plug to ensure the sealing performance. |
| Maximum size of bifurcation hole (mm) | á´“12 | |
| Cable outlet size(mm) | 2*3~á´“7 | |
| IP protection level | IP68 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |
Key Features
- IP68 Rated for Complete Water and Dust Protection
- Supports up to 72 Fiber Fusion Splicing Capacity
- Compatible With 1x16 PLC Micro Splitter Modules
- Modular Design for Wall, Pole, or Aerial Mounting
- UV-Resistant PC+ABS Construction for Outdoor Durability
- Multiple Cable Entry Points for Flexible Installation
