LINKEDPRO
Linkedpro LPOC-ADSS-48C-S100/4KM ADSS Aerial Fiber Optic Cable 48-Fiber
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
ADSS All-Dielectric Fiber Cable – Utility-Grade for Aerial Deployment
The All-Dielectric Self-Supported (ADSS) fiber cable from LinkedPro by FiberHome is engineered for long-span aerial installations between poles, ideal for ISP backbones, utility networks, rural broadband, and municipal fiber deployments.
Built with aramid yarn strength members and a rugged HDPE outer jacket, this cable delivers high tensile strength, UV protection, moisture resistance, and zero-metal interference—perfect for high-voltage environments and long-term outdoor exposure.
- All-dielectric construction (no metallic elements)
- UV-resistant HDPE jacket designed for harsh outdoor conditions
- Aramid-reinforced for high-tension utility spans
- Ideal for FTTH, middle-mile, and distribution/backbone networks
Product Overview
ADSS fiber cable designed for aerial pole-to-pole installation with no messenger wire required. Reinforced with aramid yarn for superior tension handling and safe deployment near high-voltage utility lines.
Shipping Notice:
- Free shipping to major U.S. metro areas
- Forklift required for orders of 10+ reels
- Delivered on industrial-grade reels for safe handling
Technical Specifications
- Fiber Type: G.652D Single-mode
- Cable Structure: Loose Tube ADSS
- Outer Jacket: UV-resistant HDPE
- Maximum Tension: 405 lbf (1800 N)
- Anti-tracking Rating: 110 kV
- Aerial Span Rating: 328 ft (100 m)
- Crush Resistance: 225 lbf / 4 in (1000 N / 10 cm)
- Bending Radius: 25D installation / 12.5D operation
- Total Fibers: 48 fibers

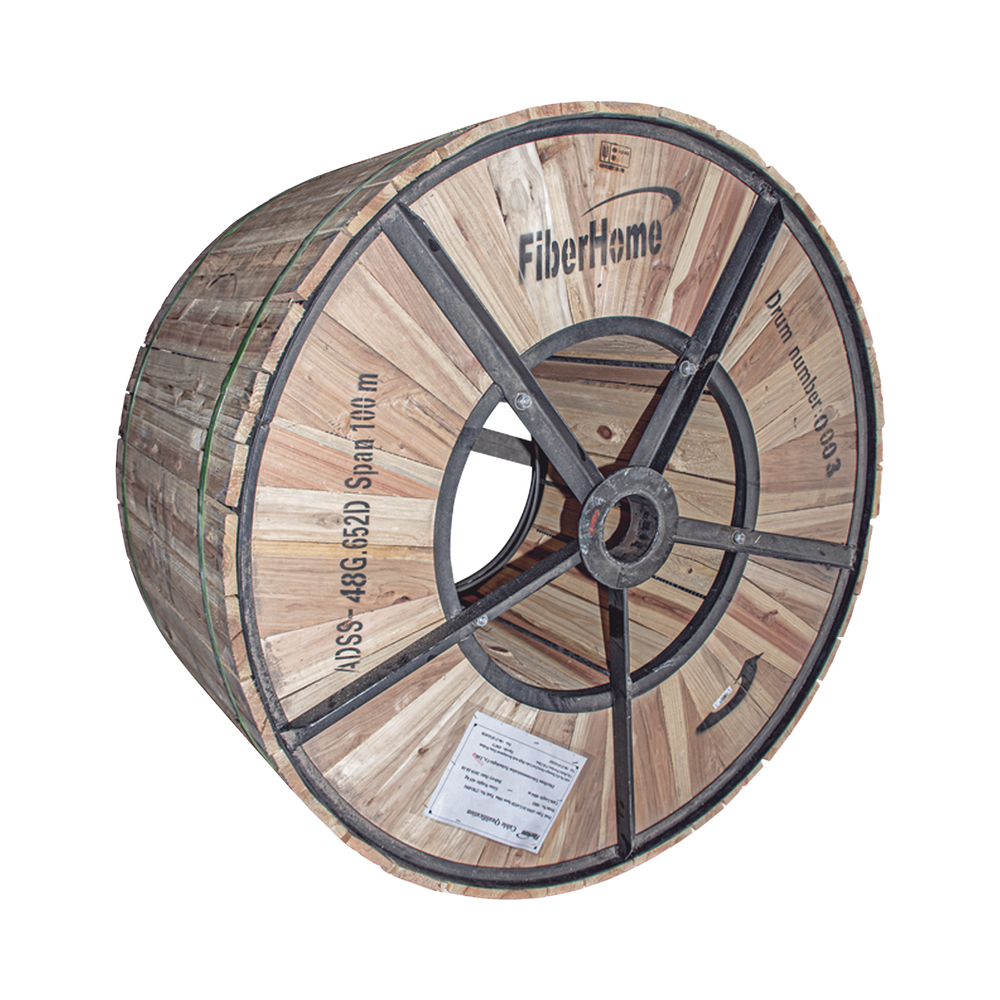

- Reel Length: 13,000 ft (4 km)
Physical Characteristics
- Nominal Diameter: 0.40 in (10.1 ± 0.5 mm)
- Operating Temperature: -4°F to +149°F (-20°C to +65°C)
- Nominal Weight: 275 ± 53 lbs/mile (78 ± 15 kg/km)
- Reel Size (in): 51.2 × 51.2 × 29.5 in
- Reel Size (mm): 1300 × 1300 × 750 mm
- Reel Weight: 1,014 lb (460 kg)
Key Features
- ADSS Design Eliminates Need for Messenger Wire
- 48 Fiber Cores for High-Density Network Applications
- 4 km Continuous Length Reduces Splicing Requirements
- 328 ft Maximum Span Between Support Structures
- All-Dielectric Construction for Electrical Safety
- Aerial Deployment Without Additional Support Cables
