Linkedpro LPOC-ADSS-72C-S100/4KM 72-Fiber ADSS Aerial Fiber Optic Cable 4KM
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
72-Fiber ADSS Aerial Fiber Cable – All-Dielectric, High-Capacity
The ADSS (All-Dielectric Self-Supported) optical fiber cable from LinkedPro by FiberHome is designed for aerial pole-to-pole installations without requiring a messenger wire. Its fully dielectric design, reinforced with aramid yarns, provides excellent long-term mechanical tension and eliminates electrical hazards during deployment.
This 72-fiber ADSS cable is ideal for backbone infrastructure, metro distribution rings, and large-scale FTTH rollouts. It offers high fiber density, environmental durability, and robust long-term network performance.
Overview
ADSS fiber cable is engineered for aerial deployment between poles without the need for a messenger wire. Strength is provided by aramid yarns, enabling excellent mechanical tension performance. The fully dielectric construction ensures zero electrical interference when installed near power lines.
Shipping Note:
- Free shipping to major cities (extended areas not included)
- Forklift or ramp required for orders of 10+ reels
- Heavy-duty reels designed for secure transport and handling
Technical Specifications
- Single-Mode G.652D Loose-Tube ADSS Optical Fiber
- Outer Jacket: HDPE (High-Density Polyethylene)
- Maximum Long-Term Tension: 404 lbf (1800 N)
- Anti-tracking rating: up to 110 kV
- Pole Span (recommended): 328 ft (100 m)
- UV- and moisture-resistant jacket
- Minimum Bending Radius:
• Installation: 25D
• Operation: 12.5D - Crush Resistance: 225 lbf / 4 in (1000 N / 10 cm)
- Fiber Count: 72 fibers
- Outer Sheath Color: Black

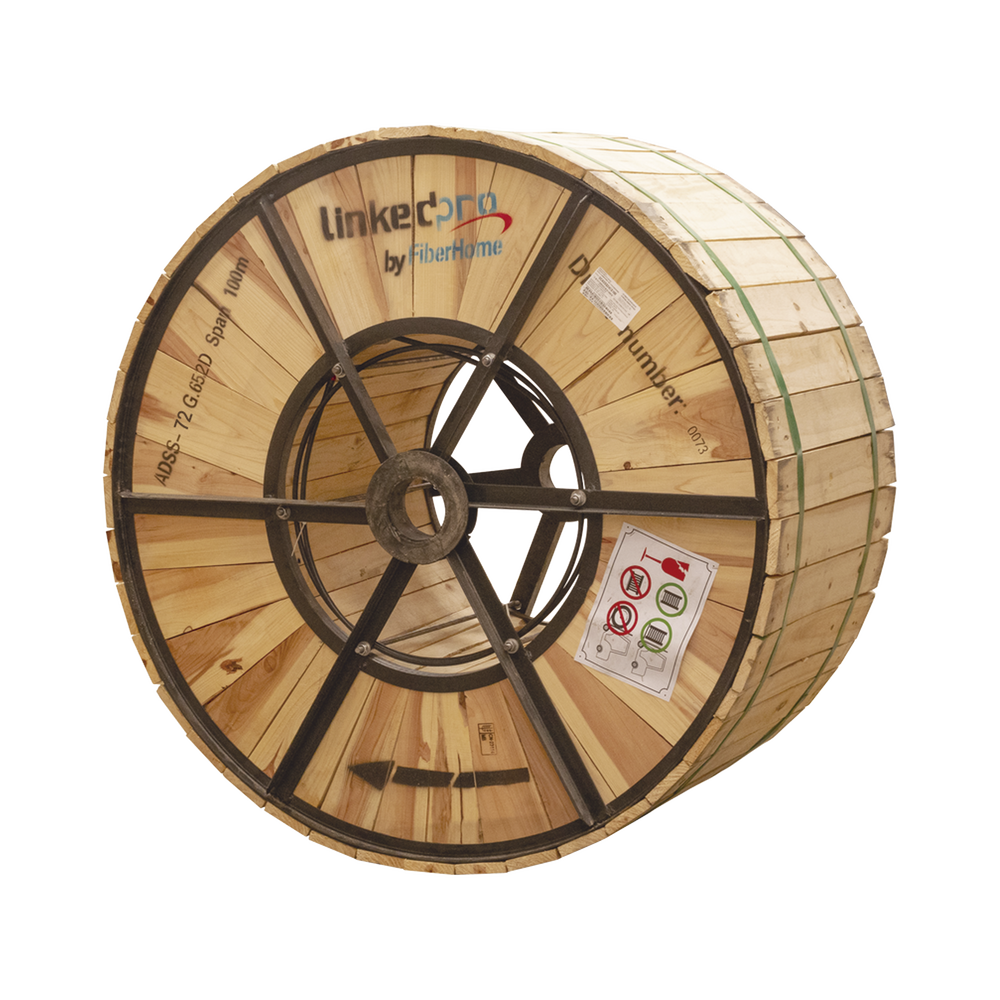

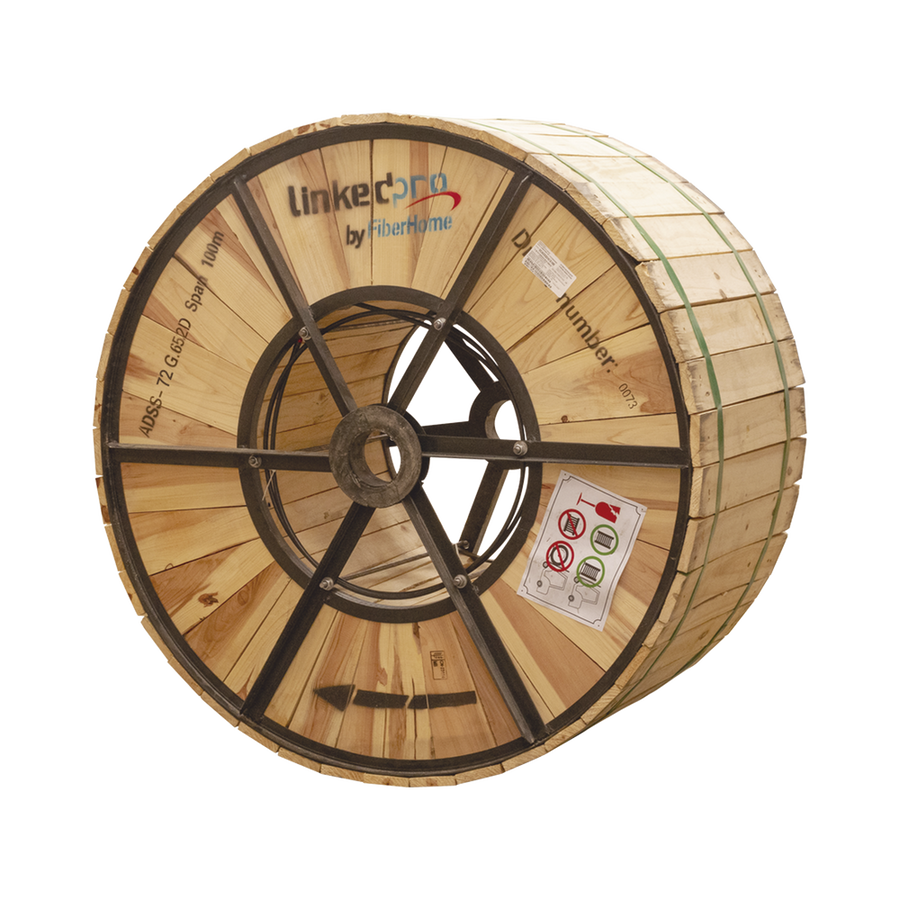

- Supplied per 13,000 ft (4 km) reel
Physical Characteristics
- Nominal Diameter (D): 0.40 in (10.1 ± 0.5 mm)
- Operating Temperature: –4°F to +149°F (–20°C to +65°C)
- Nominal Weight: 275 ± 53 lbs/mile (78 ± 15 kg/km)
- Reel Dimensions (in): 51.2 × 51.2 × 29.53
- Reel Dimensions (mm): 1300 × 1300 × 750
- Gross Reel Weight: 1,014 lb (460 kg)
Key Features
- ADSS Construction Eliminates the Need for Messenger Wire
- 72 Single Mode Fibers for High-Capacity Network Backbones
- All-Dielectric Design Provides Complete Electrical Isolation
- Self-Supporting Design for Aerial Installation Without Support Cables
- 4 km Drum Length Reduces Splicing and Installation Time
- 100 ft Span Capability Between Support Structures
