FIBERHOME
Fiberhome LPSC-220J-C104 IP68 Fiber Optic Splice Closure 48-Fiber
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details

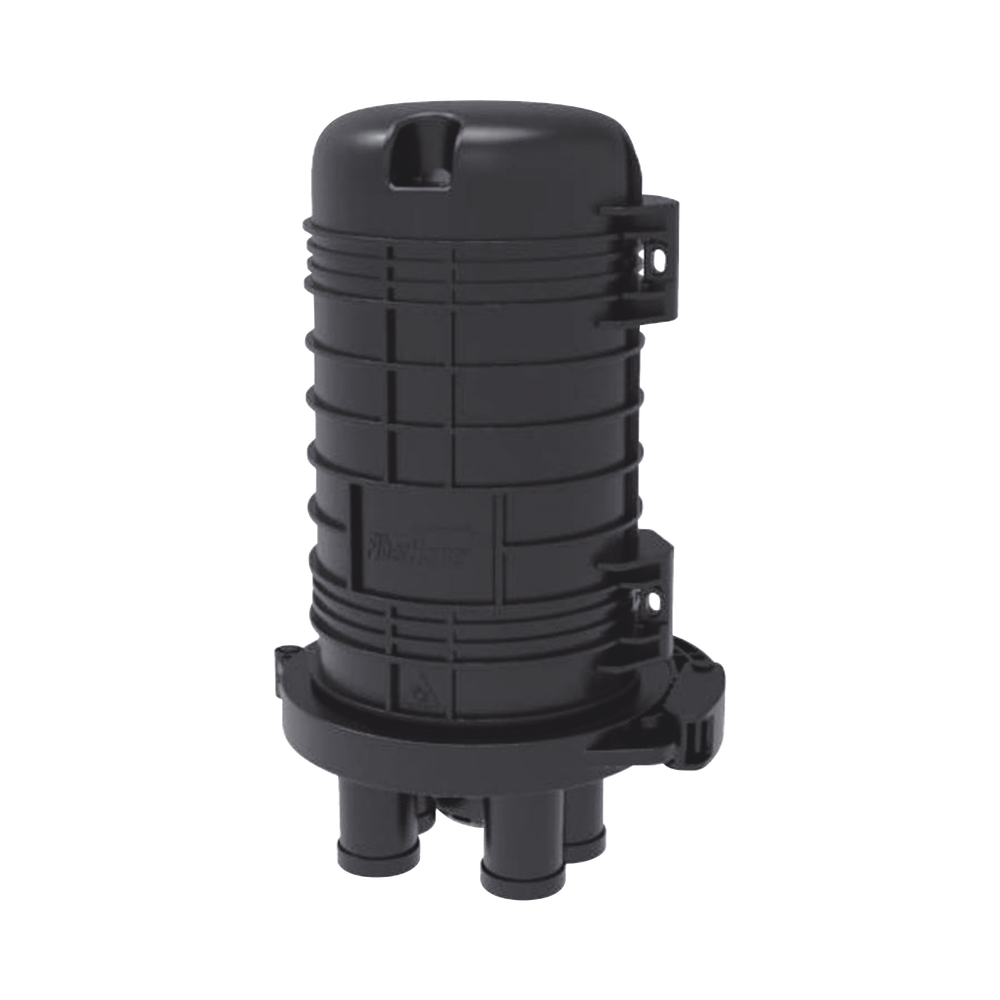

FOSC-220J-C104 Dome Fiber Optic Splice Closure — IP68 Outdoor Protection
The FOSC-220J-C104 series from FiberHome is a dome-base, mechanically sealed fiber optic splice closure designed for harsh ODN/FTTx outdoor environments. It supports duct, aerial, buried, and man-hole installations, making it suitable for mid-span, branching, and direct splice applications. Flexible splice trays and a variety of accessories allow easy adaptation to multiple network scenarios, while strict testing ensures long-term stability and reliability.
Key Features
- Dome-base housing with mechanical sealing for quick re-entry.
- High-strength modified polypropylene for outdoor durability.
- Supports mid-span operation without cutting the main cable.
- Flexible grommets compatible with most standard cable sizes.
- Splice trays support all common fiber cable constructions.
- Allows installation of non-connectorized splitters (not included).
- Easy to open, maintain, and expand as the network grows.
- Optimized internal routing for clean fiber management.
- Environmental protection rating: IP68.
Applications
- Outdoor fiber access networks (FTTx / ODN).
- Duct, aerial, buried, and man-hole installation.
- Feeder, distribution, and drop cable splice points.
- Includes aerial mounting accessories.
Specifications
- Dimensions: 8.66 in × 14.17 in (Ø 220 × 360 mm)
- Operating temperature: -40°F to +149°F (-40°C to +65°C)
- Splice capacity: 48 fibers (4 trays × 12 fibers each).
Included Accessories
- 48 × splice heat-shrink sleeves (1.57 in / 40 mm).
- 20 × nylon ties (0.12 × 4.72 in / 3 × 120 mm).
- 1 × bare fiber protective sleeve (6.56 ft / 2 m).
- 4 × branch clamp nuts.
- 1 × branch nut wrench.
- 1 × Allen wrench.
- 1 × oval seal ring-A (Ø 0.39–0.55 in / 10–14 mm).
- 4 × round seal rings-A (Ø 0.39–0.55 in / 10–14 mm).
- 2 × round seal rings-D (Ø 0.19–0.27 in / 5–7 mm).
- 1 × insulation tape (9.84 ft / 3 m).
- 1 × line-mounting accessory set.
- 1 × cable-mounting accessory set.
*When using Mini Figure-8 fiber (OC-FIG8-06C, OC-FIG8-12C), it is recommended to apply additional sealing mud at the cable entry point.
Key Features
- IP68 Rating for Complete Water and Dust Protection
- Vertical Mount Design for Easy Installation Access
- Accommodates up to 48 Fiber Optic Cores
- Dome-Shaped Housing for Enhanced Durability
- Universal Compatibility With Various Cable Types
- Easy Maintenance and Re-Entry Capability
