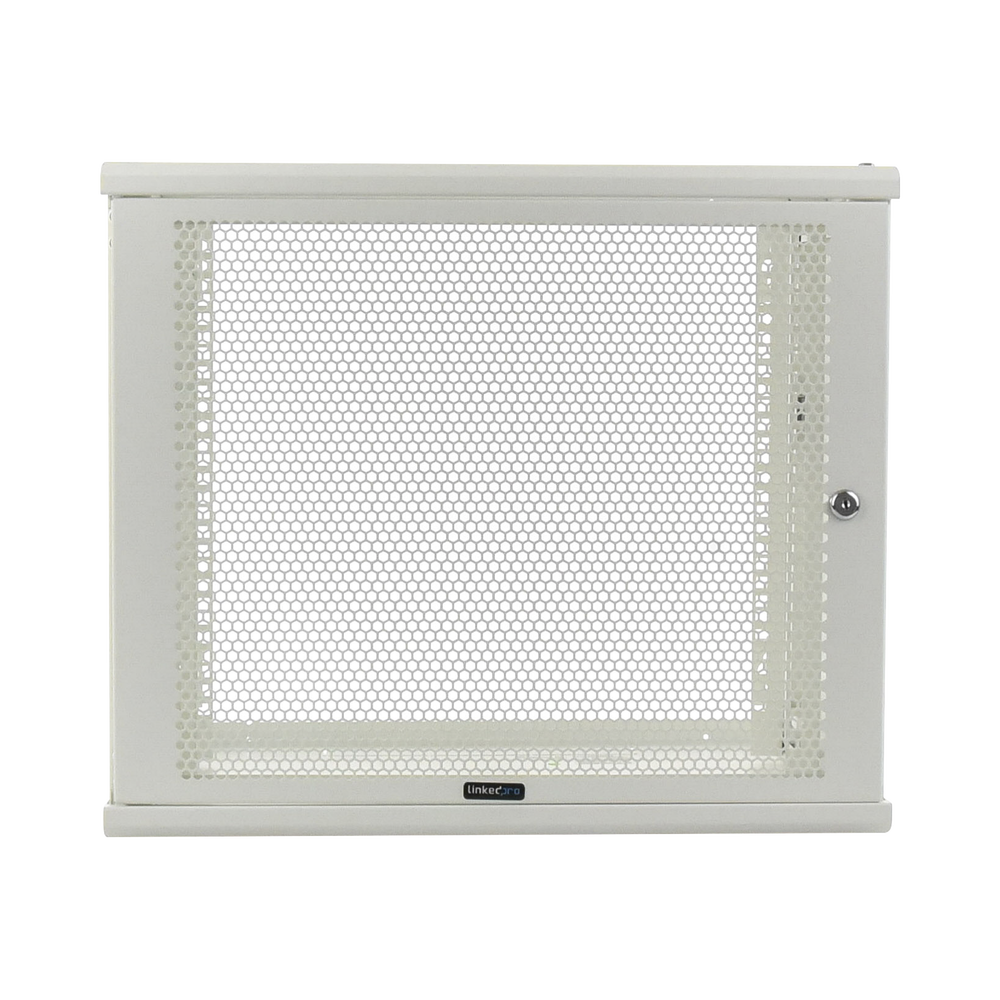

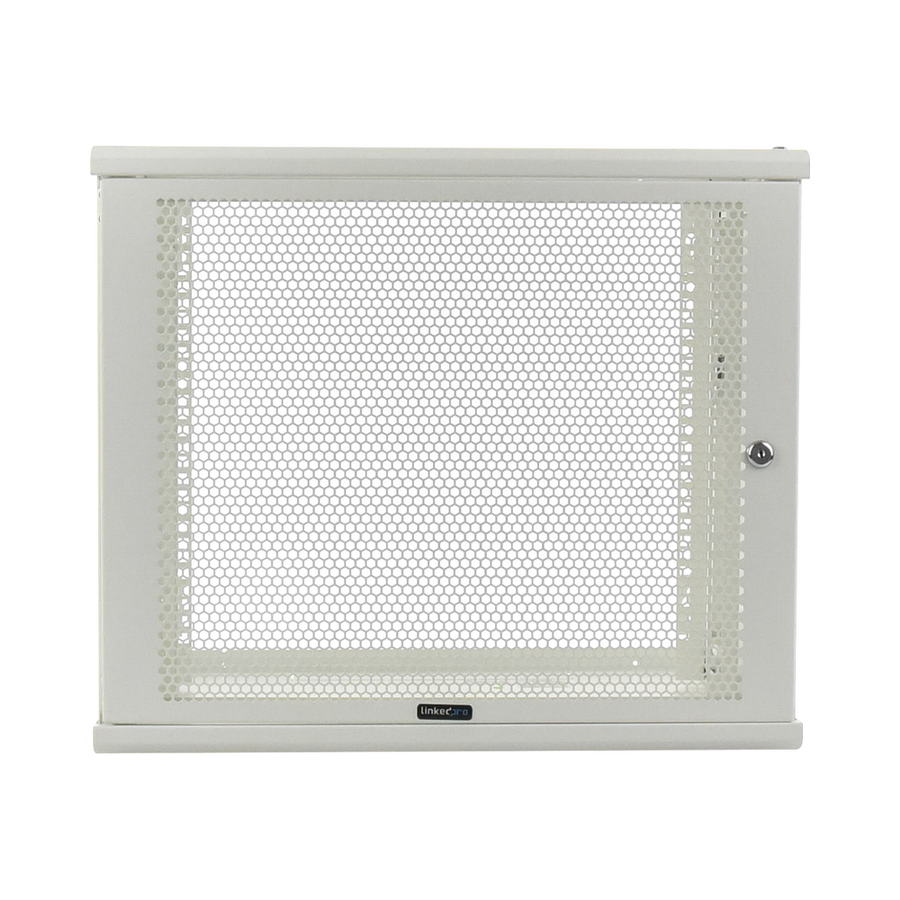

Linkedpro LW-06-05-09-UW 9U Wall-Mount Rack Enclosure 62% Perforated Door
Product identifier
SKU
LW-06-05-09-UW
$162.49
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Highlighted Features:
- Installation Type: Wall-Mounted.
- Multi-perforated metal door (62%).
- Removable sides.
- The 4 rack posts can be adjusted for better equipment installation (203-452mm).
- Door security lock.
- Removable door with reversible opening option.
- SHIPPED ASSEMBLED.
Application:
- Copper and fiber cabling management.
- Backup units.
- Internet service distribution.
- Video surveillance systems.
- Equipment Includes:
- Metallic body (side panels, rack posts).
- Black screws for assembly.
- Screws for installing 6 equipment on rack posts.
Physical Features:
- Application: Indoor.
- High-quality steel.
- Manufactured according to ANSI/TIA RS-310-D.
- Cabinet weight: 26.23 lbs (11.9 kg).
- Maximum load capacity: 132.28 lbs (60 kg).
- Dimensions: 22.44 x 19.21 x 17.71 inches (Width x Height x Depth) (570 x 488 x 450 mm).
- Rack Units: 9.
- Maximum working depth (fully extended): 14.96 inches (380 mm).
- Color: White.
- Polyester-based baked paint.
Key Features
- Perforated Metal Door With 62% Ventilation for Optimal Airflow
- Adjustable Rack Posts From 8 to 18 Inches for Equipment Flexibility
- High-Strength Steel Construction With 132 lb Maximum Load Capacity
- Removable Side Panels and Reversible Door for Easy Installation
- Baked Polyester Finish in White for Durable Corrosion Resistance
- Modular Design Supports Both Copper and Fiber Optic Cabling
