LINKEDPRO

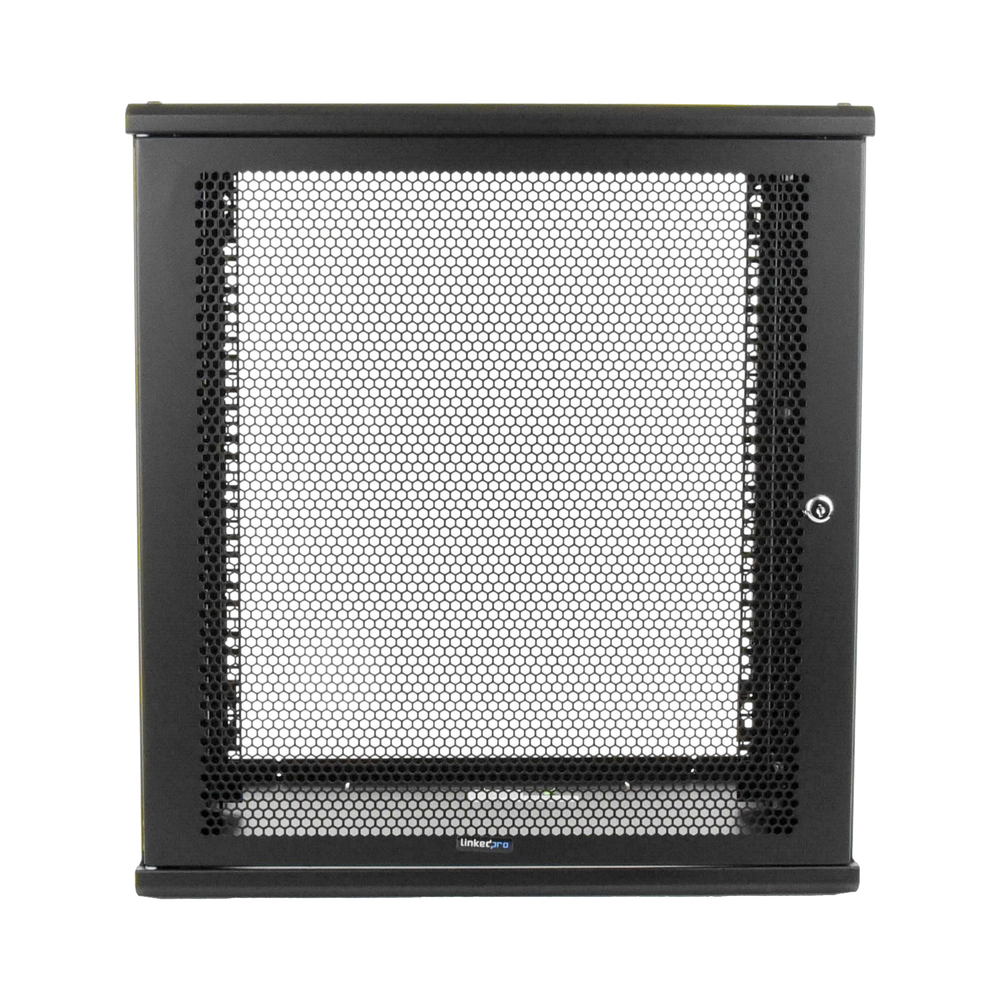

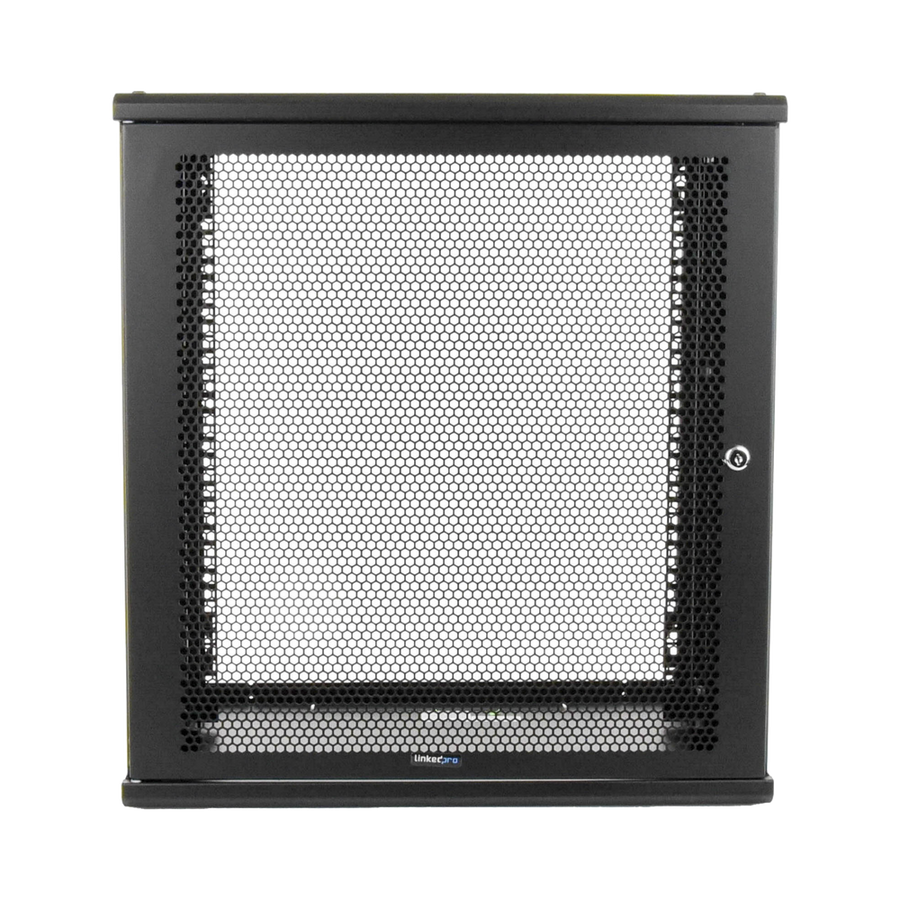

Linkedpro LW-06-05-12-UB 12U Wall-Mount Server Cabinet 132lb Capacity
Product identifier
SKU
LW-06-05-12-UB
$137.24
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Outstanding Features:
- Installation Type: Wall.
- Multi-perforated metal door (62%).
- Detachable sides.
- The 4 Rack Posts can be moved in or out for better equipment installation (203-452mm).
- Security sheet on the door.
- Detachable door and option to change the opening direction.
- Shipped ASSEMBLED.
Application:
- Management of copper and fiber cabling.
- backup units.
- Distribution of internet services.
- Video surveillance systems.
The Equipment includes:
- Metal body (side covers, rack posts)
- Black screws for assembly.
- Screws for installation of 6 units in rack posts.
- Packing.
Physical Characteristics:
- Application: Indoor.
- Top quality steel.
- Manufactured in accordance with ANSI/TIA RS-310-D.
- Cabinet weight: 26.23 lb (11.9 kg.)
- Maximum load capacity: 132.28 lb (60 kg)
- Dimensions: 22.44 x 24.44 x 17.71 in (Width x Height x Depth).
- Dimensions (mm): 570 x 621 x 450
- Rack Units: 12
- Max. working depth (full stop): 13.15 in (334 mm)
- Color: Black.
- Paint by polyester-based baking process.
Key Features
- Perforated Metal Door With 62% Ventilation for Optimal Cooling
- Heavy-Duty Construction Supports up to 132 lb Equipment Load
- Adjustable Depth From 8 to 18 Inches for Flexible Installation
- ANSI/TIA RS-310-D Certified Steel Structure for Reliability
- Security Lock and Reversible Door for Enhanced Access Control
- Compact Dimensions 22 x 24 x 18 Inches for Space Efficiency
