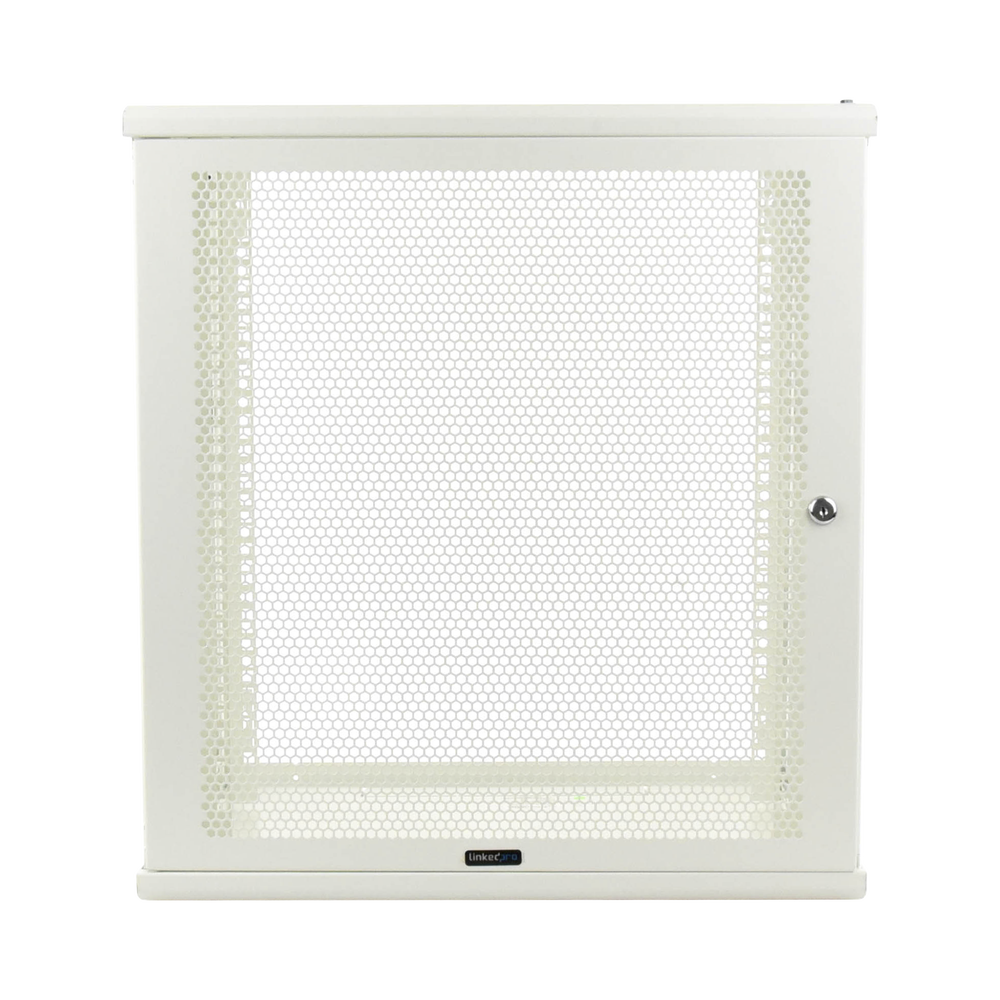

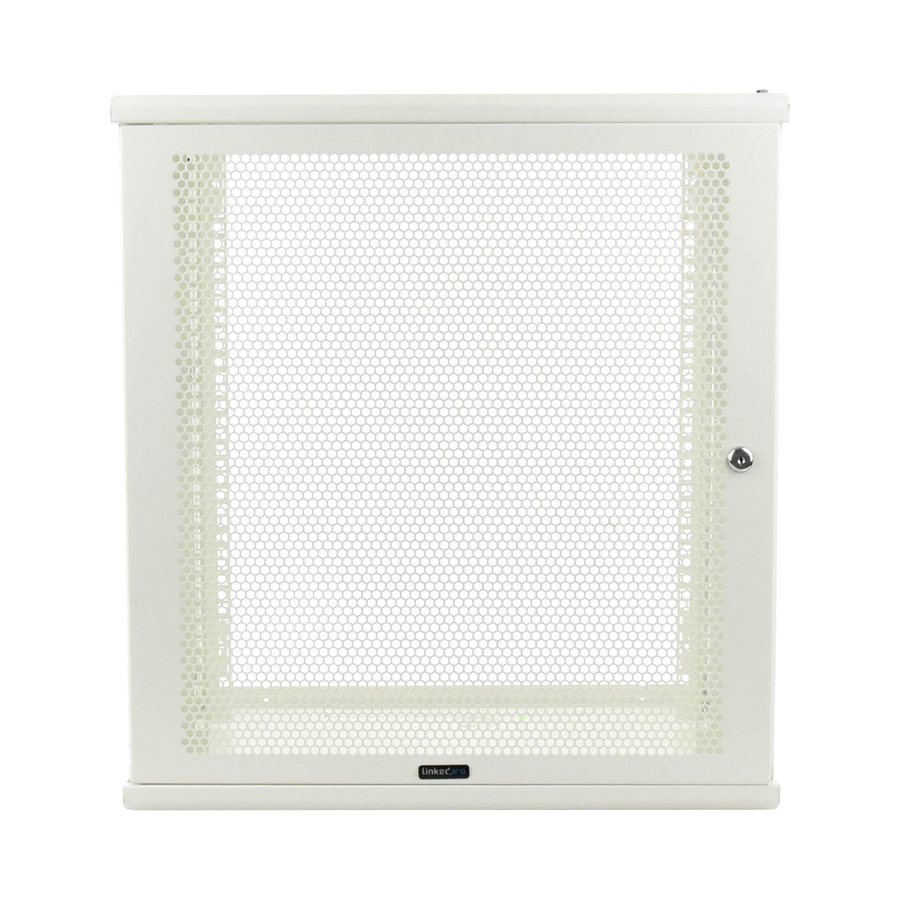

Linkedpro LW-06-05-12-UW 12U Wall Mount Rack Enclosure Perforated Door
Product identifier
SKU
LW-06-05-12-UW
$112.49
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Highlighted features:
- Installation Type: Wall mount.
- Multiperforated metal door (62%).
- Removable side panels.
- The 4 rack posts can be moved closer or further apart for better equipment installation (8"-18").
- Door with security lock.
- Removable door and option to change opening direction.
- Shipped fully ASSEMBLED.
Application:
- Copper and fiber cabling management.
- Backup units.
- Internet service distribution.
- Video surveillance systems.
- Equipment includes:
- Metal body (side panels, rack posts).
- Black assembly screws.
- Screws for installing 6 equipment on rack posts.
Physical characteristics:
- Application: Indoor.
- High quality steel.
- Manufactured according to ANSI/TIA RS-310-D.
- Cabinet weight: 26.2 lbs.
- Maximum load capacity: 132.3 lbs.
- Dimensions: 22.44" x 24.48" x 17.71" (Width x Height x Depth).
- Dimensions (mm): 570 x 621 x 450.
- Rack units: 12
- Max. working depth (full stop): 13.15 in (334 mm)
- Color: White.
- Polyester base baked paint process.
Key Features
- Adjustable Depth From 8 in to 18 in for Custom Equipment Installation
- Perforated Metal Front Door With 62% Ventilation Open Area
- Removable Side Panels With Quick-Release Fasteners
- Four Rack Posts Can Be Moved or Removed for Flexibility
- High-Quality Steel Construction With Baked Polyester Finish
- Designed for Copper and Fiber Cable Management Applications
Product support
Need help confirming the right configuration?
Share the model, application or current system. A specialist will help you confirm compatibility.
