ICOM M37 31 USA MARINE VHF RADIO 6W IP57 156-163MHZ
ICOM

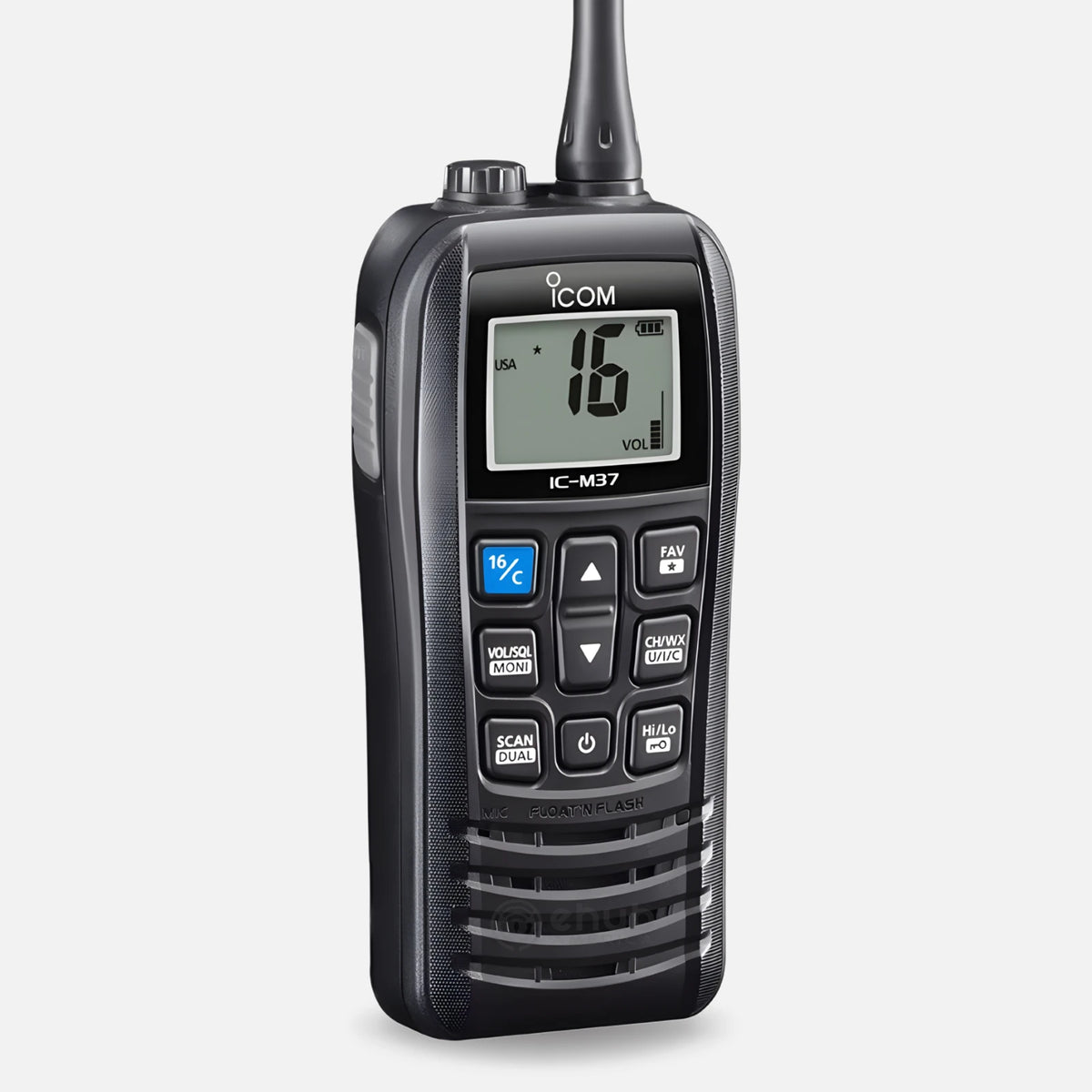

Icom M37 31 USA Marine VHF Radio 6W IP57 156-163MHz
SKU
6 W VHF marine handheld transceiver with IP57 waterproof protection and Float’n.
$275.00
16 in stock
- Ships from our Miami warehouse · in-stock same-day, most orders within 24h
- Genuine products · real support in EN · ES · PT
- Easy 30-day returns & RMA support
RF
- Usable Channel Groups
- Usable Channel Groups: INT, USA, CAN, WX
- Emission
- Emission: 16K0G3E
- Output Power
- Output Power: 6 W / 1 W
- Max Frequency Deviation
- Max Frequency Deviation: ±5.0 kHz
- Frequency Stability
- Frequency Stability: ±10 ppm
- Spurious Emissions
- Spurious Emissions: –68 dBc typical
- Sensitivity (12 dB SINAD)
- Sensitivity (12 dB SINAD): 0.25 μV typical
- Squelch Sensitivity
- Squelch Sensitivity: 0.25 μV typical
- Adjacent Channel Selectivity
- Adjacent Channel Selectivity: 70 dB typical
- Intermodulation
- Intermodulation: 70 dB typical
Hardware
- Antenna Impedance
- Antenna Impedance: 50 Ω
Physical
- Operating Temperature
- Operating Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Ingress Protection
- Ingress Protection: IP57
General
- TX
- TX: 156.025–157.425 MHz
- RX
- RX: 156.050–163.275 MHz
- TX (6 W / 1 W)
- TX (6 W / 1 W): 2.75 A / 1.0 A
- RX (Max Audio, Internal/External)
- RX (Max Audio, Internal/External): 0.4 A / 0.2 A
- Spurious Response
- Spurious Response: 70 dB typical
- Hum and Noise
- Hum and Noise: 40 dB
- Internal Speaker (8 Ω)
- Internal Speaker (8 Ω): 0.7 W typical
- External Speaker (4 Ω)
- External Speaker (4 Ω): 0.3 W typical
- Military Standard
- Military Standard: MIL-STD-810-G (and equivalent -C, -D, -E, -F)
