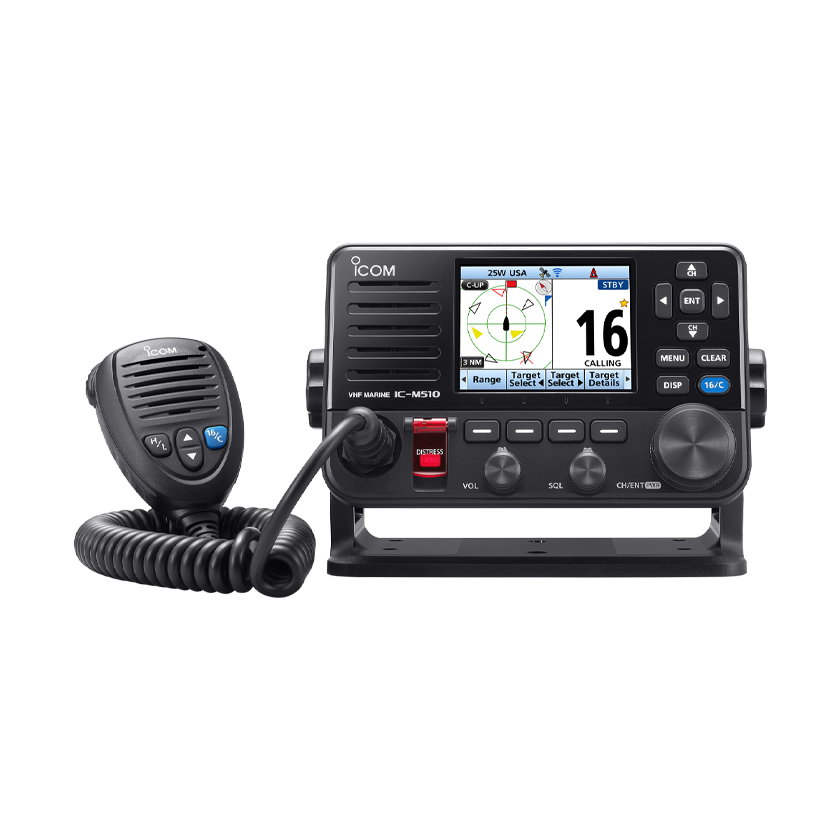

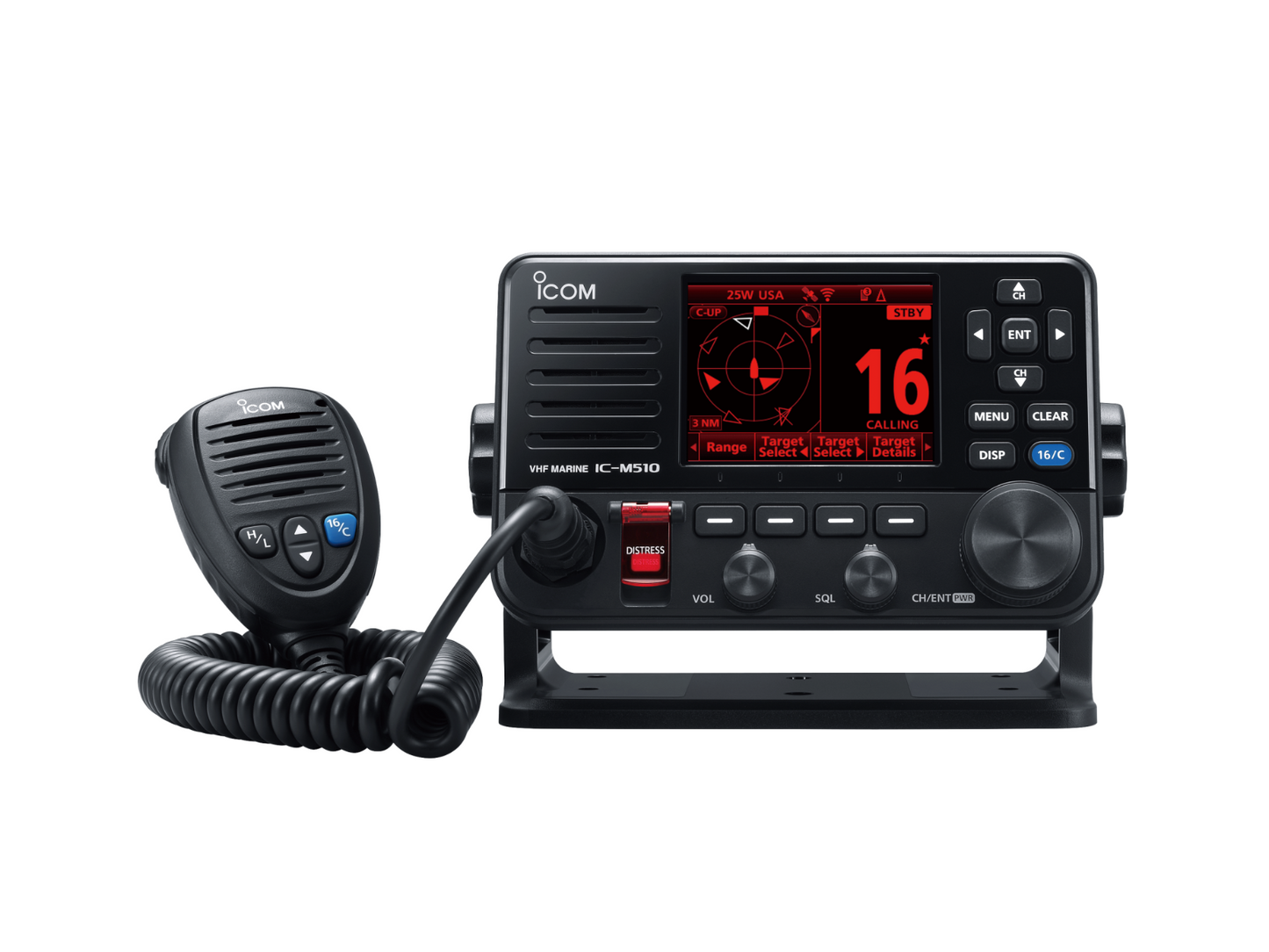

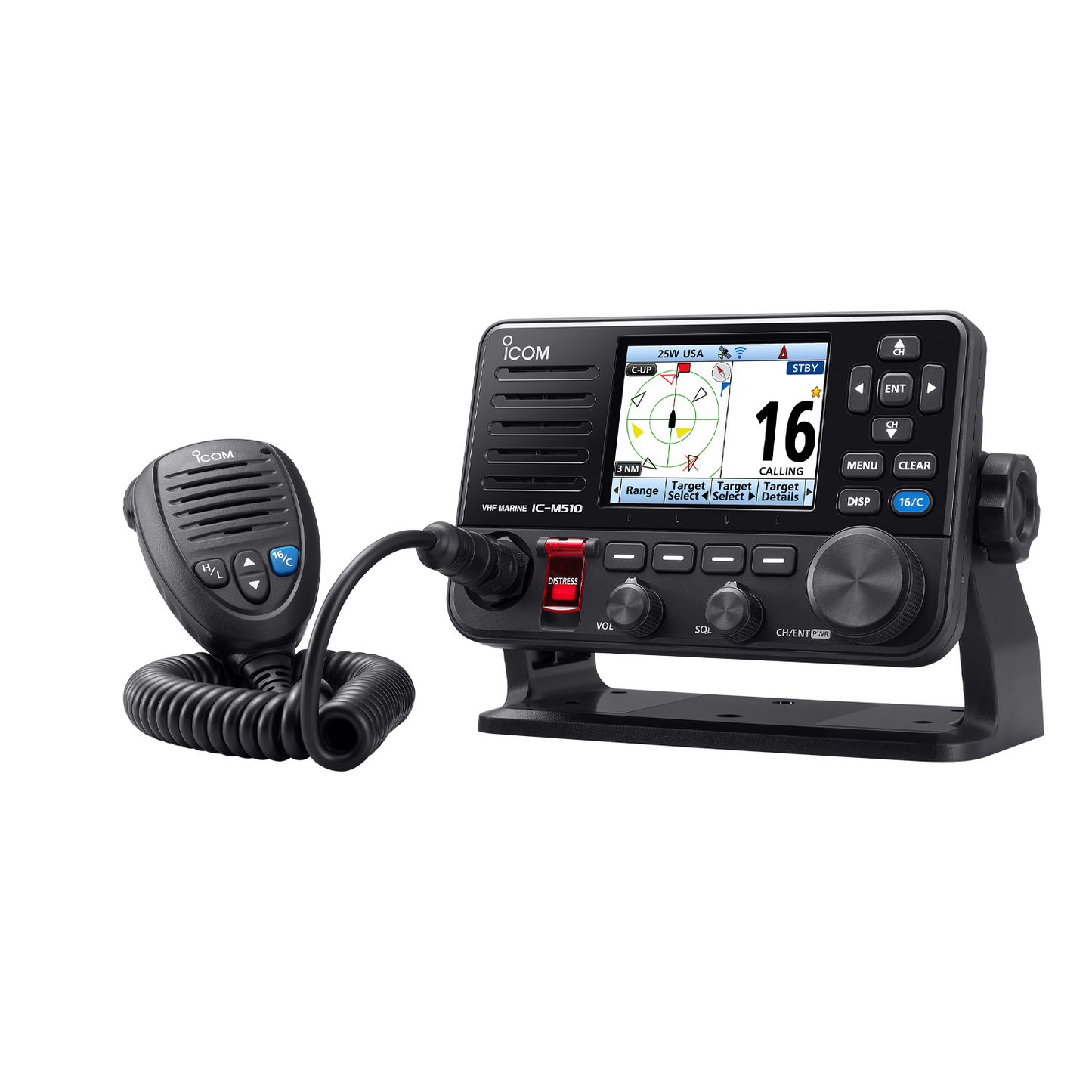

Icom M510 EVO VHF Fixed Mount Class D DSC with AIS

Icom M510 EVO VHF Fixed Mount Class D DSC with AIS

$719.99
$719.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 10 left
Download PDF

Tags: Icom, Marine radio

View full details

Class-D DSC VHF Marine Radio with NMEA 2000™ and WLAN Function

The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology. Its built-in class D DSC provides essential maritime communication, supporting safety on the water. Integration with built-in NMEA 2000™ connectivity and two-way hailer/RX hailer functions enhances your experience at sea even more. Simple remote control through a smart device enables an unprecedented onboard communication experience. In addition, the product features a color display, navigation functions, and a stylish design that won an iF design award. It can be used for pleasure boats, fishing boats, sailing, as well as in rescue and public safety.

Use the RS-M500 app (for iOS/Android) to wirelessly control the IC-M510 EVO through the radio’s WLAN feature.  You can use up to three smart devices as a wireless microphone, intercom between a device and the M510, and a simple remote control for specific functions.

Other Features

  • Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
  • IP68 advanced waterproofing (1 m depth of water for 60 minutes)
  • Voice Scrambler with optional UT-112A
  • AquaQuake™ prevents audio degradation from a water-logged speaker
  • Supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet to user's requirement
  • External speaker connection
  • Optional HM-195 CommandMic™ are available
  • Supports 4-digit channels
  • Supplied waterproof flash mount gasket for panel mount


General

Frequency range TX 156.025 ~ 157.425 MHz
RX 156.050 ~ 163.275 MHz
DSC 156.525 MHz
AIS1, 2*1 161.975, 162.025 MHz
Usable channels USA, CAN, INT, WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1
Power supply requirement 13.8 V DC (11.7 ~ 15.9 V DC)
Current drain
(at 13.8 V DC)		 TX 25 W output 5.0 A
RX Max. audio 1.6 A
2.0 A (with HM-195)
4.0 A (with extSP)
7.3 A (with ext SP, RX hailer, and HM-195)
Operating temperature range –20°C ~ +60°C, –4°F ~ +140°F
Antenna impedance 50 Ω
Dimensions (W x X x D) 175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in
Weight (approx.) 730 g, 1.6 lb (not including microphone)

Transmitter

Output power (at 13.8 V DC) 25 W, 1W
Max. frequency deviation ±5 kHz
Frequency tolerance ±0.5 kHz
Spurious emissions Less than −70 dBc (at 25 W)
Residual modulation More than 40 dB
Adjacent channel power More than 70 dB

Receiver

Sensitivity (at 12 dB SINAD)
DSC (1% BER)		 –10 dBμ typical
–1 dBμ emf typical
Adjacent channel selectivity
DSC (1% BER)		 More than 75 dB
More than 73 dBμ emf
Spurious response
DSC (1% BER)		 More than 75 dB
More than 73 dBμ emf
Intermodulation
DSC (1% BER)		 More than 75 dB
More than 68 dBμ emf
Hum and noise More than 40 dB
Audio output power
(at 10% distortion with 4 Ω)

More than 15 W (external speaker)

20 W typical (RX Hailer)

25 W typical (Hailer)

Wireless LAN

Wireless LAN standard IEEE802.11 b/g/n
Authentication and Encryption WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels 1 to 13 (2.4 GHz band)*2
Output power Less than 10 mW/MHz


*1 Only for the Integrated AIS version. *2 May differ depending on the country of use.
Measurements made in accordance with TIA/EIA 603.
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.


Standard
 		 MIL-810 G
Method Procedure
Low Pressure

500.5

I, II
High Temperature

501.5

I, II
Low Temperature

502.5

I, II
Temperature Shock

503.5

I-C
Solar Radiation

505.5

I
Rain

506.5

I
Humidity

507.5

II
Salt Fog

509.5

-
Dust Blowing

510.5

I
Immersion

512.5

I
Vibration

514.6

 I
Shock

516.6

I, IV


Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & Water IP68 Dust-tight and waterproof protection

Supplied Accessories

DC power cable

  • Speaker microphone, HM-205RB
  • Microphone hanger
  • DC power cable
  • Mounting bracket kit
  • Flash mount gasket
