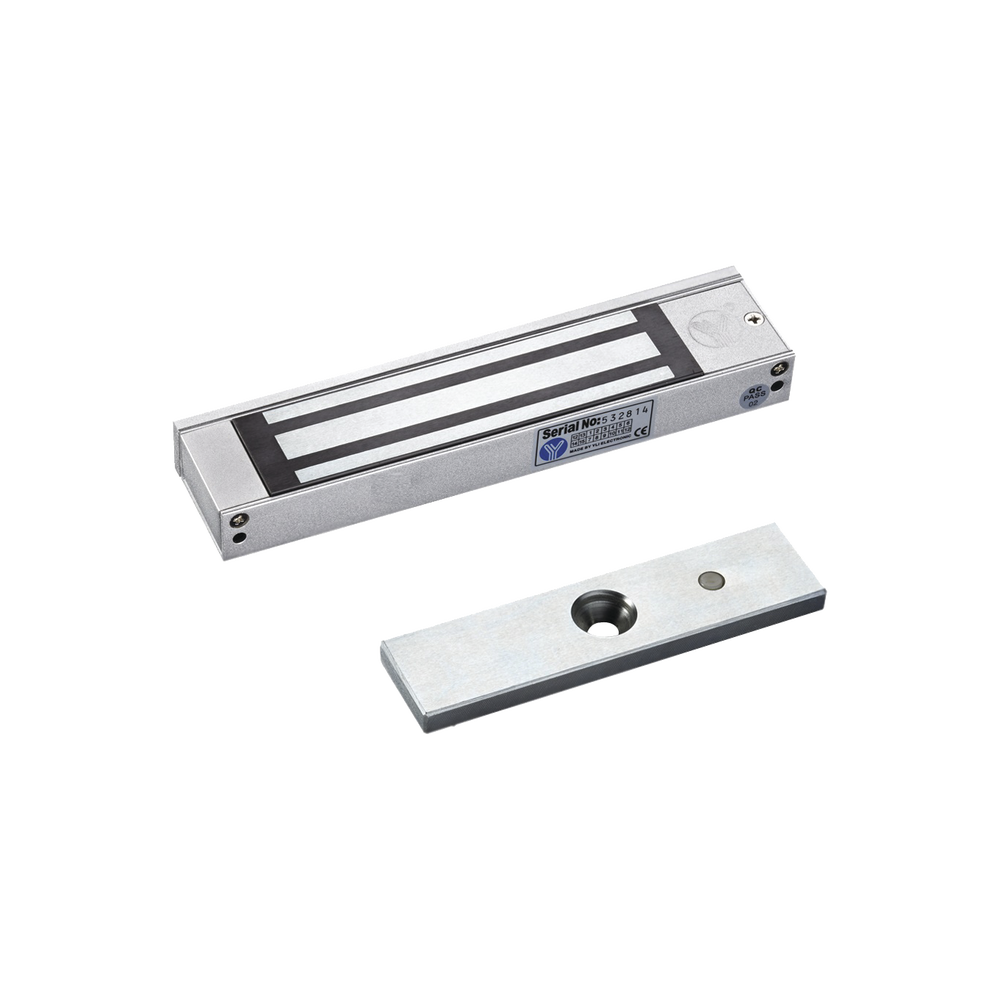

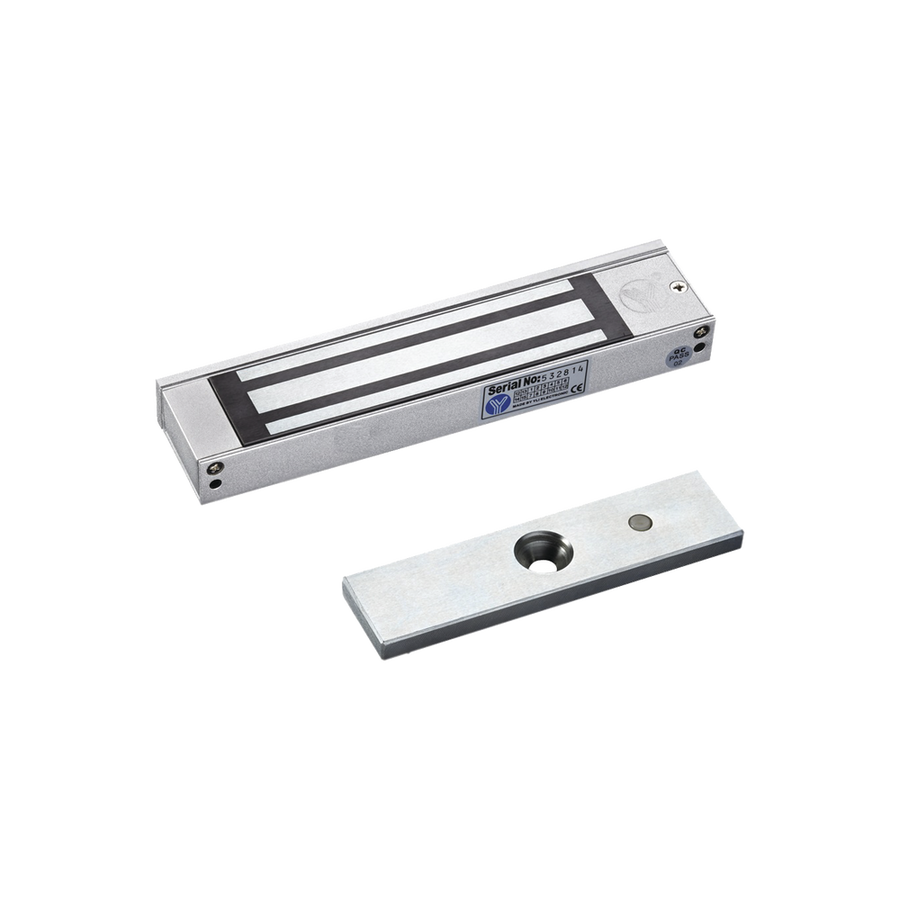

Accesspro MAG-350S Door Lock Magnetic plate 350 lb/ Plate Lock Sensor
Product identifier
SKU
MAG-350S
$56.65
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
• Clamping force: 180 kg (350 lbs).
• Voltage: 12/24 Vdc.
• Power consumption: 12V / 300mA, 24V / 150mA.
• State plate lock sensor.
• Magnet finish: anodized aluminum.
• Magnet dimensions: 7.20 x 1.62 x 0.80" (183 x 41.4 x 20.5 mm)
• Board dimensions: 5.11 x 1.29 x 0.36" (130 x 33 x 9.3 mm).
• Weight: 2.64 lb (1.2 kg).
Key Features
- 350 lb Holding Force for Secure Access Control
- Dual Voltage 12/24 VDC With Adjustable Operation
- Low Power Consumption: 300 mA at 12V, 150 mA at 24V
- Built-In Lock Status Sensor With NO/COM Contacts
- Durable Anodized Aluminum and Zinc Plated Construction
- Compact 2.6 lb Design for Easy Installation and Mounting
