ACCESSPRO

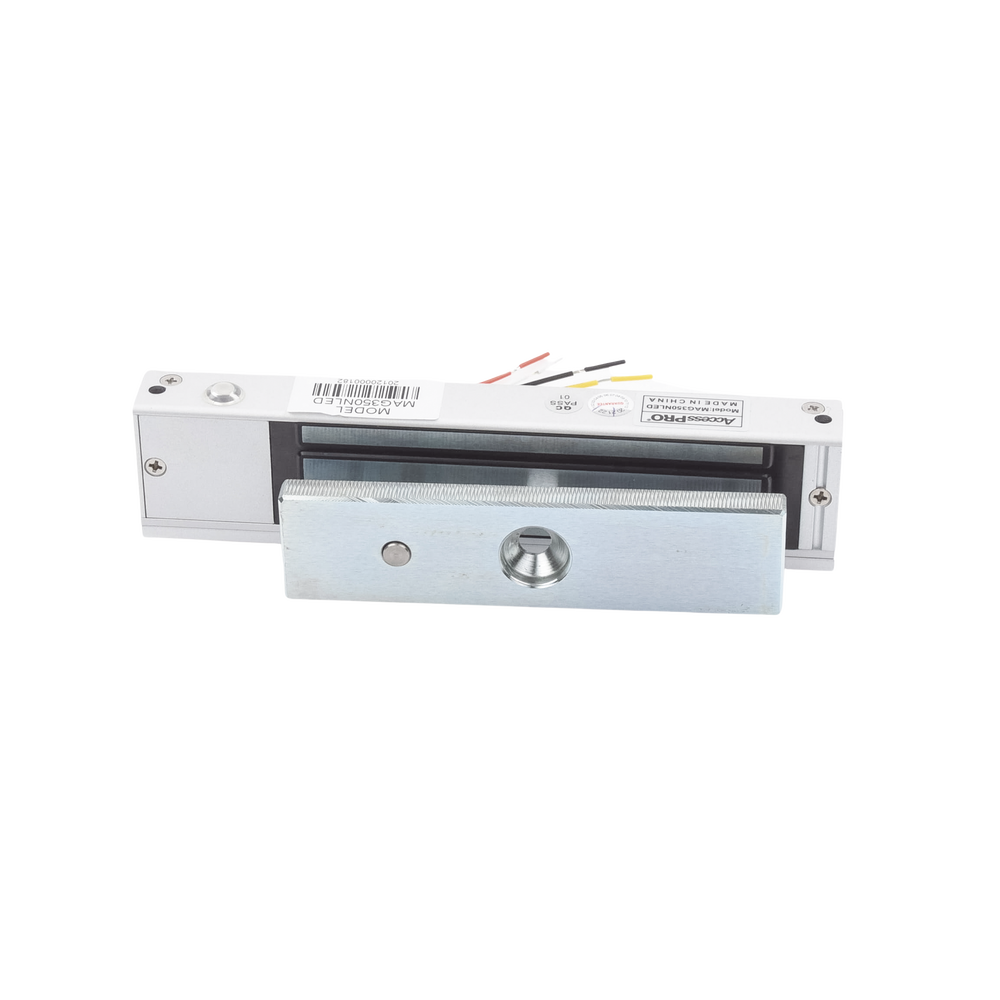

Accesspro MAG350NLED Door Lock Magnetic plate 350 lb/ Plate Lock Sensor.
Product identifier
SKU
MAG350NLED
$71.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
• Force: 180 kg (350 lb).
• Voltage: 12/24 Vdc.
• Power consumption: 12V / 300mA, 24V / 150mA.
• State plate lock sensor.
• Magnet finish: anodized aluminum.
• Magnet dimensions: 7.20 x 1.62 x 0.80" (183 x 41.4 x 20.5 mm)
• Board dimensions: 5.11 x 1.29 x 0.36" (130 x 33 x 9.3 mm).
• Weight: 2.64 lb (1.2 kg).
Key Features
- 350 lb Holding Force for Secure Access Control
- Dual Voltage Operation at 12V/400mA and 24V/200mA
- LED Status Indicator for Visual Operation Confirmation
- Anodized Aluminum Construction for Durability
- NO/COM Status Sensor for Real-Time Monitoring
- Compact Design Ideal for Indoor Installation
