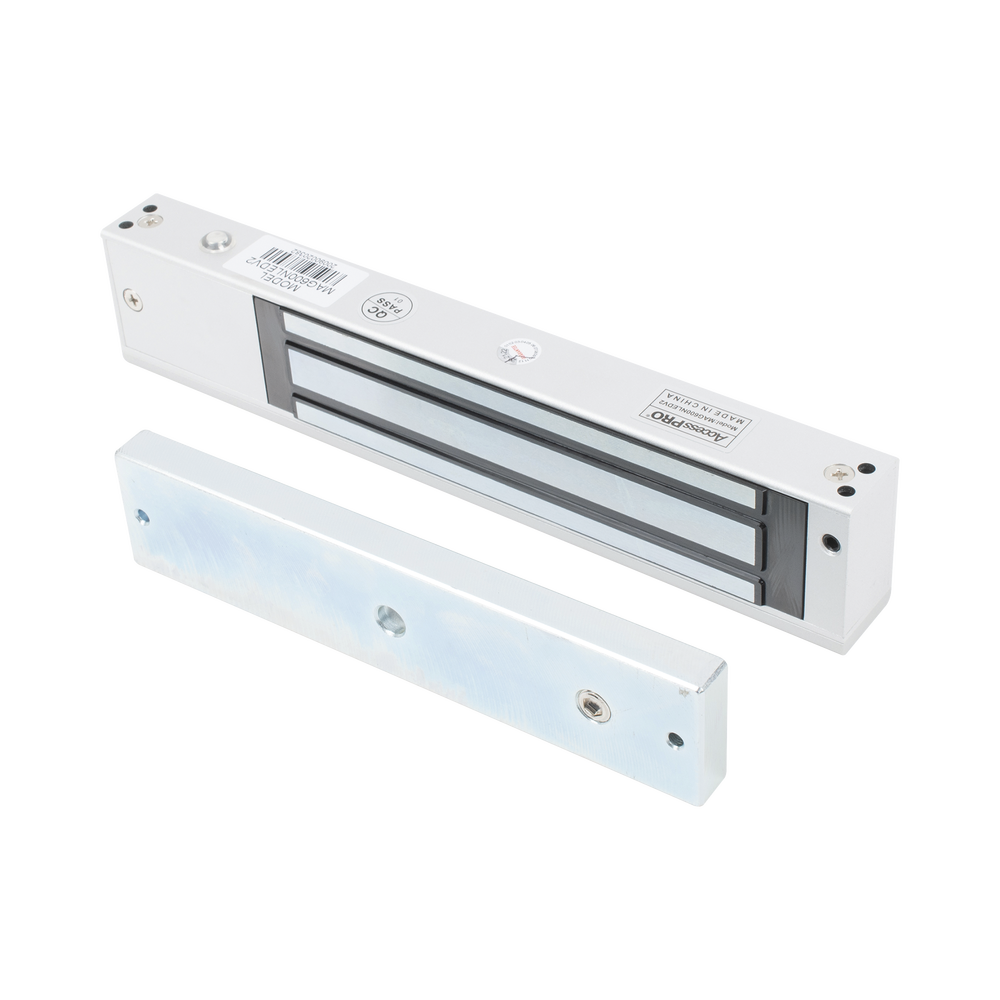

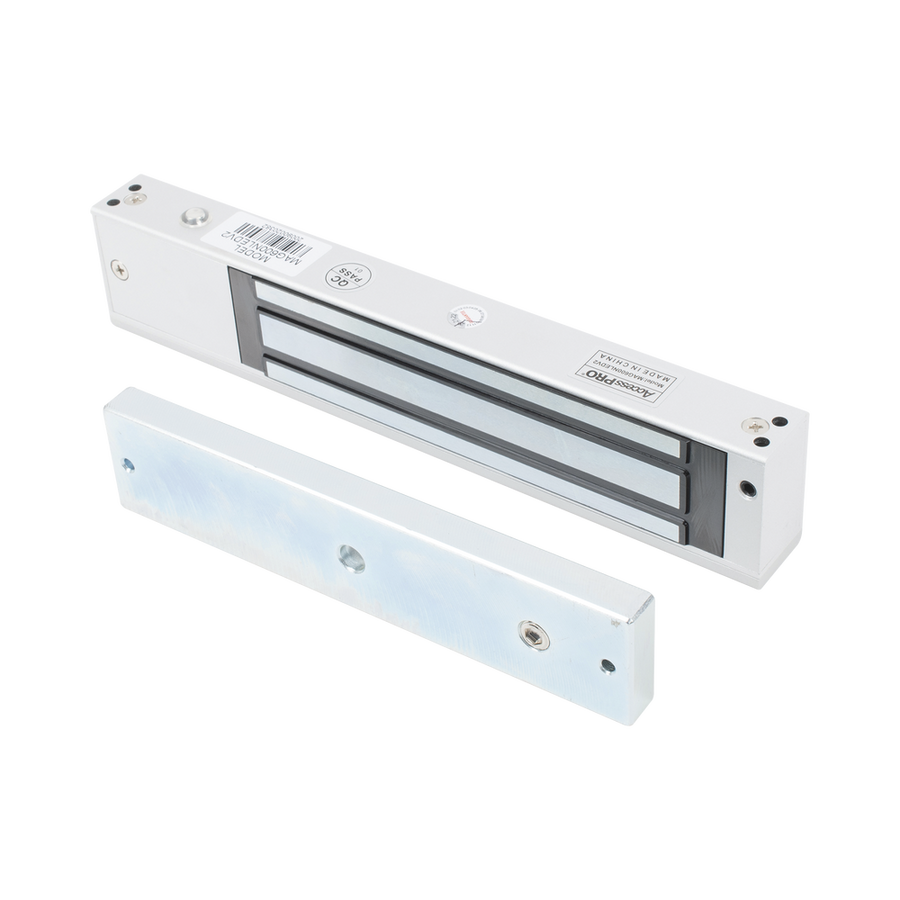

Accesspro MAG600NLEDV2 600lb Magnetic Lock LED Indicator NO/NC Sensor 12/24VDC
Product identifier
SKU
MAG600NLEDV2
$56.79
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Main features:
- Holding force: 280 kg (600 lbs).
- Includes magnet, plate, and hardware.
- NO/NC door sensor
Physical and Electrical Characteristics:
- Voltage: 12/24 VDC + 10% (jumper selectable).
- Magnet Material: Anodized aluminum.
- Plate Material: Zinc.
- Magnet dimensions: 250 x 48.8 x 27.9 mm.
- Plate dimensions: 180 x 38.8 x 13.2 mm.
- Weight: 2.1 kg.
Highlighted Features:
- Ultra-bright LED indicator.
- Magnetism-free design.
Mount
The MAG600NLED model includes an "I" mount.
Compatibilty mounts:
Key Features
- 600 lb Holding Force for Maximum Security Applications
- Ultra-Bright LED Indicator for Easy Status Monitoring
- Zero Residual Magnetism Design Prevents Door Sticking
- Integrated Plate Status Sensor for Door Position Detection
- 12/24 VDC Selectable Voltage With Jumper Configuration
- Anodized Aluminum Housing for Durable Outdoor Use
