Manhattan 164887 USB 3.2 Gen 1 4-Port Hub, 2x USB-A and 2x USB-C, 5 Gbps, Bus Powered

Part number / SKU
164887
  • Up to 5 Gbps
  • 2x USB-A, 2x USB-C
  • Bus powered

$36.08

In stock

Warranty
Manufacturer warranty

Free Economy shipping available at checkout

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

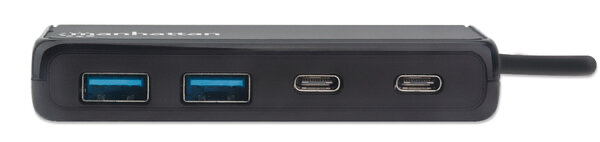

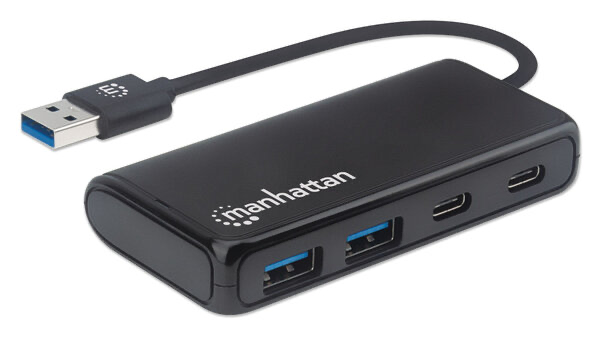

The Manhattan 164887 is a bus-powered USB 3.2 Gen 1 hub that turns one USB-A port on a computer into four ports: two USB-A and two USB-C. It transfers data at up to 5 Gbps.

It plugs in with an attached 13.5 cm (5.31 in) cable, provides up to 5 V / 1 A total output and needs no external power supply. The ABS housing measures 90 x 45 x 15 mm and weighs 39 g. It works with Windows XP through 10, Linux and Mac OS 9.x / 10.x or later.

  • Best for: adding USB-A and USB-C ports to laptops and desktops at the desk or on the road.
  • System fit: USB-A host port; Windows XP to 10, Linux, Mac OS 9.x / 10.x and later.
  • Important to know: the hub is bus powered with 5 V / 1 A total output, so high-draw devices may need their own power.

Why teams choose it

Built for reliable networks

  • Mixed ports

    two USB-A and two USB-C downstream ports.

  • 5 Gbps

    USB 3.2 Gen 1 data rate.

  • No adapter needed

    bus powered from the host port.

  • Portable

    39 g with an attached 13.5 cm cable.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKU164887
General
Brand Manhattan
Model 164887
Device Type USB 3.2 Gen 1 hub
Interfaces
Ports 2x USB-A, 2x USB-C
Upstream Port USB-A male, attached cable
USB Standard USB 3.2 Gen 1
Data Rate Up to 5 Gbps
Electrical
Power Method Bus powered
Total Output Up to 5 V, 1 A
Withstanding Voltage 300 VDC
Insulation Resistance 10 MΩ
Conductor Resistance 5 Ω
Physical
Dimensions 90 x 45 x 15 mm (3.54 x 1.77 x 0.6 in)
Weight 39 g (1.1 oz)
Cable Length 13.5 cm (5.31 in) including connector
Cable Gauge 24 AWG
Housing ABS plastic
Environmental
Operating Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -20 to 60 °C (-4 to 140 °F)
Operating Humidity 5 to 90% non-condensing
Software and Management
OS Support Windows XP to 10, Linux, Mac OS 9.x / 10.x or later
Listings and Approvals
Certifications FCC, CE, RoHS2, WEEE
