Manhattan · Networking Accessories

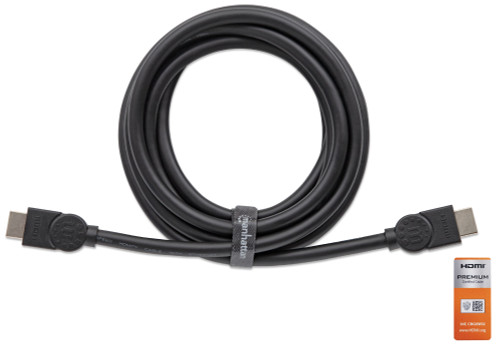

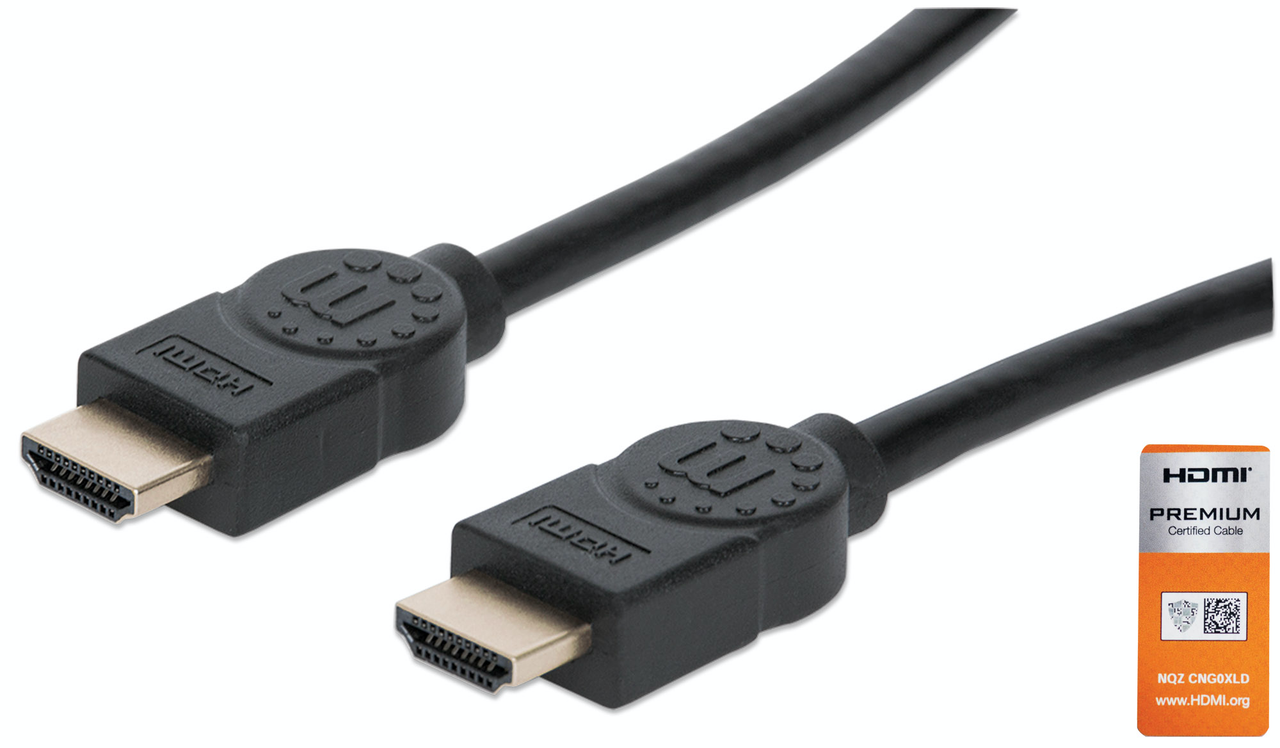

Manhattan 355346 High Speed HDMI Cable with Ethernet, 4K 60 Hz, 18 Gbps, 1.8 m (6 ft)
- Part number / SKU
- 355346
- Premium High Speed HDMI with Ethernet
- 18 Gbps at 600 MHz
In stock
- Warranty
- Manufacturer warranty
Free Economy shipping available at checkout
Need 5 or more? Request volume pricing
- (305) 357-6575
- 100K+ orders shipped
- 30-day returns
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
Why teams choose it
Built for reliable networks
-
4K 60 Hz HDR
18 Gbps bandwidth with 4:4:4 chroma.
-
Ethernet and ARC
HDMI Ethernet Channel up to 100 Mbps and Audio Return Channel.
-
Double shielded
30 AWG conductors with double shielding.
-
Strain relief
molded PVC boots with built-in strain relief.
Specifications
Technical specifications
| Product identifiers | |
|---|---|
| SKU | 355346 |
| General | |
| Brand | Manhattan |
| Model | 355346 |
| Device Type | HDMI cable with Ethernet |
| Standard | Premium High Speed HDMI with Ethernet |
| Performance | |
| Data Rate | 18 Gbps at 600 MHz |
| Max Resolution | 4K 3840 x 2160 at 60 Hz |
| Chroma Subsampling | 4:4:4 |
| HDR | Yes |
| 3D and Deep Color | Supported |
| HDMI Ethernet Channel | Up to 100 Mbps, bi-directional |
| Audio Return Channel | Supported |
| Interfaces | |
| Connectors | 2x HDMI 19-pin male |
| Contact Plating | Nickel |
| Electrical | |
| Current Rating | 0.5 A DC |
| Withstanding Voltage | 300 VDC |
| Insulation Resistance | 5 MΩ |
| Conductor Resistance | 5 Ω |
| Physical | |
| Cable Length | 1.8 m (6 ft) |
| Cable Gauge | 30 AWG |
| Shielding | Double shielded |
| Boots | Molded PVC with strain relief |
| Dimensions | 1800 x 20 x 10 mm |
| Weight | 0.09 kg |
| Environmental | |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -20 to 60 °C (-4 to 140 °F) |
| Humidity | 0 to 96% non-condensing |
Downloads
