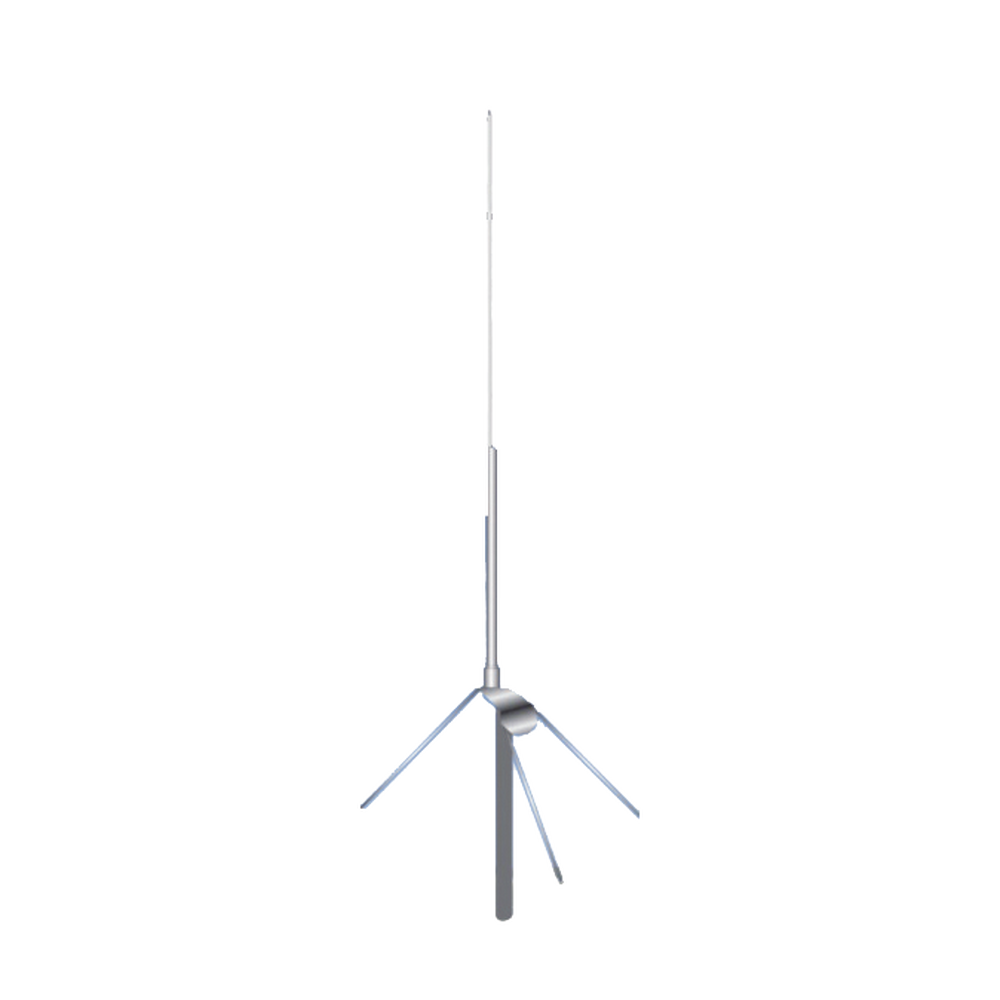

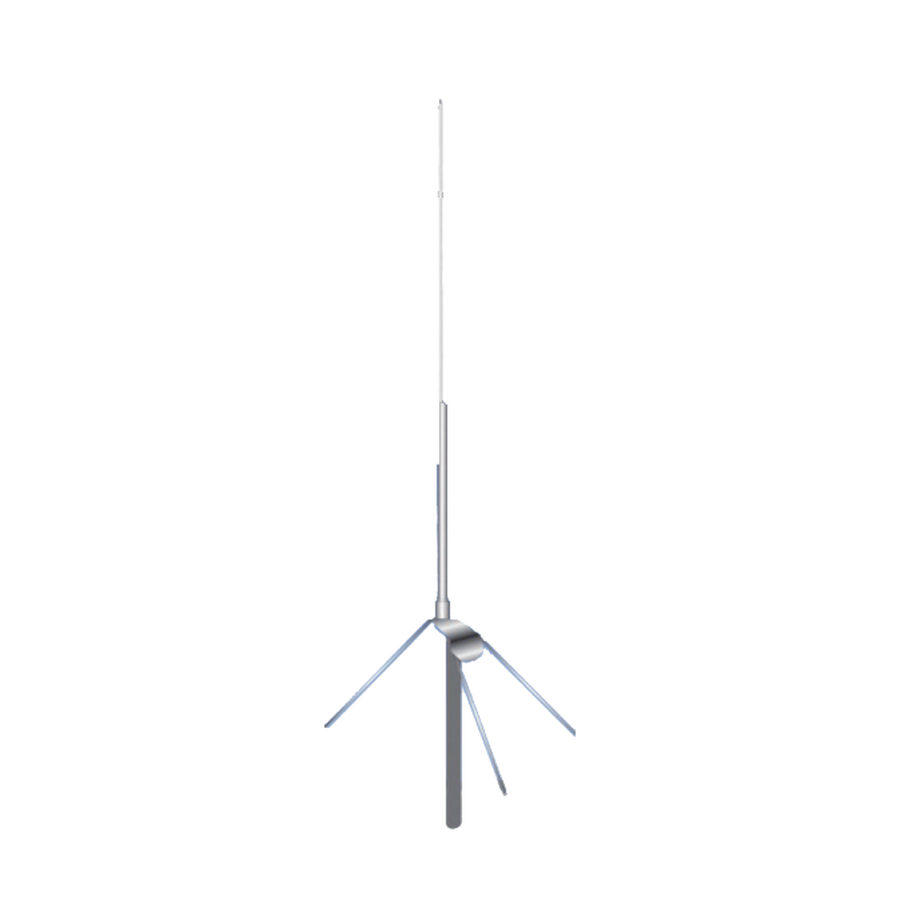

PCTEL MBX-150 VHF/UHF 3dB Omnidirectional Base Antenna 144-174MHz 250W
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
- Maximum Power: 250 watts
- Normal Impedance: 50 ohms
- Radiator Material: 6061-T6 aluminum tubing
- lightning Protection: DC grounded
- Wind Survival: 90 mph
- Termination: SO-239 standard;
N female connector is optional
- Maximum Mounting Pipe Diameter:
VHF: 1-1/4”
UHF: 1”
- Mounting Method: Built-in clamp (included)
- Frecuency range: 144-174 MHz.
- Gain: 3 dB.
- Bandwidth: 4 MHz.
- Connector: UHF Female.
- Wind resistance: 145 km/h.
- Max length: 9.15 ft (2.79 m)
- Weight: 12.4 lbs (5.62 Kg)
- Base matched vertical collinear antenna with phasing stub coupling
for efficient operation without radials
- Adjustment to exact operation frequency with stainless steel
full-lock clamps
The MBX VHF/UHF antennas offer an economical choice for omnidirectional
high gain applications. The 6061-T6 aluminum tubing and stainless steel
hardware provides years of trouble free service.
Key Features
- 4 MHz Bandwidth for Clear Signal Transmission
- Standard UHF Female Connector for Easy Installation
- Radial-Less Design for Maximum Efficiency and Performance
- Wind Resistant up to 90 mph for Harsh Environments
- 6061-T6 Aluminum Construction with Stainless Steel Hardware
- Integrated Mounting Clamp for 1-1/4" Pipe Installation
