CHAROFIL

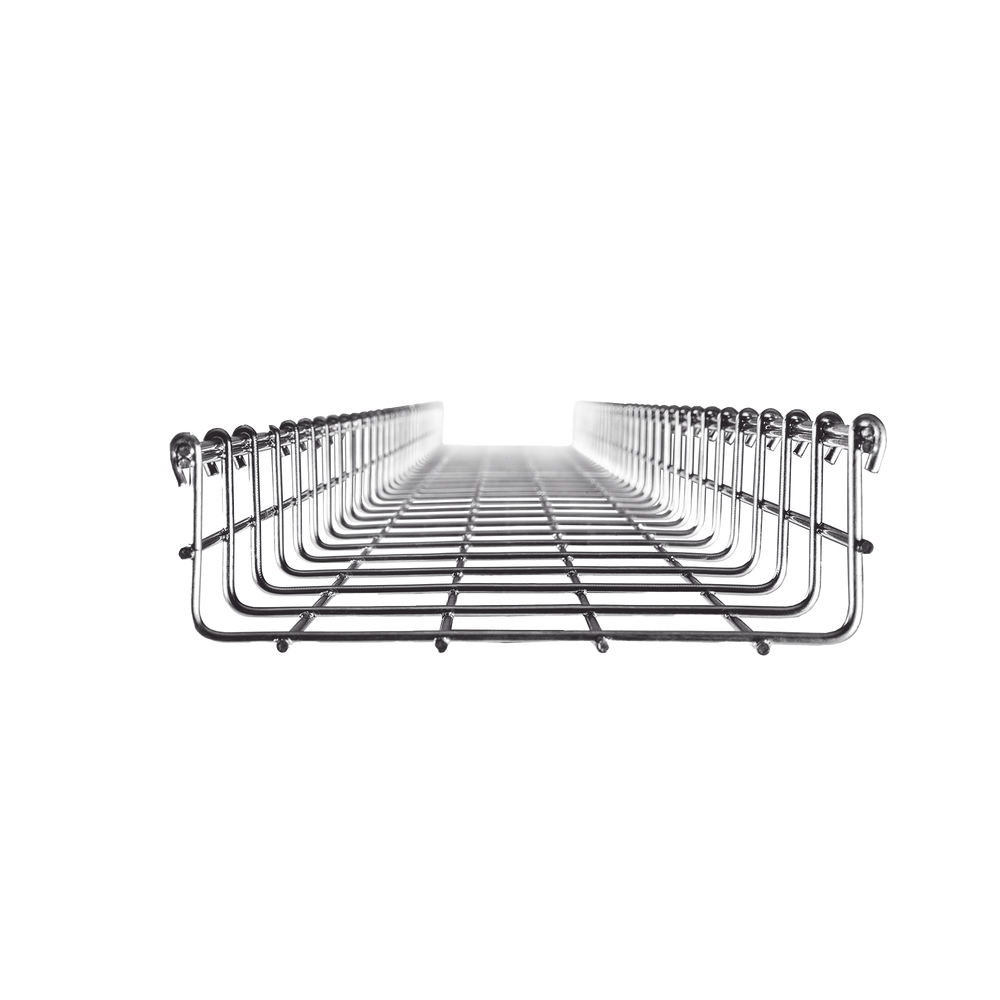

Charofil MG-50-433EZ 8in Mesh Cable Tray Electro Zinc 361lb/ft 10ft
Product identifier
SKU
MG-50-433EZ
$43.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Characteristics:
- Width: 7.87 in (200 mm).
- Camber: 2.6 in (66 mm).
- Length: 9.84 ft (3 m).
- Load capacity: 361 lb/ft (50 kg/m) between 5 ft support spans (1.50 m), 282 lb/ft (39 kg/m) between 6 ft (1.80 m) support spans.
- Volumetric weight: 9.83 lb/ft (1.36 kg/m)
Electro Zinc (EZ) finish of 15 to 20 microns.
Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.
Coating: "EZ" Galvanizad Electro-Zinc.
*Recommended for indoors.
Number of cable loads, with camber 66 mm.
Key Features
- 8 in Width Provides Maximum Cable Capacity and Organization
- 66 mm Depth Optimizes Space Utilization and Cable Management
- 10 ft Length Sections for Efficient Installation and Layout
- Electro Zinc Finish With 15-20 Micron Corrosion Resistance
- Modular Mesh Design for Easy Access and Maintenance
- Excellent Ventilation to Keep Cables Cool and Protected
