CHAROFIL

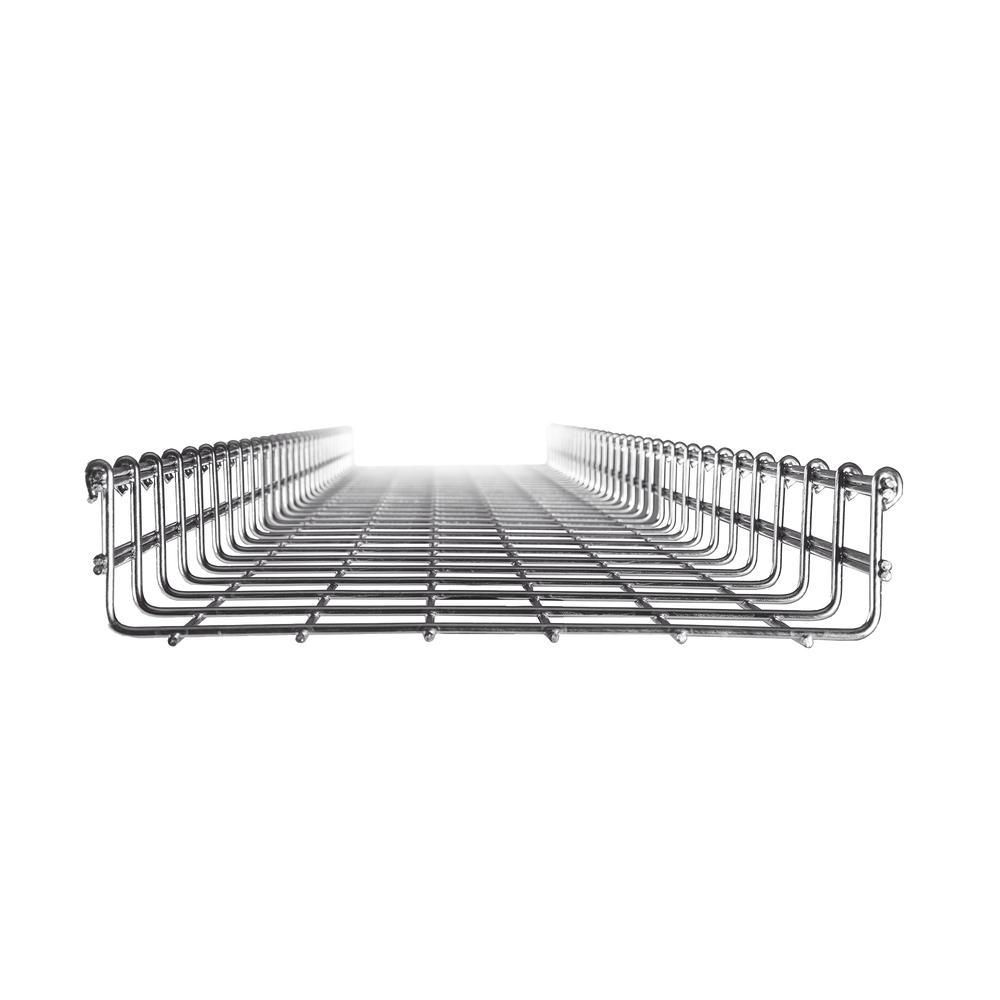

Charofil MG-50-435EZ 300mm Wire Mesh Cable Tray Electro-Zinc 315 Cat6
Product identifier
SKU
MG-50-435EZ
$53.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
General Characteristics:
- Width: 11.81 in (300 mm).
- Camber: 2.59 in (66 mm).
- Length: 9.84 ft (3 m).
- Load capacity: 58 lb/ft (87 kg/m) between 1.50 m support spans, 52 lb/ft (78 kg/m) between 5.9 ft (1.80 m) support spans.
- Volumetric weight: 1.49 lb/ft (2.227 kg/m)
Electro Zinc (EZ) finish of 15 to 20 microns.
Electro Zinc is a process by which a layer of zinc is deposited on metal parts through continuous electric current. Recommended for indoor use.
Coating: "EZ" Galvanizad Electro-Zinc.
*Recommended for indoors.
Number of cable loads, with camber 66 mm.
Key Features
- 300 mm Width for Optimal Cable Organization and Management
- 66 mm Depth Provides Maximum Cable Capacity and Clearance
- 10 ft Length Sections for Efficient Installation and Layout
- Electro Zinc Finish 15-20 Microns for Superior Corrosion Resistance
- Supports up to 315 Cat6 Cables for High-Density Applications
- Modular Mesh Design for Easy Access and Maintenance
