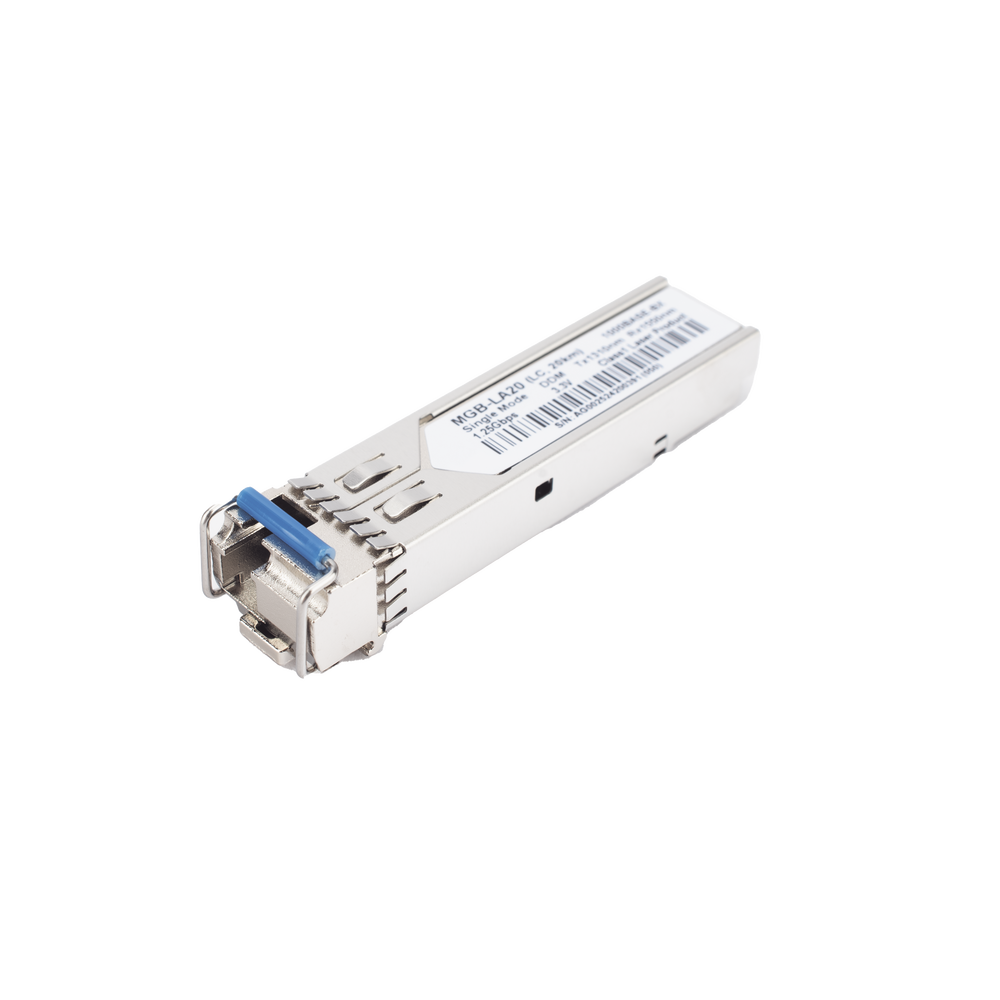

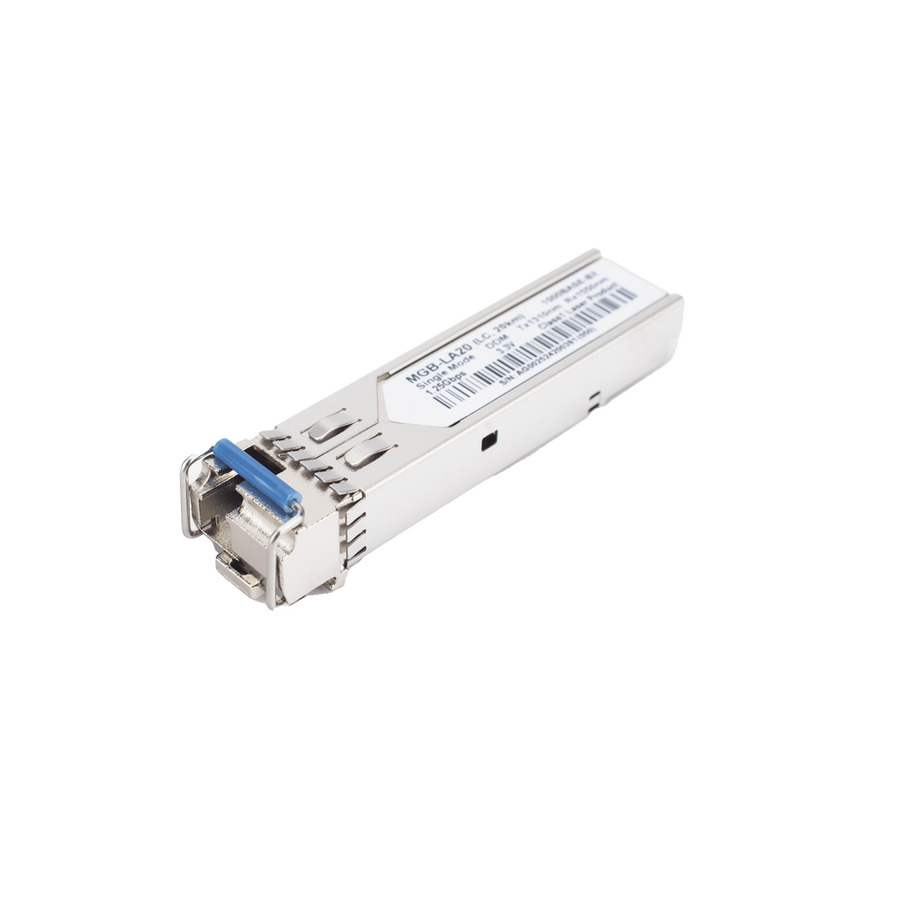

Planet MGB-LA20 1000BASE-BX SFP Transceiver 20km Single-Mode LC
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug and unplug the transceivers to/from any SFP port without powering down the Switch/Media Converter.
| MGB-LA20 and MGB-LB20 | |
|---|---|
| PHY Type | IEEE 802.3z 1000BASE-BX |
| Fiber Type | Single-mode |
| Connector | Simplex LC/UPC |
| DDM | Yes |
| Wavelength |
MGB-LA20: TX1310nm, RX1550nm MGB-LB20: TX1550nm, RX1310nm |
| Maximum Distance | 20km |
| Operating Temperature | 0~60 degrees C |
**This model requires working together with the Model: MGB-LB20
Key Features
- Compatible With 1000Base-SX/LX/BX SFP Interfaces
- Hot-Pluggable and Hot-Swappable for Easy Installation
- Single Mode Fiber With WDM/BiDi LC Connector
- Maximum Distance of 12.4 Miles on Single Mode
- Operating Temperature Range 32°F to 140°F
- Requires Paired Operation With MGB-LB20 Transceiver
