PLANET

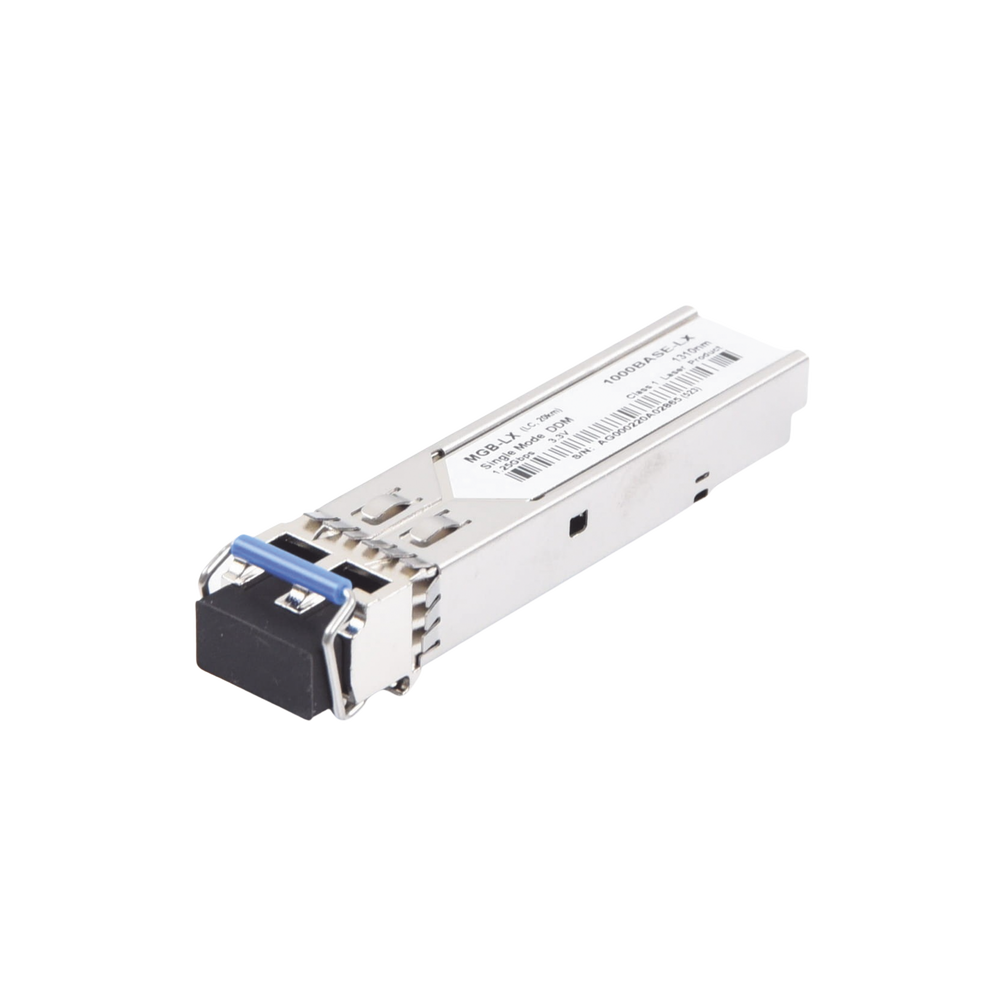

Planet MGB-LX 1000Base-LX SFP Transceiver Single-Mode LC 1310nm
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.
The SFP transceivers are hot-pluggable and hot-swappable. You can plug and unplug the transceivers to/from any SFP port without powering down the Switch/Media Converter.
| MGB-LX | |
|---|---|
| PHY Type | IEEE 802.3z 1000BASE-LX |
| Fiber Type | Single-Mode |
| Connector | Dual LC/UPC |
| DDM | YES |
| Wavelength | 1310nm |
| Maximum Distance | 10 km |
| Operating Temperature | 0~60 degrees C |
Key Features
- Hot-Pluggable and Hot-Swappable for Live Installation
- 1000Base-SX/LX/BX Compatibility for Maximum Versatility
- Extended Reach From 1800 ft to 75 mi Depending on Model
- LC Connector for Single Mode Fiber 1310 nm Operation
- 1.25 Gbps Transmission Speed for High-Demand Networks
- IEEE 802.3z 1000Base-LX Standard Compliant Operation
