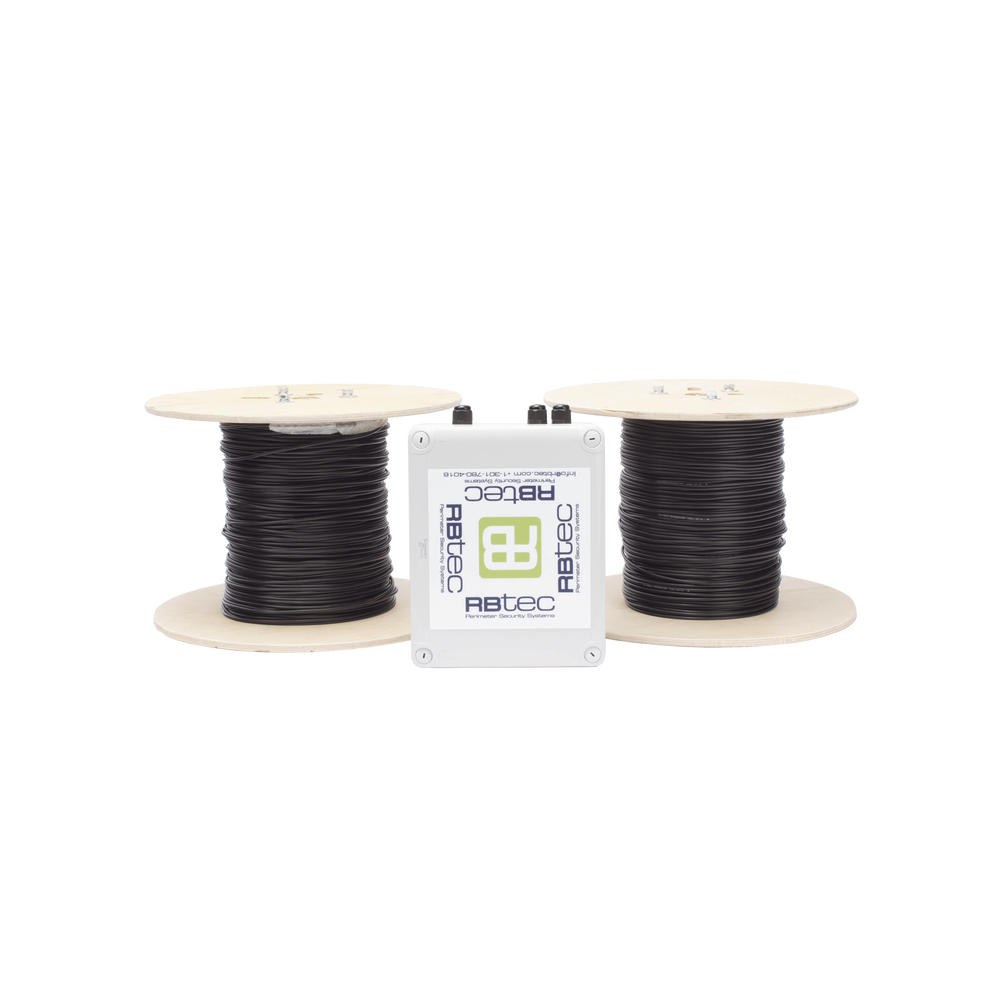

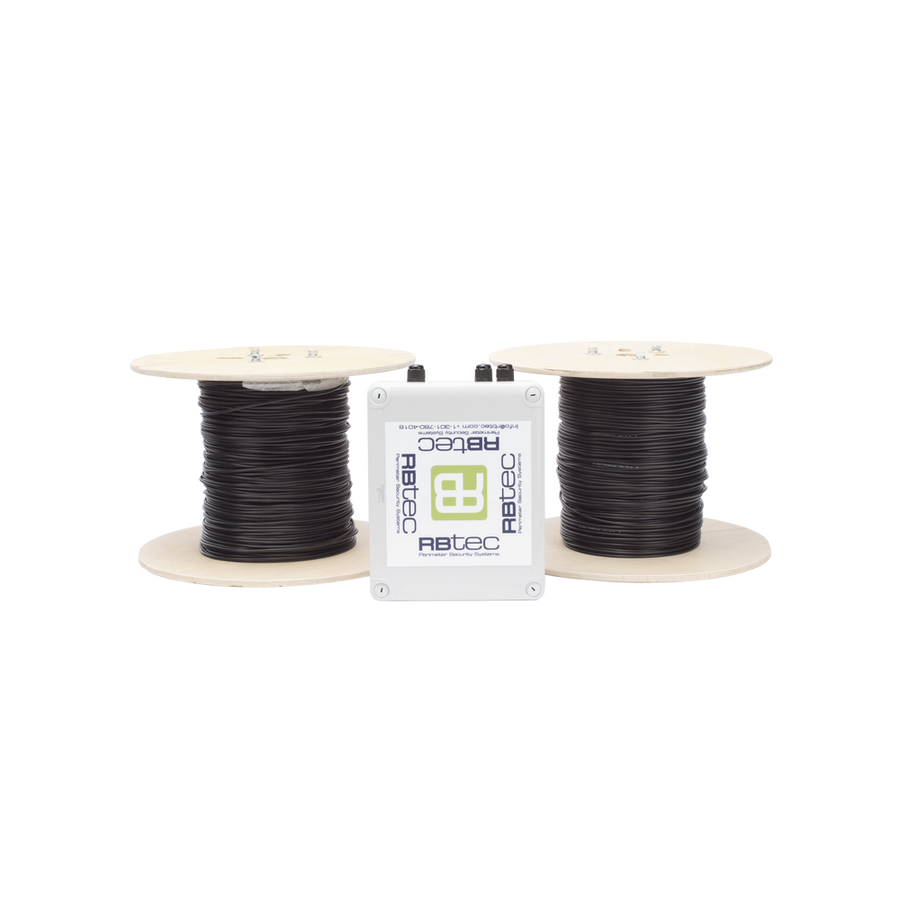

Rbtec MIC2Z1000V2 MICALERT Microphonic Fence Sensor 2-Zone Perimeter Alarm

The MICALERT Microphonic fence sensor is a passive electronic intrusion detector system. The system is ideal for outdoor protection and can be easily installed on residential or high-security Steel Fence, Palisade, and Ornamental fences. The MICALERT microphonic fence-mounted sensor system is based on sensing types of frequencies associated with intrusion attempts while filtering ones related to weather conditions.

The MICALERT perimeter alarm system is the ideal solution for the protection of:

• Commercial and industrial areas.
• Condominiums or gated communities.
• Data centers.
• Water, electrical, and police substations.
• Car, RV, boat, or equipment warehouses.
• Solar farms and photovoltaic plants.
• Self-storage warehouses.
• Radio and cellular communication antennas.
• Any fenced location.

6 Kit Configurations

Ready for Quick Installation

Each kit includes a field analyzer with a sensor cable reel

Optional:

• 152 m / 500” of sensor cable (2 zones) in length, 152 m / 500” of sensor line (1 zone).
• 305 m / 1,000” sensor cable (2 zones) length, 305 m / 1,000” sensor line (single zone).
• 610 m / 2,000” of sensor cable (2 zones) in length.

System Layout

Technical specifications

• Auto calibration and automatic noise cancellation
• 20 levels of local sensitivity levels adjusted by onboard controls
• Unlimited levels of software adjusted sensitivity levels with easy-to-use software
• Up to 2 sensor input zones
• 24 VAC power input
• 9-48 V DC power input
• Arm / Disarm zones via jumpers directly on board
• Dedicated alarm outputs for power loss and tampering
• Integrated PIR tamper sensor

The MICALERT Microphonic Cable Fence Disturbance Sensor offers a solution for intrusion detection by analyzing typical noise patterns made by a forced entry attempt. The system can recognize motion caused by an attempt to pass through the fence and disregard signals caused by weather conditions, preventing nuisance alarms.

The sensor is designed to be installed directly on rigid fences without any conduit.

The Micalert has a UV-rated coating for outdoor installation and protection against all weather conditions.

The linear electronic vibration detector sensor:

1. Sensor cable connected to the wall in a conduit/pipe.

2. Each processor (analyzer) can monitor up to 2 zones (spools)

3. Maximum length per processor is 2000ft / 600m of sensor cable, 1000ft / 305m per zone

4. Each kit includes a processor in a weather-resistant enclosure, a sensor cable of chosen length, and an end-of-line termination unit.

5. To cover longer walls, there is the option to combine as many kits as needed

Key Features

• DSP Processor With Advanced Vibration Pattern Analysis
• Precise Intrusion Detection on Rigid Fences and Walls
• Weather Condition False Alarm Filtering Technology
• Direct Installation on Walls Without Conduits Required
• Automatic Calibration With Specialized Software Tools
• Ideal for Commercial, Industrial, and Perimeter Security
