MIKROTIK
MikroTik CRS317-1G-16S+RM 16-Port 10GbE SFP+ Layer 3 Switch
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

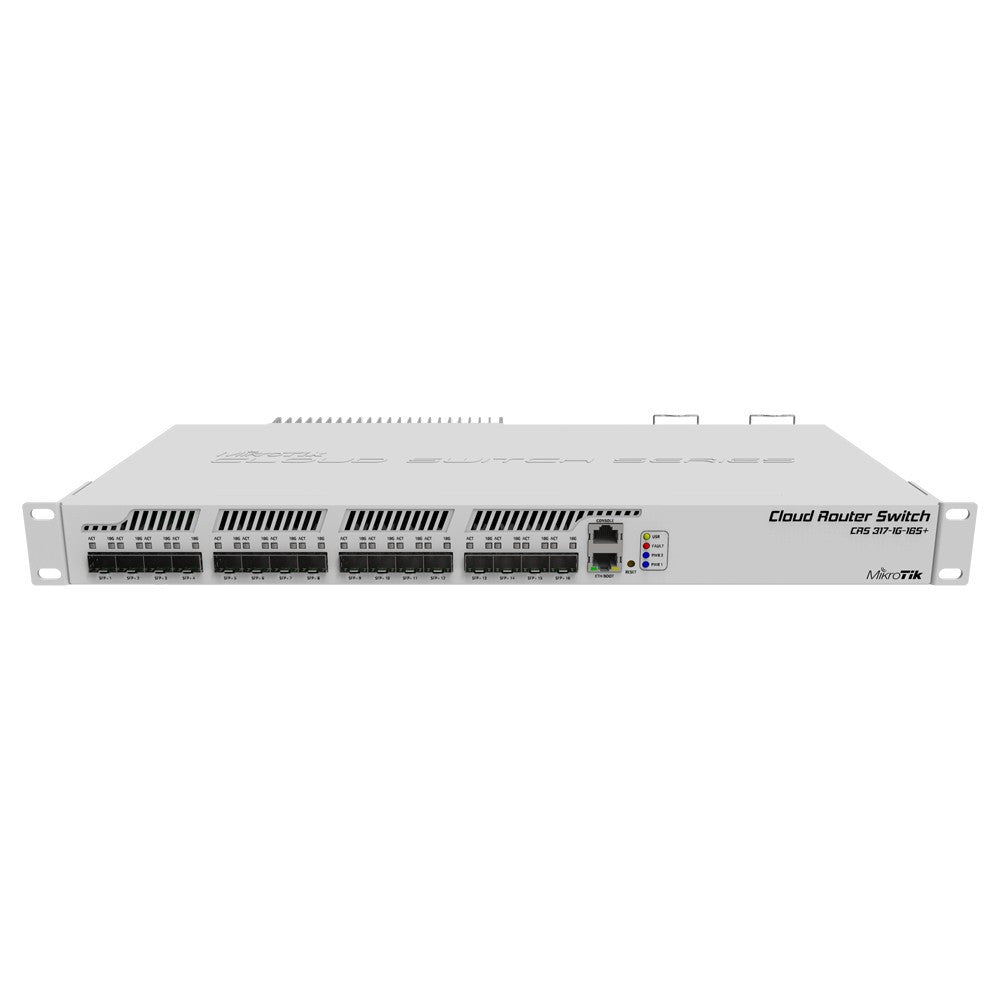

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

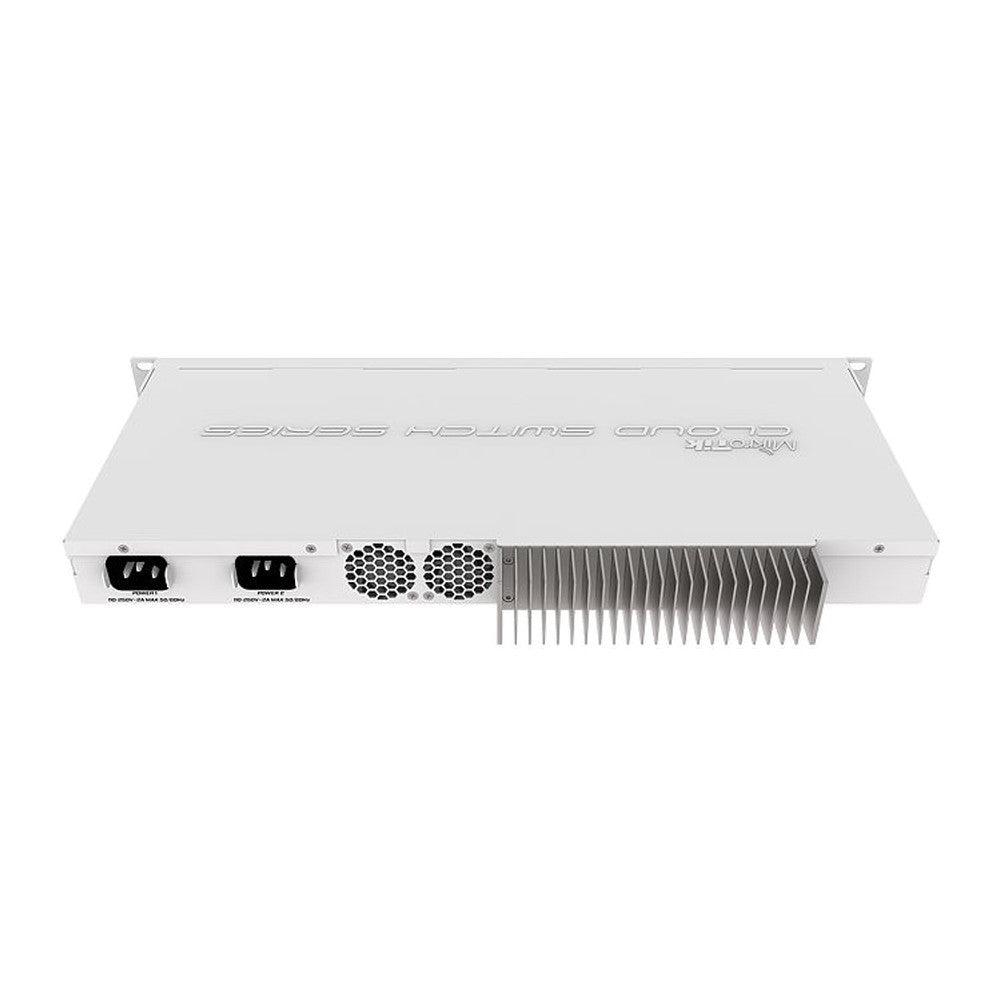

The unit has dual redundant power supplies and passive cooling case - for hot environments two redundant fans will automatically keep the system cool if needed.
Technical Description
-
Specifications
- Product code: CRS317-1G-16S+RM
- Architecture: ARM 32bit
- CPU: 98DX8216
- CPU core count: 2
- CPU nominal frequency: 800 MHz
- Switch chip model: 98DX8216
- Dimensions: 443 x 224 x 44 mm
- RouterOS license: 6
- Operating System: RouterOS / SwitchOS
- Size of RAM: 1 GB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -20°C to 60°C
-
Powering
- Number of AC inputs: 2
- AC input range: 100-240
- Max power consumption: 44 W
- Cooling type: 2 fans
-
Ethernet
- 10/100/1000 Ethernet ports: 1
-
Fiber
- SFP+ ports: 16
-
Peripherals
- Serial console port: RJ45
-
Other
- CPU temperature monitor: Yes
- Beeper: Yes
-
Certification & Approvals
- Certification: CE, EAC, ROHS
