MikroTik CRS518-16XS-2XQ-RM Cloud Router 16x SFP+ 2x QSFP28
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

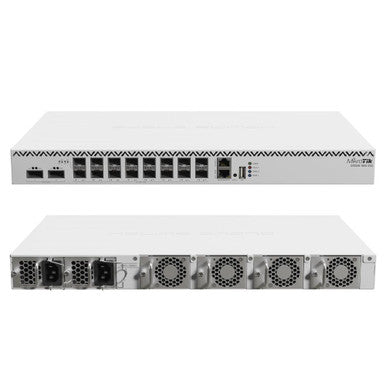

MikroTik CRS518-16XS-2XQ-RM is an enterprise-grade switch featuring 16× 25G SFP28 and 2× 100G QSFP28 ports. Powered by RouterOS v7 with dual hot-swappable power supplies and redundant cooling, it is designed for data center and high-performance network deployments.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• Product code: CRS518-16XS-2XQ-RM
• 16 × 25G SFP28 ports
• 2 × 100G QSFP28 ports
• 1 × 10/100 Ethernet management port
• QCA9531 CPU
• RouterOS v7 (License Level 6)
• Dual hot-swappable AC power supplies
• 4 cooling fans
• 25G ports backward compatible with 10G and 1G SFP modules
• Serial console port (RJ45)
• 1 × USB Type-A port (USB Power Reset supported)
• Integrated temperature and voltage monitoring
• Rack-mount design
TECHNICAL SPECIFICATIONS
• Architecture: MIPSBE
• CPU: QCA9531
• CPU Core Count: 1
• CPU Nominal Frequency: 650 MHz
• RAM: 64 MB
• Storage: 16 MB FLASH
• Operating System: RouterOS (v7 only)
• RouterOS License Level: 6
• MTBF: Approx. 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C
• Number of AC Inputs: 2
• AC Input Range: 100–240V
• Frequency: 47–63 Hz
• Max Power Consumption: 95 W
• Max Power Consumption (without attachments): 45 W
• Cooling: 4 fans
• Serial Console Port: RJ45
• USB Ports: 1 × USB Type-A (Max 1A)
• CPU Temperature Monitor: Yes
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Certifications: CE, EAC, ROHS
• IP Rating: IP20
