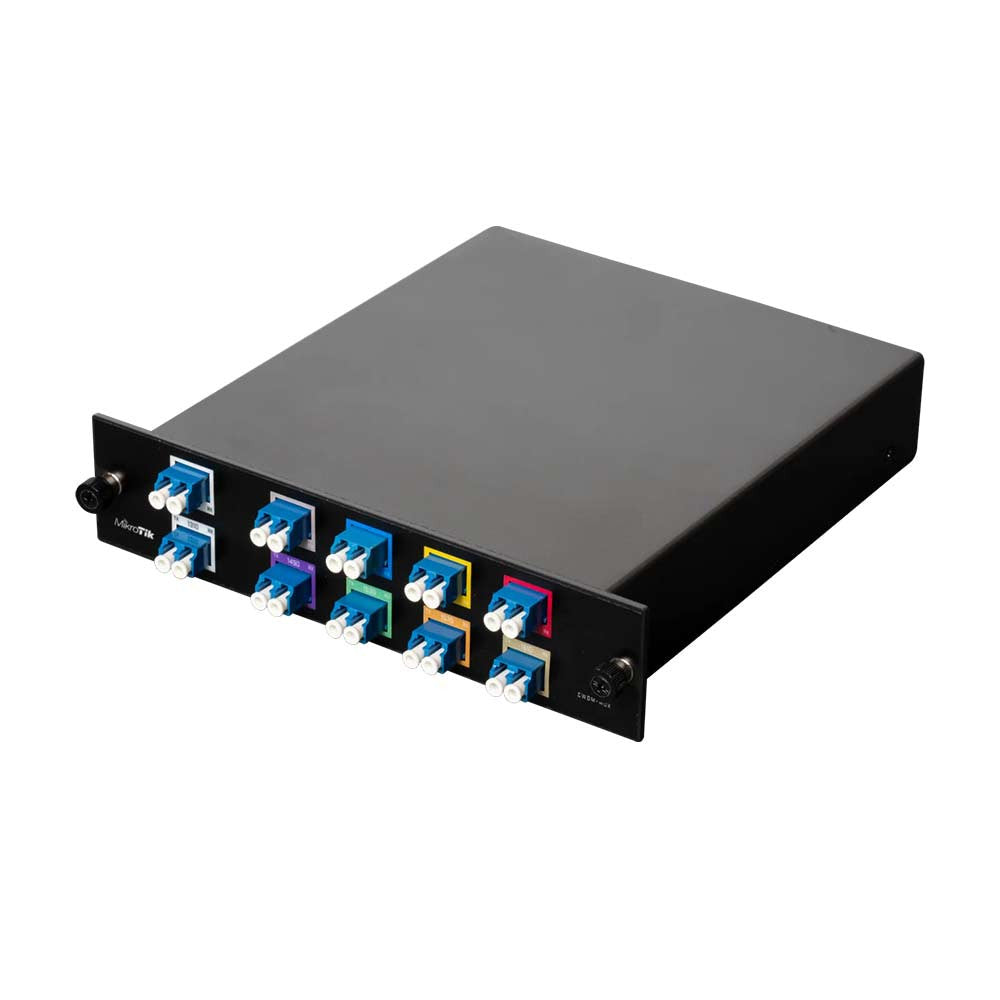

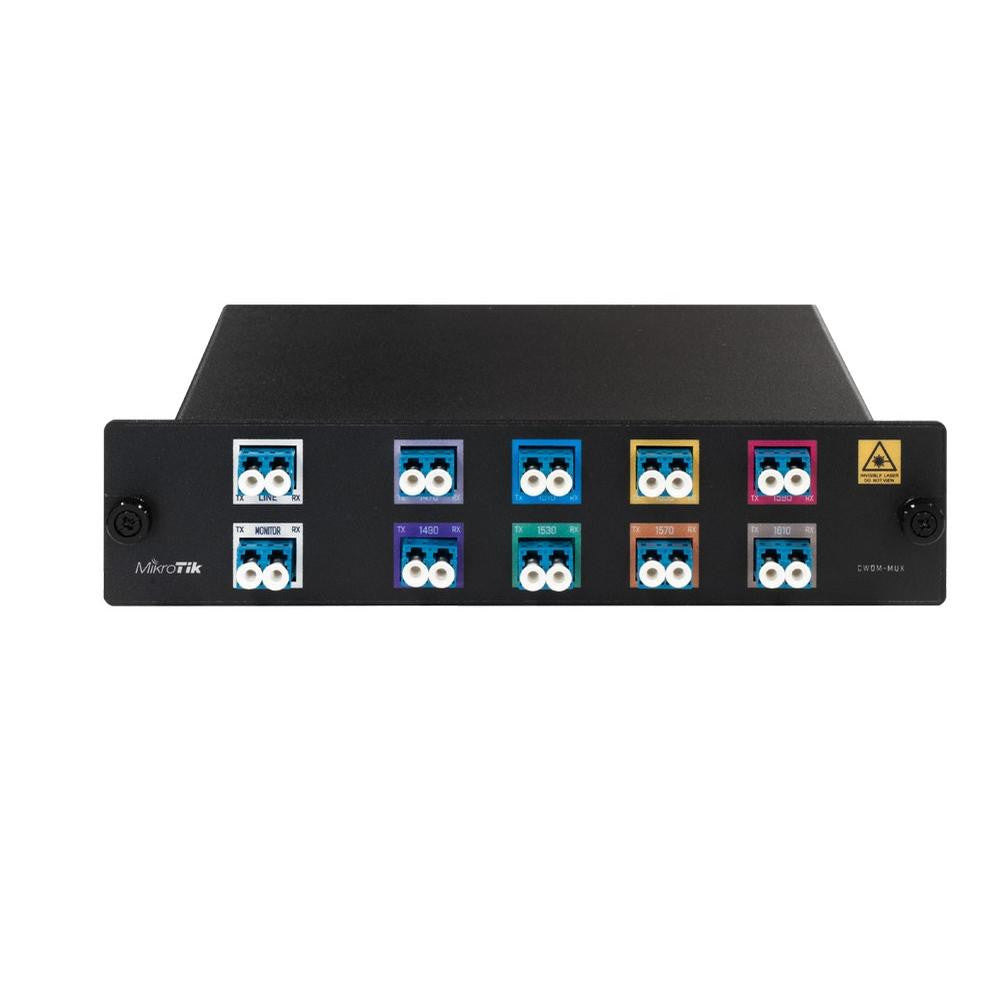

MikroTik CWDM-MUX8A 8-Channel Passive CWDM Mux/Demux SFP/SFP+ 10Gbps
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Passive CWDM MUX/DEMUX unit supporting up to eight fiber channels over a single fiber connection for simplified long-distance fiber deployments and reduced infrastructure costs.
PRODUCT TYPE
Transceivers
KEY FEATURES
• Passive CWDM MUX/DEMUX design
• Supports up to 8 fiber channels
• Compatible with SFP and SFP+ modules
• Supports wavelengths from 1470nm to 1610nm
• Includes EXP/1310 expansion port
• Enables combining multiple fiber links into a single fiber connection
• Supports simultaneous use of 1.25Gbps SFP and 10Gbps SFP+ modules
• Helps reduce fiber infrastructure and deployment costs
• No external power source required
• Designed for long-distance fiber installations
TECHNICAL SPECIFICATIONS
• Brand: MikroTik
• Model: CWDM-MUX8A
• Product Type: Passive CWDM MUX/DEMUX
• Supported Modules: SFP, SFP+
• Channel Capacity: Up to 8 channels
• Supported Wavelengths: 1470nm to 1610nm
• Expansion Port: EXP/1310
• Supported SFP Speed: Up to 1.25Gbps
• Supported SFP+ Speed: Up to 10Gbps
• Maximum SFP Distance: Up to 40km
• Maximum SFP+ Distance: Up to 10km
• Power Requirement: Passive device, no power required
• Fiber Configuration: Duplex fiber cable supported
INTENDED USE / APPLICATIONS
• Long-distance fiber optic network deployments
• Fiber infrastructure capacity expansion
• Cost reduction for fiber optic installations
• Multi-channel wavelength division multiplexing applications
