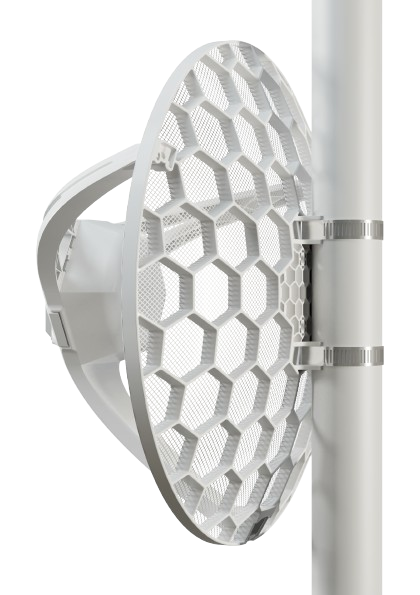

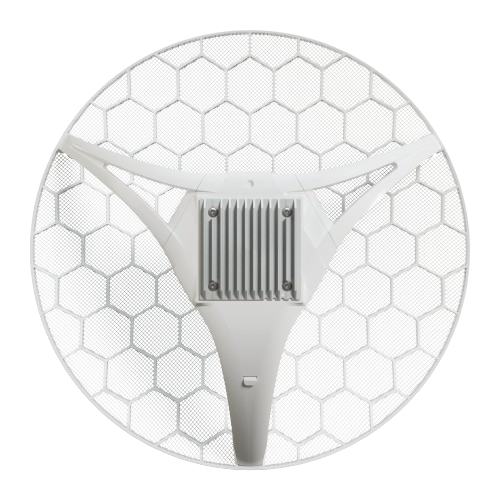

MikroTik LHGGR&FG621-EA LTE Cat6 Sector Antenna 2x2 MIMO IP54

PRODUCT TITLE

MikroTik LHGGR&FG621-EA LTE Cat6 Sector Antenna 2x2 MIMO IP54

PRODUCT OVERVIEW

This kit is an update that combines the strengths of our previous LHG bestsellers. It has gained Gigabit Ethernet – so you can harness the full speed potential of the LTE modem, which has also been upgraded from Cat4 to Cat6! The new LTE modem allows us to drive the price down, boost performance, and offer further discounts on mobile operator project volume orders! The sleek and unobtrusive weatherproof design has proven its resilience across various climate zones, enduring even the harshest winds effortlessly. This translates to significant time and cost savings on maintenance for you or your team. The mighty high-gain antenna boasts broad support for a versatile range of LTE bands, spanning from 2.7 GHz to 700 MHz. With such extensive coverage, you can expect to capture a signal virtually anywhere across the globe!

PRODUCT TYPE / CATEGORY

• Networking
• Antennas (Networking)

KEY FEATURES

• Architecture: ARM 64bit
• CPU: 88F3720
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• RouterOS license: 3
• Operating System: RouterOS v7
• Size of RAM: 256 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering: Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 8 W
• Max power consumption without attachments: 8 W
• Cooling type: Passive
• PoE in: 802.3af/at
• PoE in input Voltage: 12-57 V
• Mobile: 3G Categor: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)

TECHNICAL SPECIFICATIONS

• Brand: MikroTik
• Model: LHGGR&FG621-EA
• Product Type: Antennas (Networking)
• Architecture: ARM 64bit
• CPU: 88F3720
• CPU core count: 2
• CPU nominal frequency: 800 MHz
• RouterOS license: 3
• Operating System: RouterOS v7
• Size of RAM: 256 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 200'000 hours at 25C
• Tested ambient temperature: -40°C to 70°C
• Powering: Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 8 W
• Max power consumption without attachments: 8 W
• Cooling type: Passive
• PoE in: 802.3af/at
• PoE in input Voltage: 12-57 V
• Mobile: 3G Categor: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
• 3G bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
• LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
• MIMO DL: 2x2
• MIMO UL: 1x1
• LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
• LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
• TAC: 86335904
• Ethernet: 10/100/1000 Ethernet ports: 1
• Peripherals: Number of SIM spots: 1 Modem (Micro SIM)
• MiniPCI-e spots: 1
• Other Details: Mode button: Yes

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations

SHIPPING

• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues
• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia

RETURNS

• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping

DATA ACCURACY DISCLAIMER

Product details are based on available manufacturer information and may be subject to change without notice.

BULK / VOLUME BUYERS

For bulk orders or volume inquiries, please contact us to confirm availability and pricing.
