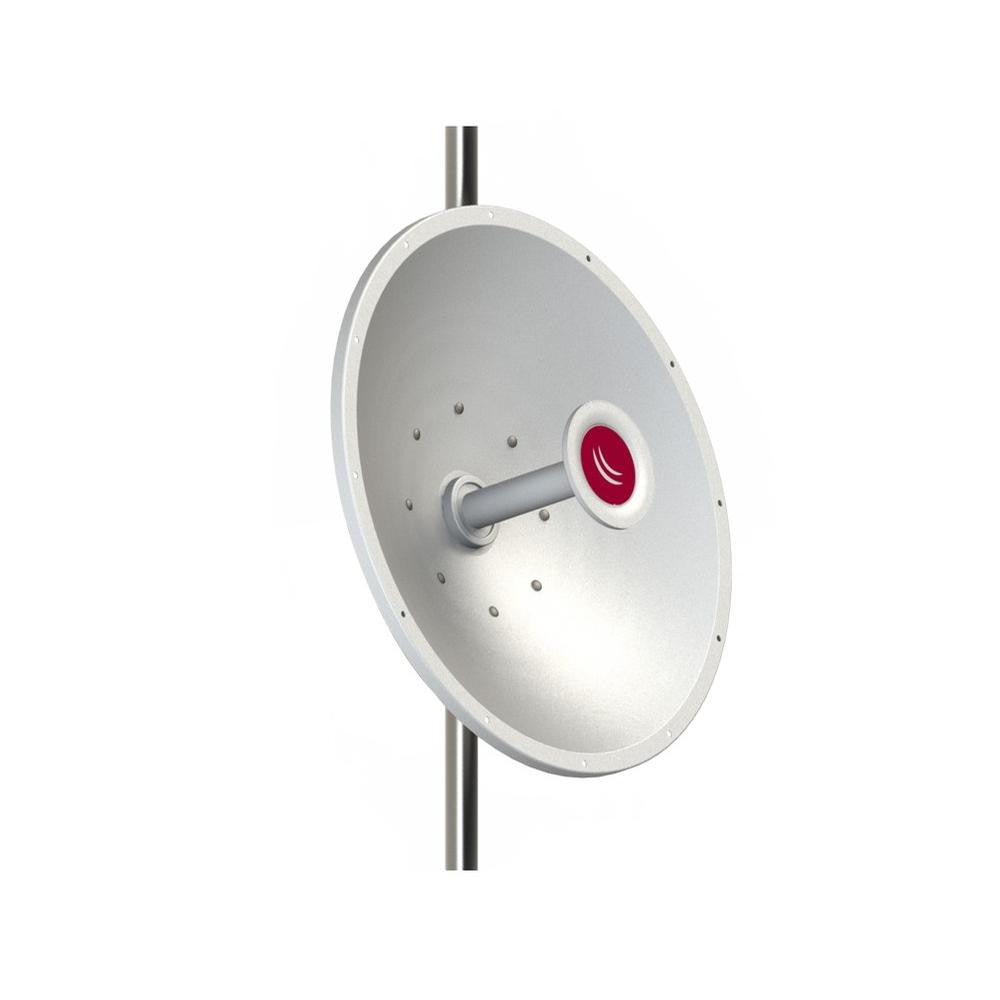

Mikrotik mANT30 30dBi Parabolic Dish Antenna for 5GHz
Product identifier
SKU
MTAD-5G-30D3
$163.67
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Standard type mount (MTAD-5G-30D3). The antenna come packaged with all necessary accessories and cables.

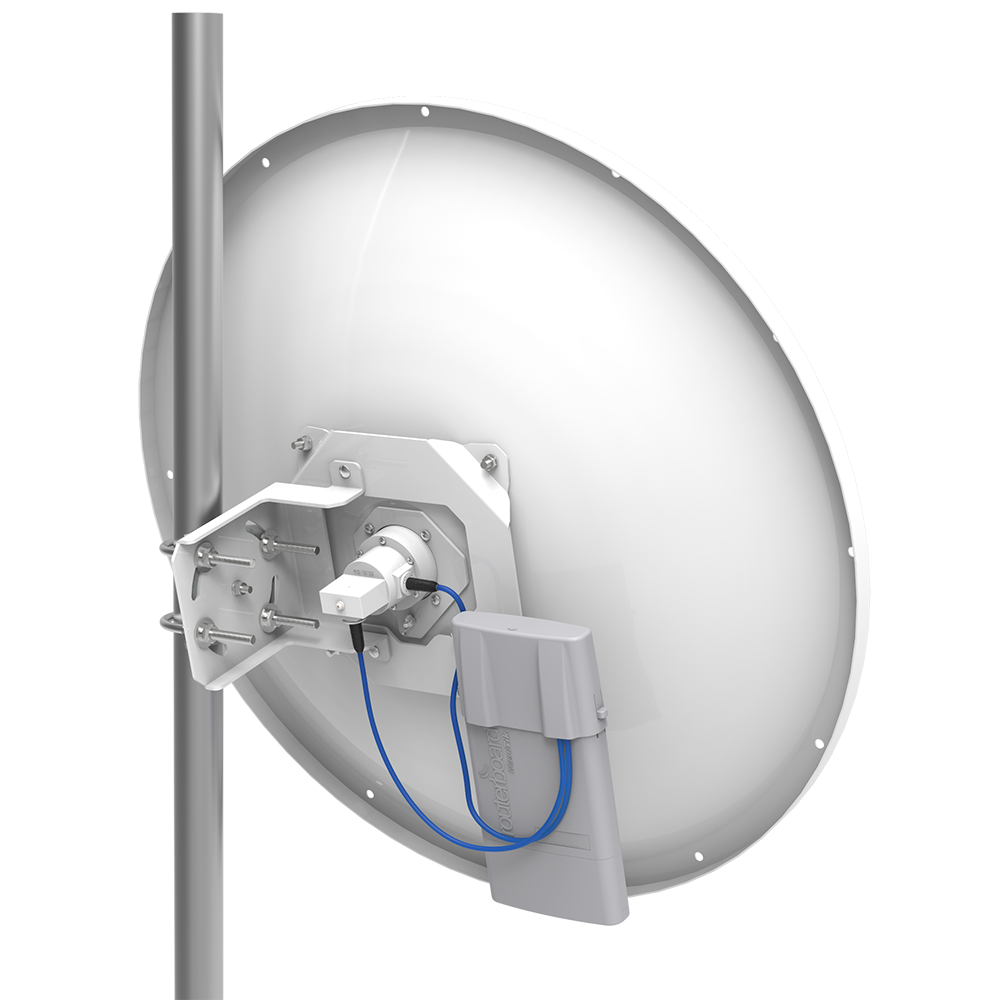

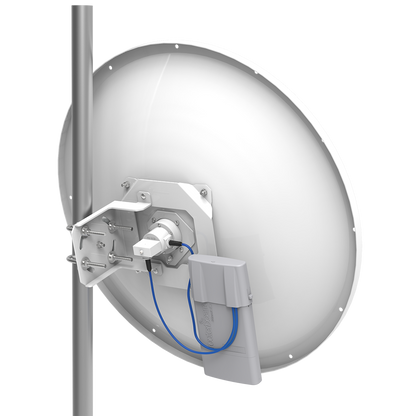

Note: Basebox wireless device pictured for illustrative purposes. It is not included
Technical Description
-
Product specifications
- Product code: MTAD-5G-30D3-PA
- Beamwidth: +/-2.5 deg
- Certification: CE, ROHS
- Connector: 2x RP-SMA Female (outside thread)
- Cross Polarization: >40 dB
- Diameter x Depth: 70 x 45cm (27.5 x 17.8in)
- Elevation adjustment range: +/- 15 deg
- Frequency Range: 4.7-5.875 GHz
- Front-to-Back Ratio: >30 dB
- Impedance: 50 ohms
- Outdoor Rating: ETSI EN 300 019-2-4
- Packaged size: 73x73x20cm (29x29x8in)
- Packaged weight: 8.4 kg (18,5)
- Polarization: Vertical and Horizontal
- Pole Mount Diameter Range: 3 to 10cm (1.2 to 3.9in)
- Port to Port Isolation: >40dB min
- Power Rating: 100W
- Reflector: Aluminum
- Standards: EN 302 326 DN1, DN2, DN3, DN5
- Tested ambient temperature: -50°C to 80°C(-49°F to 158°F)
- VSWR: ≤ 1.4 typ, ≤ 1.8 max
- Weight: 5.7kg (12.6 lbs)
- Wind Load (125 mph): 181.4kg (400 lbs), 50 kg at 40 m/s, 28 kg at 30 m/s
- Wind Survivability: 201kph (125mph)
